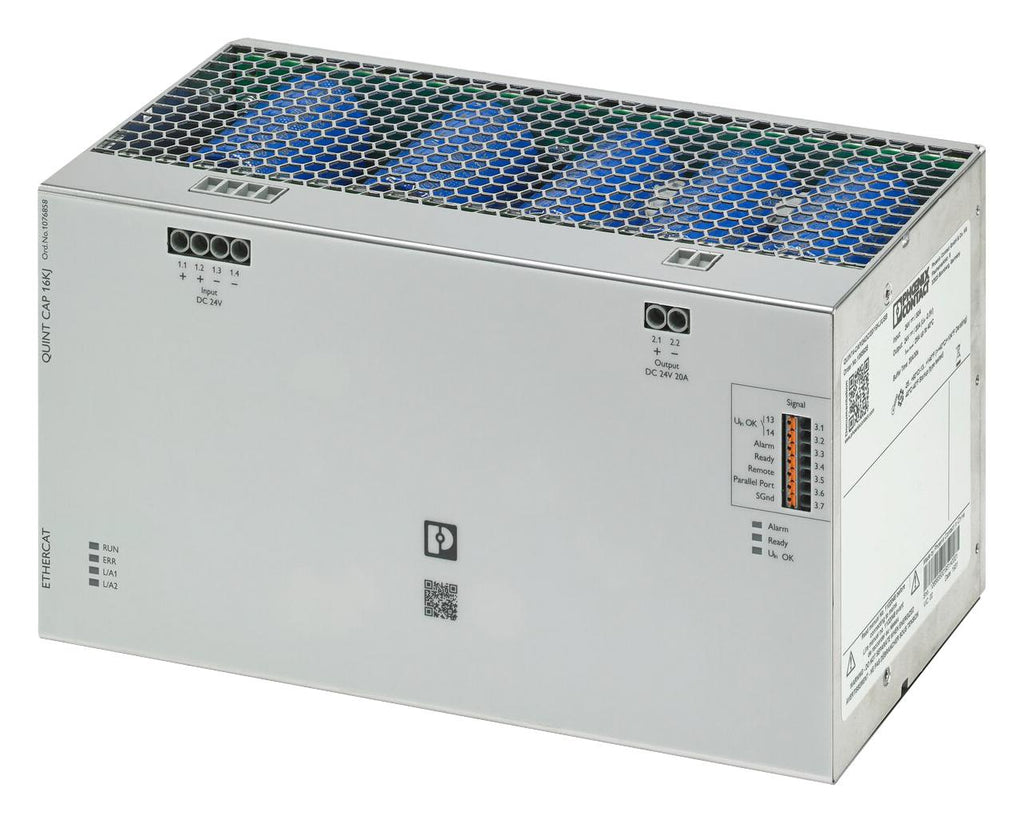

1076858 is a QUINT capacity module with EtherCAT communication interface. QUINT capacity module combines an electronic switchover unit and energy storage in the same housing. The capacity module stores the energy required to bridge mains failures in maintenance-free double-layer capacitors. Long mains buffering is possible depending on the required load current.
- Input: 24VDC, output: 24VDC/20A/16kJ incl. mounted UTA 107 universal DIN rail adapter
- Maximum energy efficiency
- High level of system availability due to high capacitor service life
- Communication interface for connection to superordinate controllers
- Static boost for starting difficult loads
- High degree of flexibility with temperature range of -25°C to +70°C and device start-up at -40°C
Product details
| For Use With:
Phoenix Contact QUINT Series Uninterruptible Power Supplies
|
| Accessory Type:
Capacity Module
|
| Product Range:
QUINT Series
|
Other details
| Brand |
PHOENIX CONTACT |
| Part Number |
1076858 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
