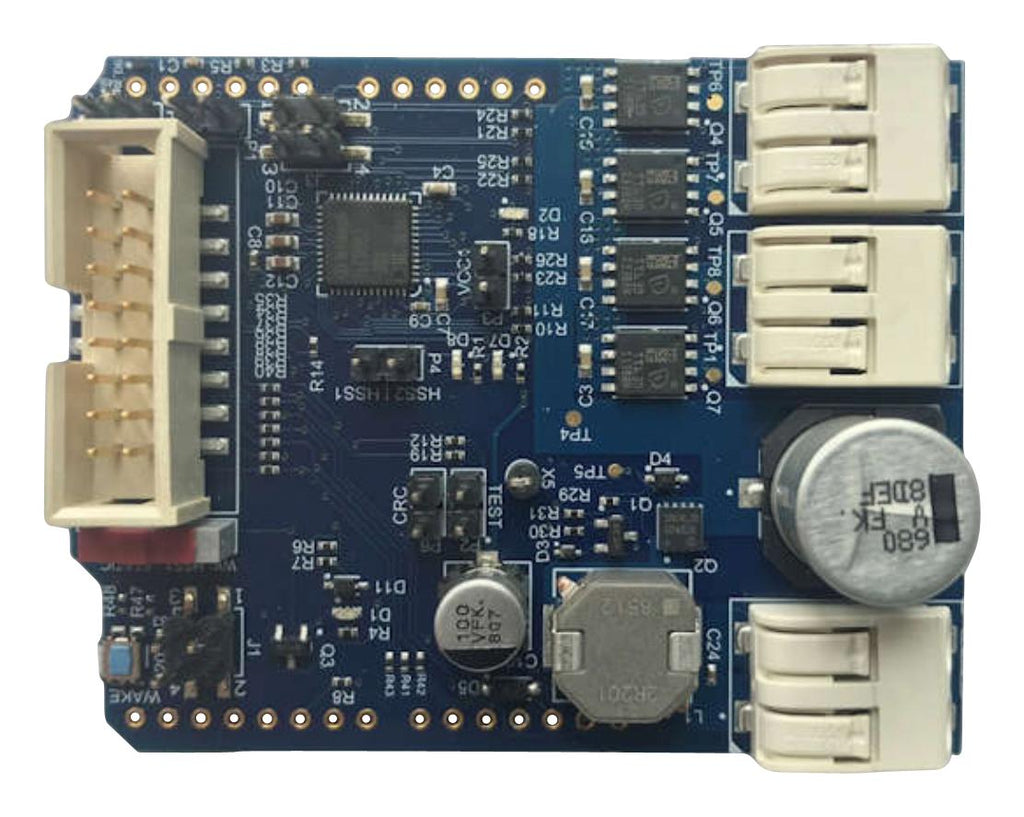

Evaluation board comes with one DC Motor Control IC of TLE9562-3QX. The purpose of this board is to provide a quick evaluation solution for customers' lab assessments. The evaluation board offers a unique two in one solution. It can connected via a UIO stick with the computer to evaluate its features via ConfigWizard (a graphical user interface) which can be found in the Infineon Toolbox. In addition, the evaluation board features an Arduino Shield interface for rapid prototyping.
- Operating voltage range 5.5-28V with 5V compatible logic input
- Integrated reverse polarity protection with on-board EMC filter
- Four integrated half-bridge MOSFETs (2 in 1 MOSFET package)
- Easy interfacing of CAN and LIN transceiver
- Miniaturization / shrink of the PCB area
- Arduino example codes available
