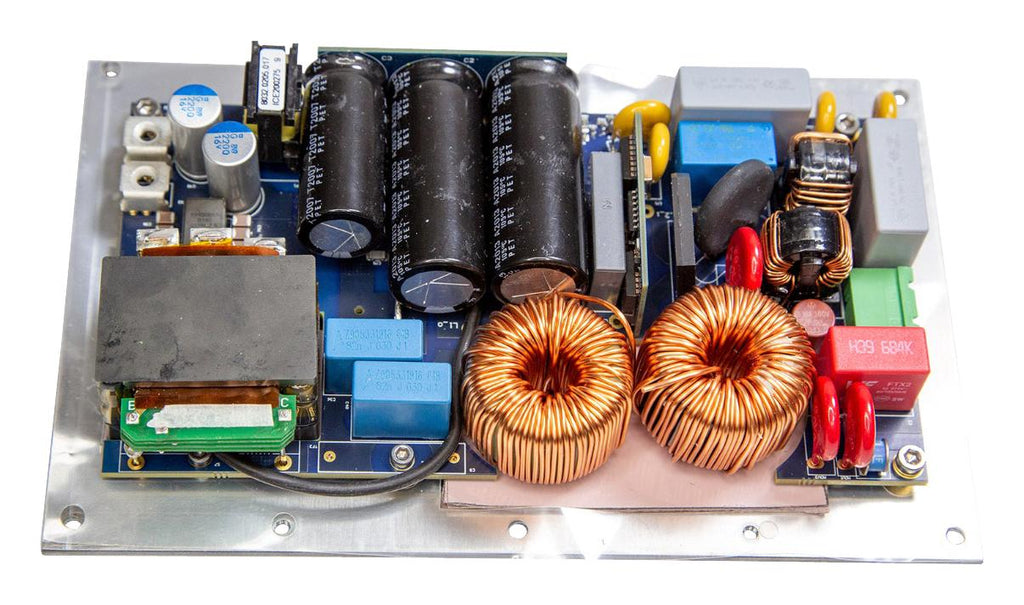

EVAL500W5GPSUTOBO1 is a 500W fanless power supply with CoolMOS� and fully analogue control. It demonstrates a power supply from AC (85-305 VAC) to DC (12 VDC) with a rated output power of 500W. The target applications of this demo board are power supplies for 5G telecom small cells. With a height of 27mm only, this PSU comes with high efficiency (96.5% peak efficiency at 230 VAC) and fanless cooling enabled by 600V CoolMOS� superjunction MOSFETs housed in the DDPAK package.
- Featuring top-side cooling 600V CoolMOS� superjunction MOSFETs
- Fully analogue control with ICE3PCS01G, ICE1HS01G and IR11688S
- Compact design in 25W/in³ form factor
- Surge protection included
Other details
| Brand |
INFINEON |
| Part Number |
EVAL500W5GPSUTOBO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
