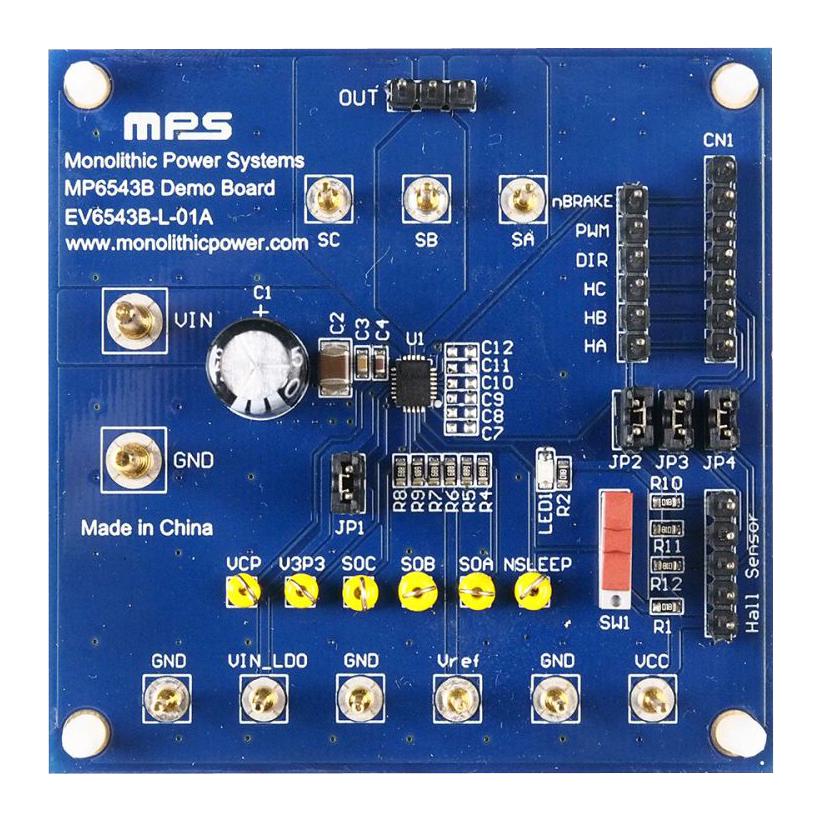

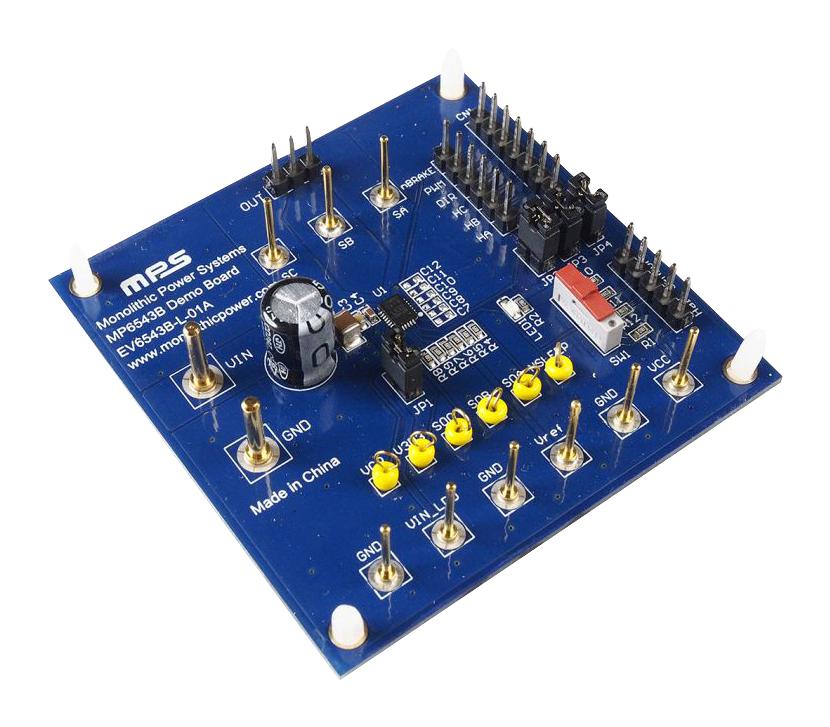

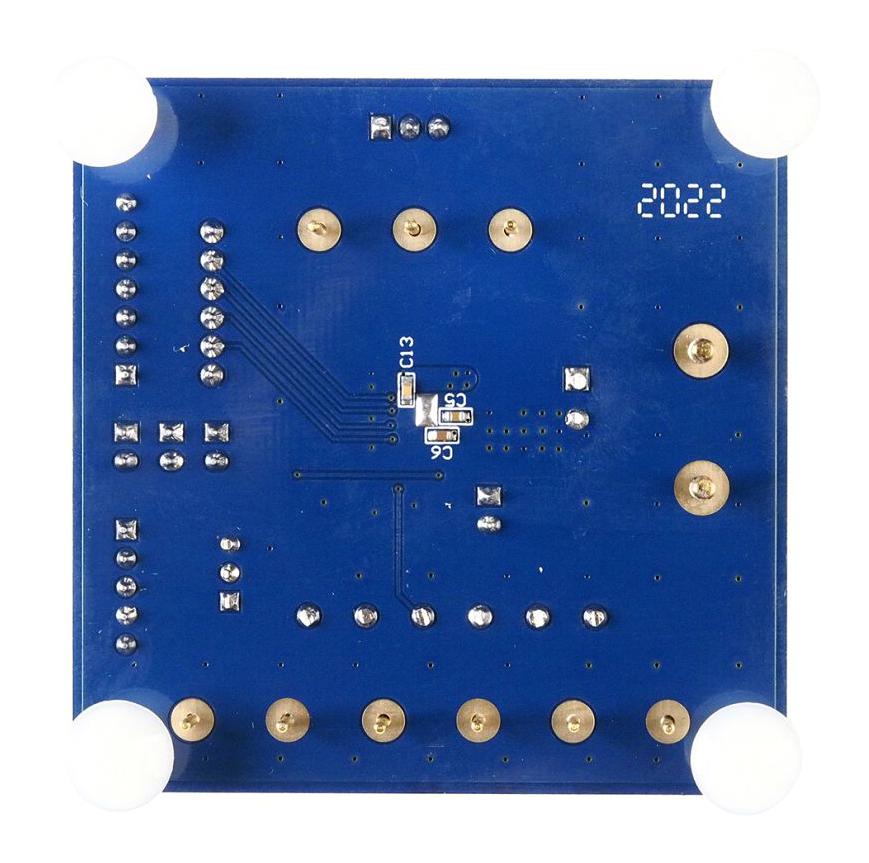

Evaluation board for the MP6543BGL, a three-phase, brushless DC motor driver. The EV6543B-L-01A operates from a supply voltage up to 12V. It integrates three half-bridges consisting of six N-channel power MOSFETs. The rotor position information is provided by the Hall sensors assembled in the motor. The driving control signals are generated by the external controller, such as an MCU or FPGA. The EV6543B-L-01A can deal with the Hall signals directly, so the external controller only needs to provide DIR and PWM signals to drive the motor.
- Wide 3V to 12V input voltage range
- Built-in 3.3V, 100mA LDO regulator
- Integrated bidirectional current-sense amplifiers
- Supports 100% duty cycle operation
- Hall logic input
- Overcurrent protection (OCP), overtemperature protection (OTP)
- Fault indication output
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
EV6543B-L-01A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
