Description

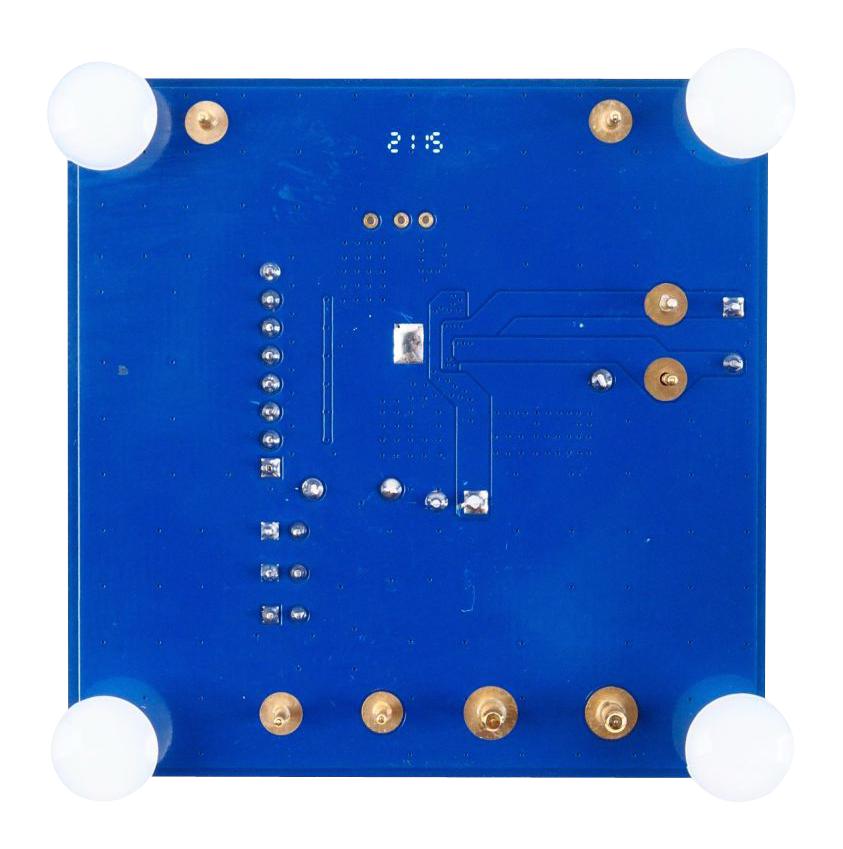

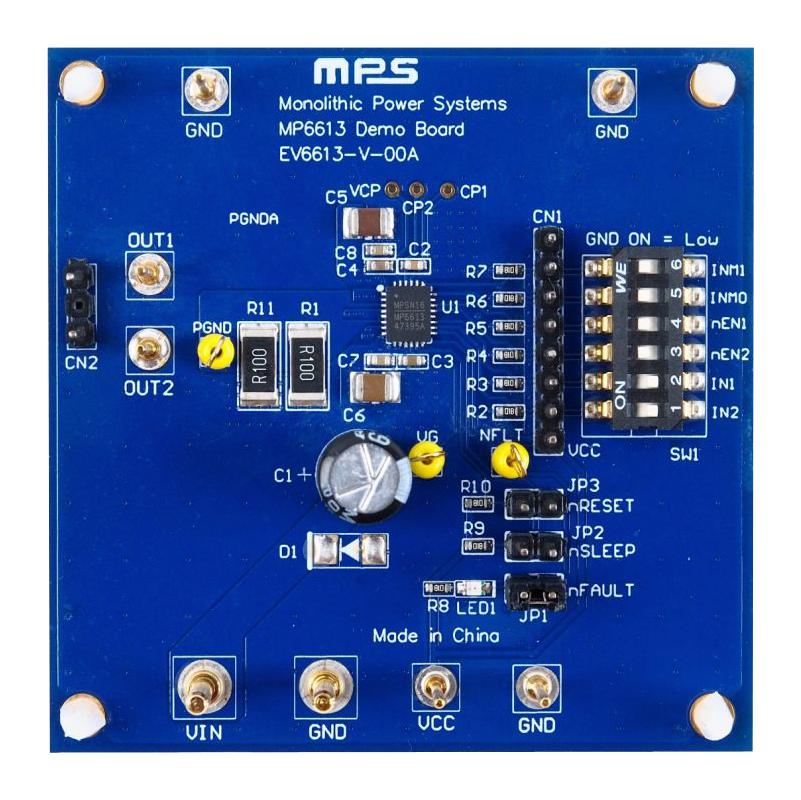

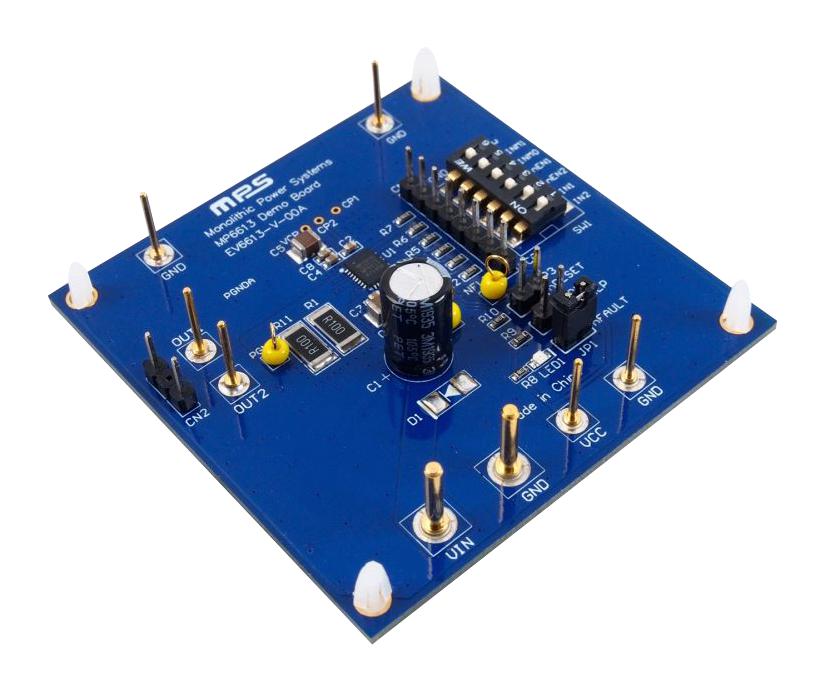

EV6613-V-00A is a 45V, 5A, simple H-bridge driver evaluation board. This evaluation board is designed to demonstrate the capabilities of the MP6613, a simple H-bridge motor driver. It can be used to drive brushed DC motors or other loads. The MP6613 operates from an input voltage (VIN) of up to 45V, and can deliver load current up to 5A. The MP6613 supports several control modes, which can be configured via the pins. The input control signals are generated on the board, or they come from an external controller via the connector on the board.
- 4.5V to 45V operating input voltage (VIN) range
- 5A maximum output current (IOUT-MAX)
- Single H-bridge driver
- Low 75mohm On Resistance (RDS(ON)) per MOSFET
- OCP, OVP, UVP protection function
- Over-temperature (OT) shutdown and fault indication output protection function
Footnotes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
| Application Sub Type: H-Bridge Motor Driver |
| Silicon Manufacturer: Monolithic Power Systems |
| Kit Application Type: Power Management |
| Silicon Core Number: MP6613GV |
| Kit Contents: Evaluation Board MP6613GV |
| Product Range: - |
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | EV6613-V-00A |
| Quantity | Each |
| Technical Data Sheet EN |  |
