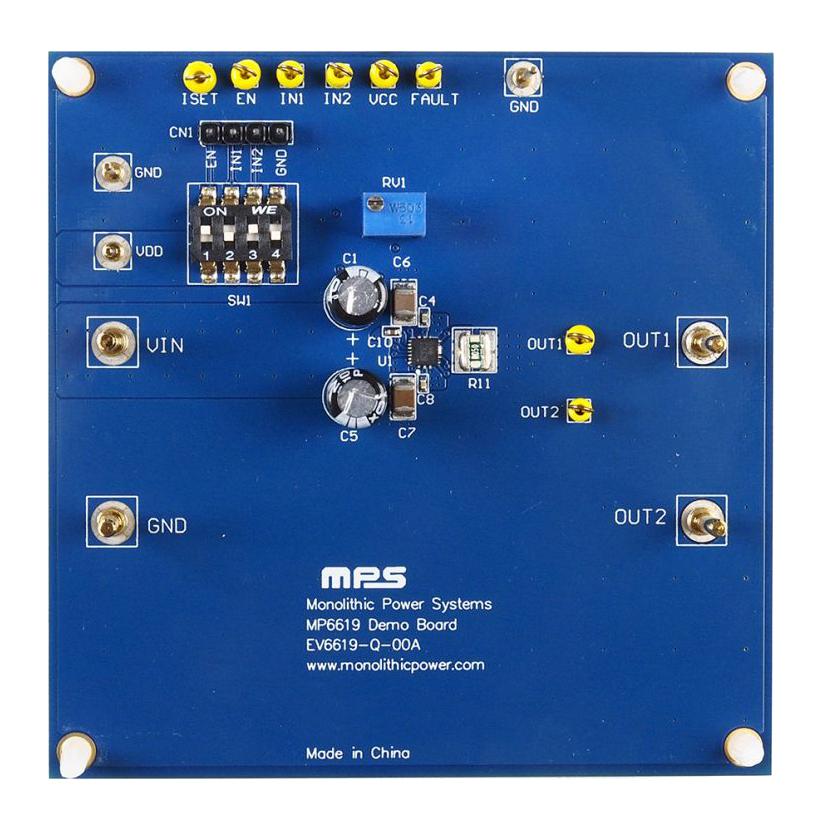

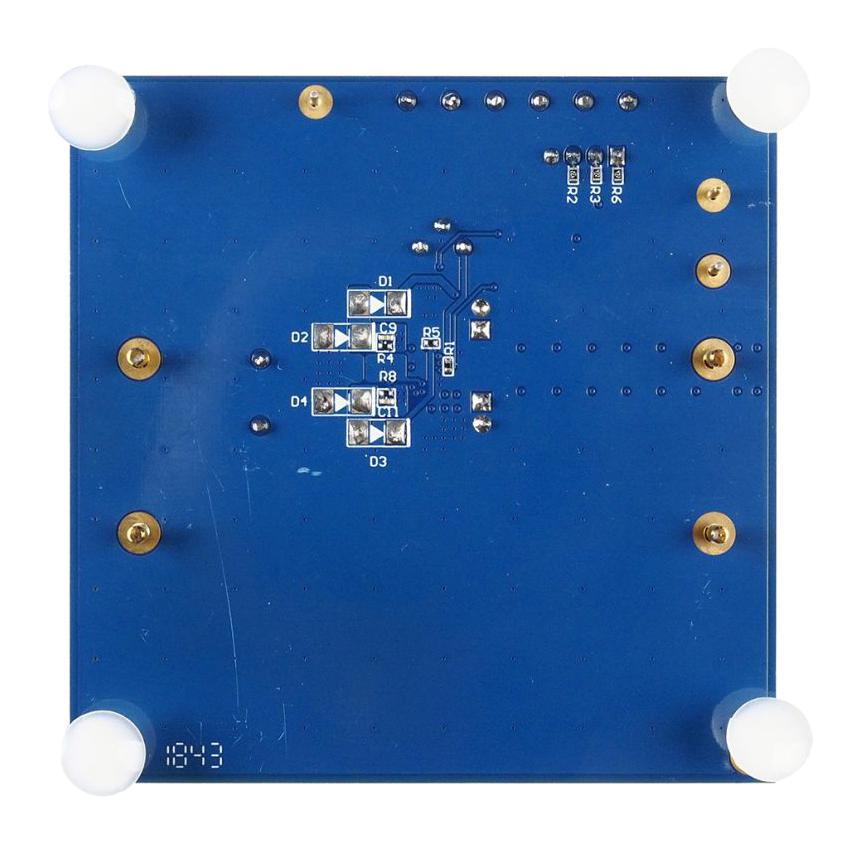

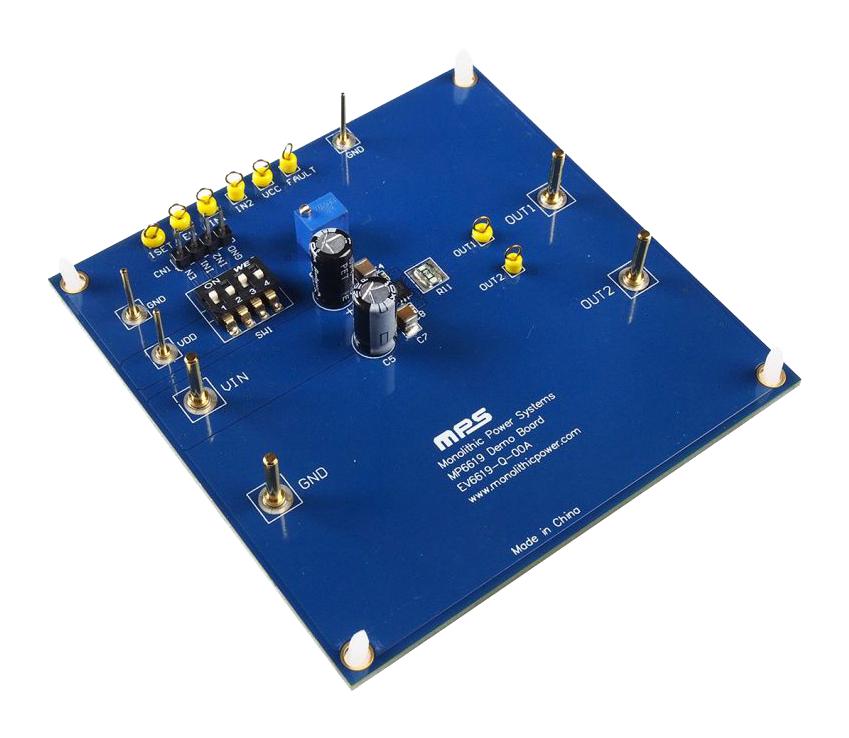

EV6619-Q-00A is an evaluation board for the MP6619, an H-Bridge motor driver that operates from a supply voltage up to 28V and delivers a motor current up to 5A. The MP6619 has cycle-by-cycle current regulation and limiting. It is typically used to drive a brushed DC motor. Full protection features include overcurrent protection (OCP), overvoltage protection (OVP), overtemperature protection (OTP) and undervoltage lockout (UVLO). Typical applications includes brushed DC motors and solenoids/actuators.
- Wide 5.4V to 28V input voltage range
- 65mohm RDS(ON) for each MOSFET of H-Bridge
- 100% duty cycle operation of H-Bridge
- 1µA shutdown current
- IC is available in a QFN-19 (3mm x 3mm) package
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size. Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
EV6619-Q-00A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
