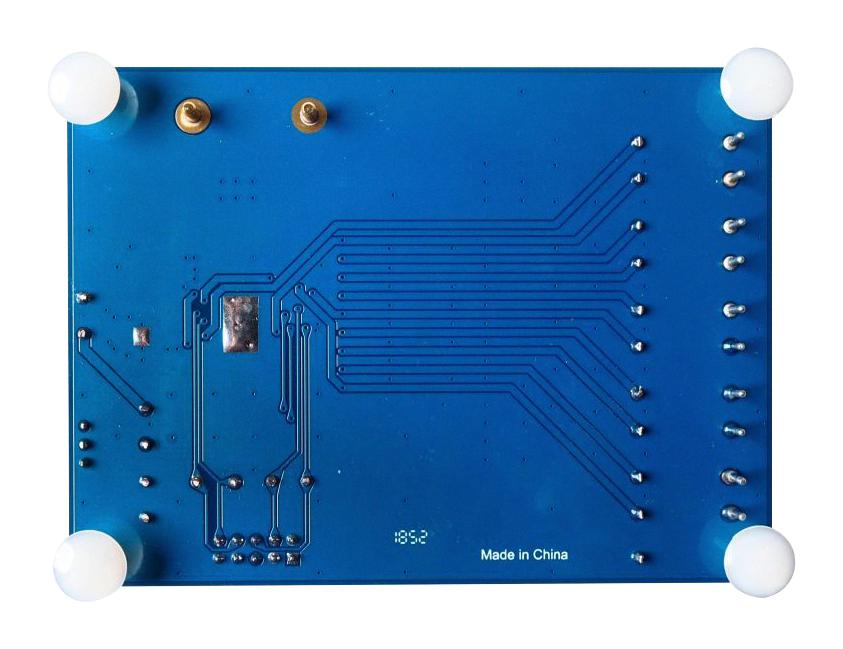

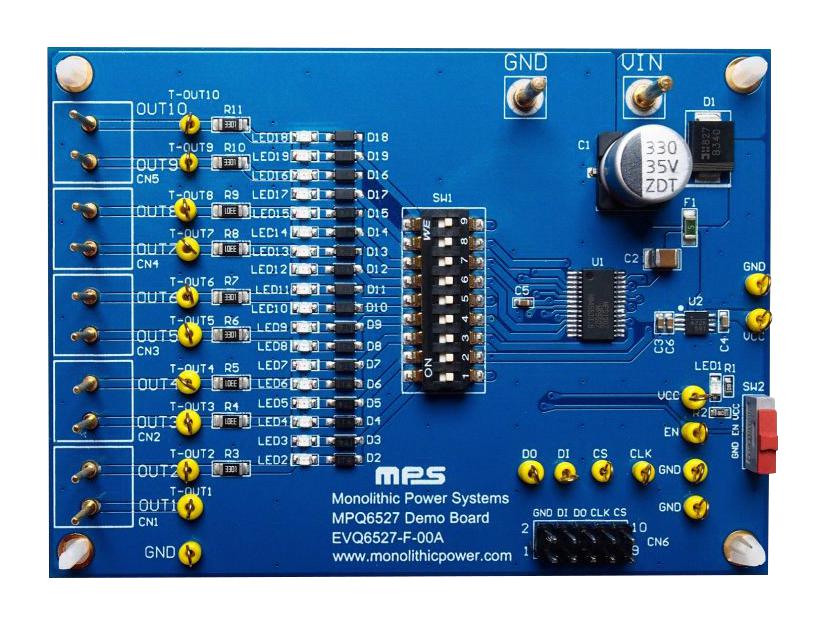

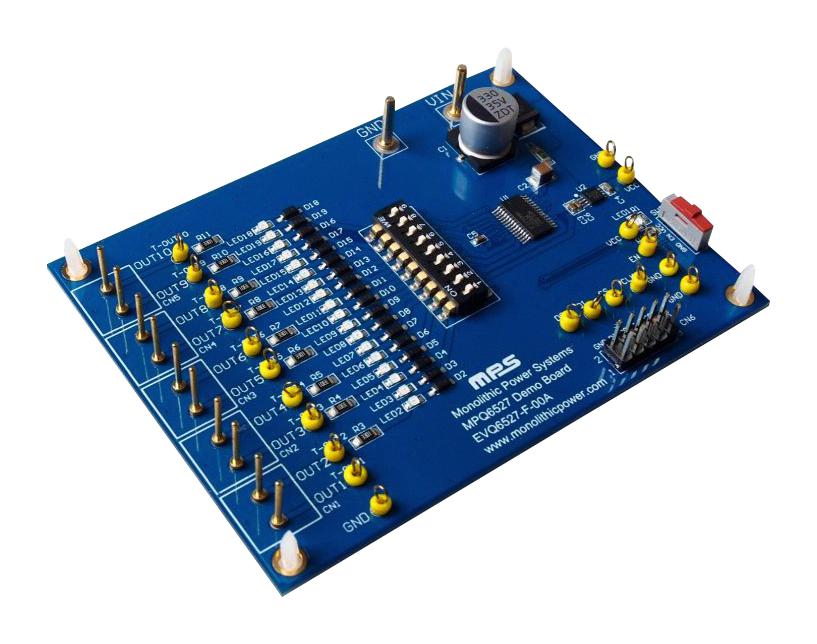

EVQ6527-F-00A is an evaluation board designed to demonstrate the capabilities of the MPQ6527-AEC1, a ten-channel half-bridge gate driver with serial input control. The MPQ6527-AEC1 can achieve up to 0.8A of output current (IOUT) across a wide 5.5V to 40V input voltage (VIN) range. The ten half-bridges can be controlled separately via a standard serial data interface, and each half-bridge has various diagnostic functions. The MPQ6527-AEC1 has very low quiescent current (IQ) in standby mode. MPQ6527-AEC1 requires a minimum number of readily available, standard external components, and is available in a TSSOP28-EP package. Typical applications include motor drivers, telecom half-bridge power supplies and avionics DC/DC converters.
- Wide 5.5V to 40V operating input voltage (VIN) range
- Up to 0.8A output current (IOUT)
- Typical 1.3R HS-FET and LS-FET RDS(ON)
- Low quiescent current (IQ) in standby mode vs. total temperature range
- Serial data interface
- Daisy chaining possible
- Shorted output, open-load detection, over-temperature, over-voltage, under-voltage
Footnotes MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
EVQ6527-F-00A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
