This is a

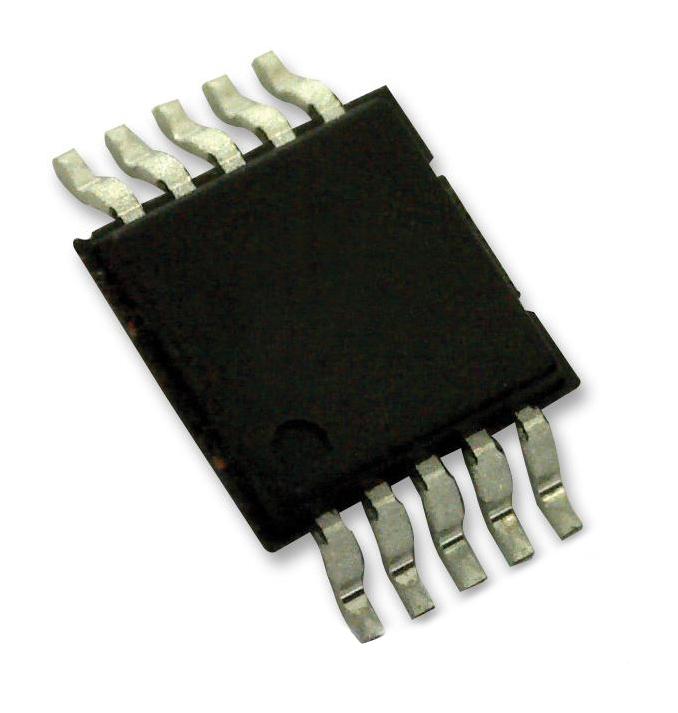

TPS54240DGQR DC-DC Switching Buck Step Down Regulator , Adjustable, 3.5V-42Vin, 2.5 MHz, 2.5Aout, MSOP-10 product from TEXAS INSTRUMENTS with the model number TPS54240DGQR
Product details
| Topology |
Buck (Step Down) |
| Input Voltage Min |
3.5V |
| Input Voltage Max |
42V |
| No. of Outputs |
1Outputs |
| DC / DC Converter IC Case |
MSOP |
| No. of Pins |
10Pins |
| Output Current |
2.5A |
| Output Voltage Min |
800mV |
| Output Voltage Max |
39V |
| Switching Frequency |
2.5MHz |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
- |
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
TPS54240DGQR |
| Quantity |
Each (Supplied on Cut Tape) |
