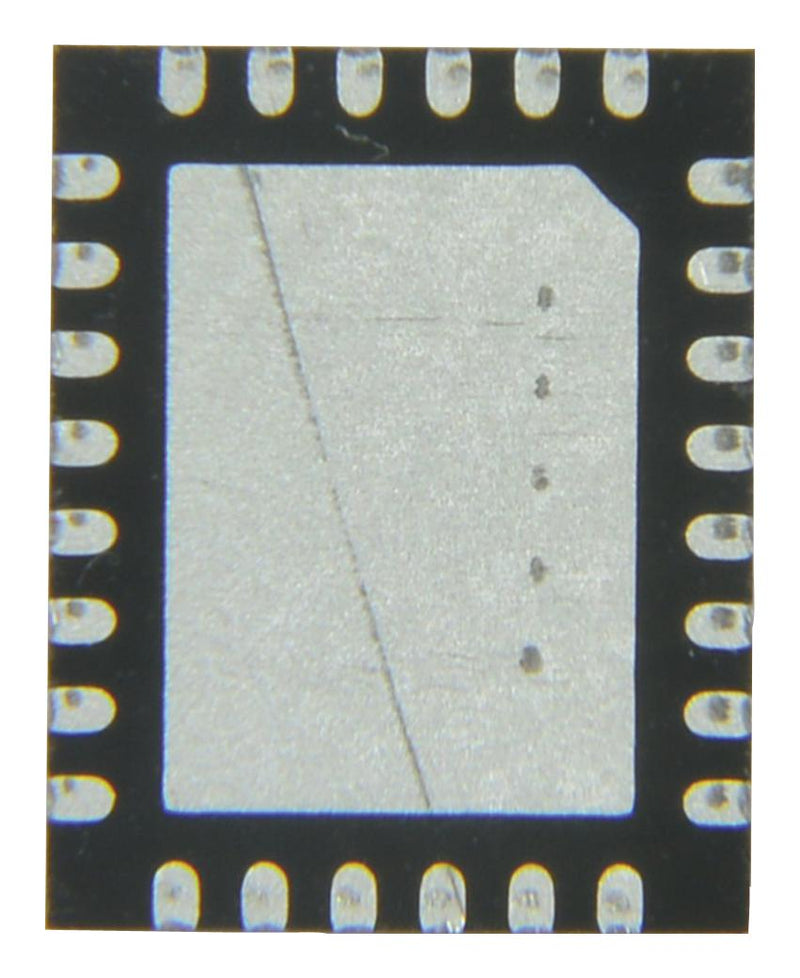

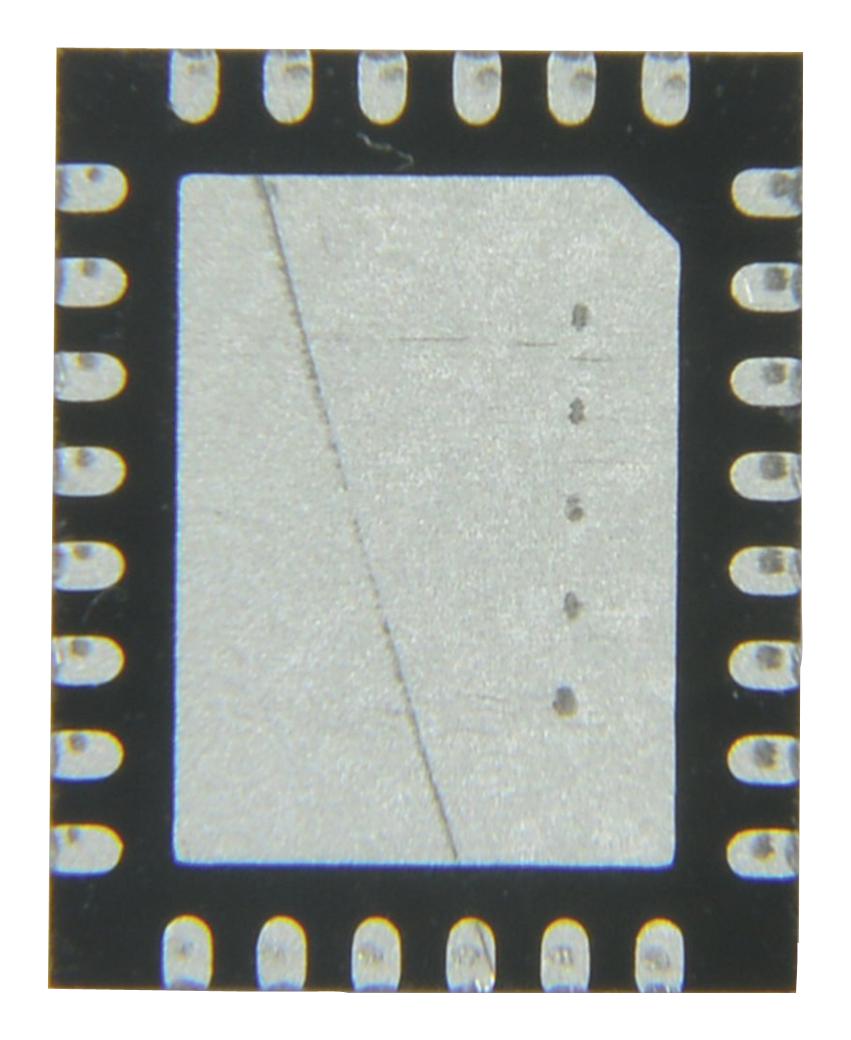

- Fully-integrated 802.3af/at compliant PoE PD interface in 28 pin QFN package
- Peak current mode flyback controller
- 100V, 0.48ohm PD integrated pass switch
- 120mA PD inrush current, 840mA PD operation current limit
- Auxiliary adapter O-ring power supply
- PD power good and type-2 PSE indicator
- 12V, 1A, flyback MOSFET gate driver
- Pulse skipping operation in light load
- 30KHz to 400KHz programmable switching frequency
- Frequency synchronizing from 80KHz to 400KHz
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP8008GV-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
