Description

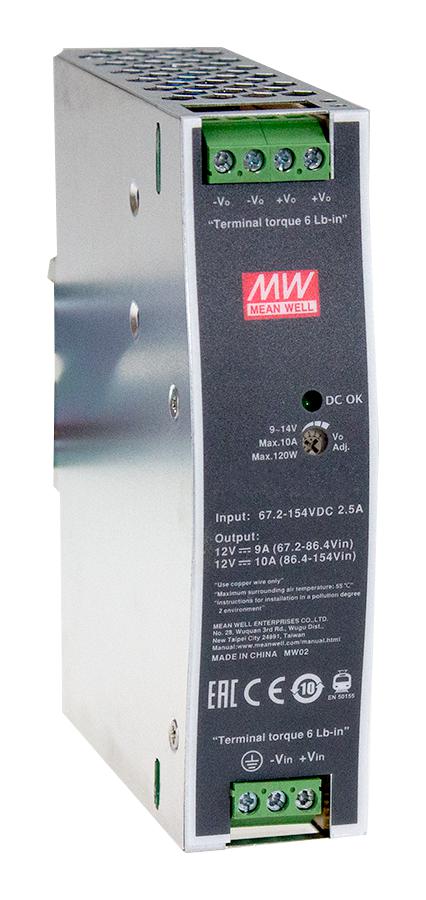

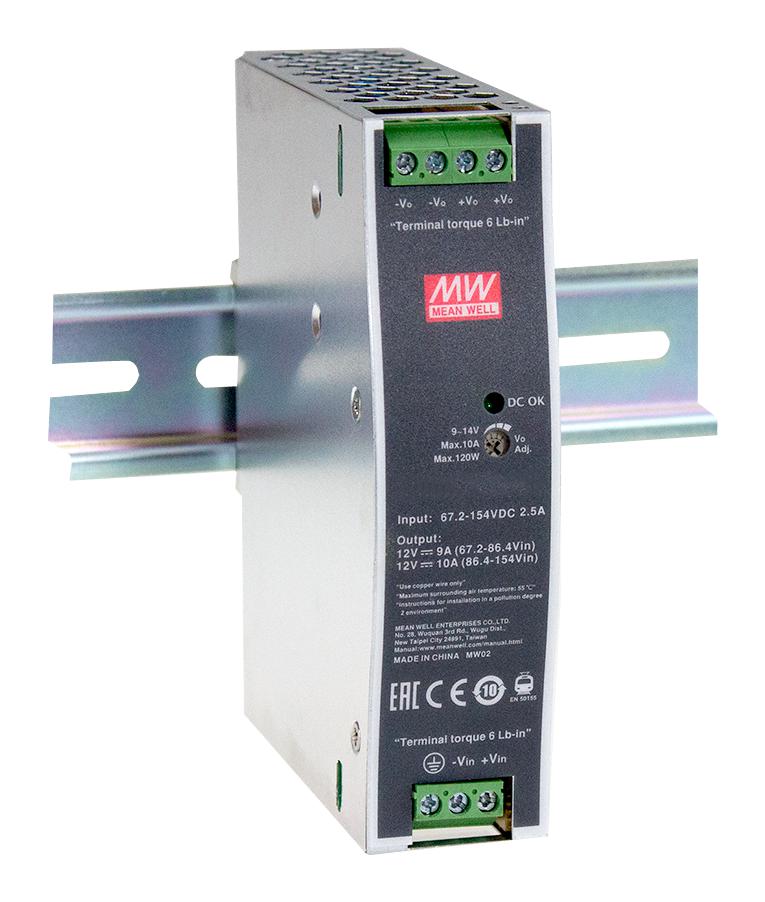

This is a DC/DC Converter, ITE & Railway, 1 Output, 120 W, 12 V, 10 A product from MEAN WELL with the model number DDR-120B-12
Product details
| Power Supply Applications | ITE & Railway |
| No. of Outputs | 1 Output |
| Output Power Max | 120W |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 10A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | DDR-120 Series |
| Input Voltage DC Min | 16.8V |
| Input Voltage DC Max | 33.6V |
| DC / DC Converter Mounting | DIN Rail |
| DC / DC Converter Output Type | Fixed, Adjustable |
Other details
| Brand | MEAN WELL |
| Part Number | DDR-120B-12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
