| ₹ 716.85 includes GST and import duties. | |
| B2B customers can avail ₹ 109.32 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

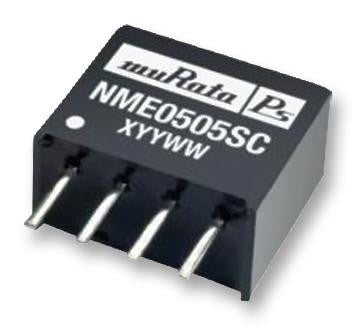

The NME0505SC from Murata is an isolated, 1W, single output DC to DC converter in SIP package. It is particularly suited to isolate or converting DC power rails. The galvanic isolation allows the device to configure an isolated negative rail in systems where only positive rails exist.
- Nominal input voltage is 5VDC
- Output voltage is 5VDC
- Output current is 200mA
- Input current at rated load is 289mA
- Efficiency is 69%
- 1KVDC isolation
- UL 94V-0 package material
- Fully encapsulated with toroidal magnetics
- No external components required
- No heatsink required
Applications
Power Management, Industrial
- :
- 1W
- :
- 4.5V
- :
- Through Hole
- :
- -
- :
- -
- :
- 11.48mm
- :
- 6mm
- :
- NME Series
- :
- SIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- Fixed
- :
- 1 Output
- :
- 5.5V
- :
- 200mA
- :
- 10mm
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 4.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 11.48mm |
| Width | 6mm |
| Product Range | NME Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| DC / DC Converter Output Type | Fixed |
| No. of Outputs | 1 Output |
| Input Voltage DC Max | 5.5V |
| Output Current - Output 1 | 200mA |
| Height | 10mm |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NME0505SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 702.51 |
| 3-5 | ₹ 695.34 |
| 5-10 | ₹ 681.01 |
| 10+ | ₹ 666.67 |
Bulk discount will be automatically applied during checkout based on quantity.
