| ₹ 1834.68 includes GST and import duties. | |
| B2B customers can avail ₹ 279.79 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

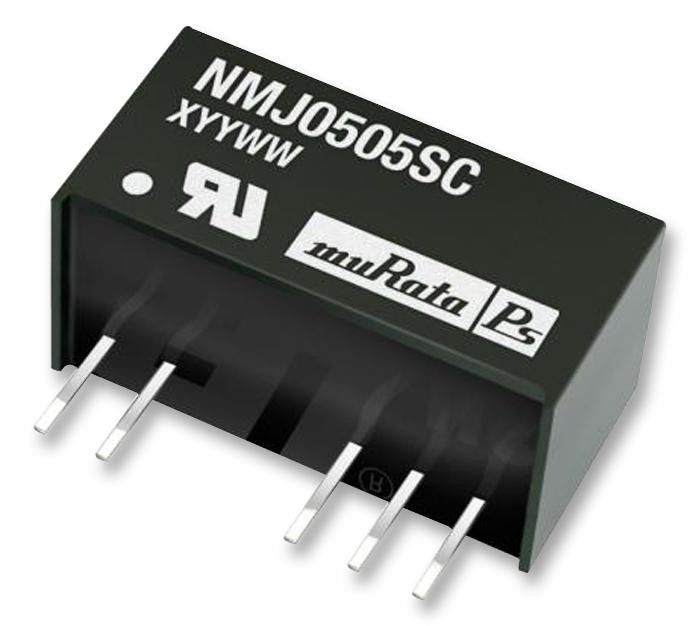

The NMJ0505SAC is a 1-output board-mount isolated DC to DC Converter suitable for applications where safety and miniaturisation are of paramount importance. The NMJ series 1W DC/DC converter offers pin and functionality compatibility with the NMV series. Isolation barrier approved for supplementary/reinforced insulation.
- 0.42W/cm³ Power density
- No heatsink required
- 1.91cm² Footprint
- 5.2kVDC Isolation
- Internal SMD construction
- Fully encapsulated with toroidal magnetics
- MTTF up to 13 million hours
- -40 to +60°C Operating temperature range
Applications
Power Management
- :
- 1W
- :
- 4.5V
- :
- Through Hole
- :
- -
- :
- -
- :
- 19.5mm
- :
- 9.8mm
- :
- NMJ Series
- :
- SIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- Fixed
- :
- 1 Output
- :
- 5.5V
- :
- 200mA
- :
- 12.5mm
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 4.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 19.5mm |
| Width | 9.8mm |
| Product Range | NMJ Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| DC / DC Converter Output Type | Fixed |
| No. of Outputs | 1 Output |
| Input Voltage DC Max | 5.5V |
| Output Current - Output 1 | 200mA |
| Height | 12.5mm |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NMJ0505SAC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1797.99 |
| 3-5 | ₹ 1779.64 |
| 5-10 | ₹ 1742.95 |
| 10+ | ₹ 1706.25 |
Bulk discount will be automatically applied during checkout based on quantity.
