Description

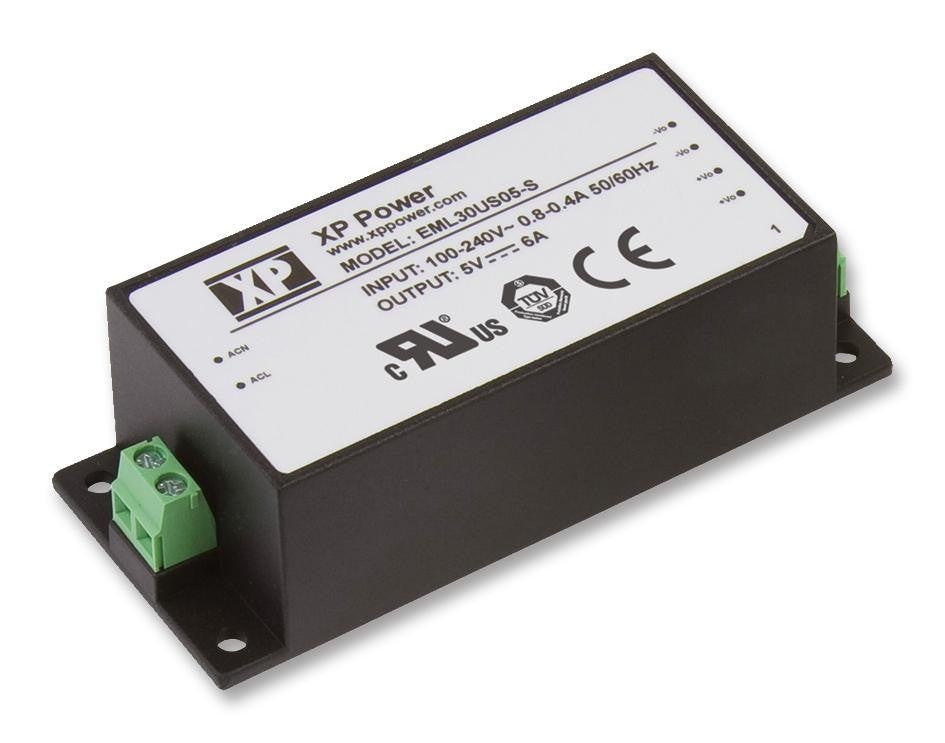

The EML30 series single-output open-frame and encapsulated AC-DC Power Supply. With approvals to world-wide medical safety standard, compliance with class B for both conducted and radiated emissions and a 130%, 30s peak load capability, this class II isolation parts benefit system designers with easy integration into the latest healthcare products and applications.
- Compact size
- Peak load capability
- 0.3W No load input power
- �1% Initial set accuracy
- 12ms Holdup time (at full load and 115VAC)
Applications
Power Management
Product details
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 30W |
| No. of Outputs | 1Outputs |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Input Voltage AC Max | 264V |
| Input Voltage AC Min | 85V |
| Product Range | EML30 Series |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| Output Voltage - Output 4 | - |
| Output Current - Output 1 | 2.5A |
Other details
| Brand | XP POWER |
| Part Number | EML30US12-S |
| Quantity | Each |
| Technical Data Sheet EN |  |
