- Illuminates Anywhere in the Rack
- Vertical and Horizontal Mounting
- Adjustable-Angle Light Bar
- Includes Multiple Power Connections
- Low-Profile, Unobtrusive Design

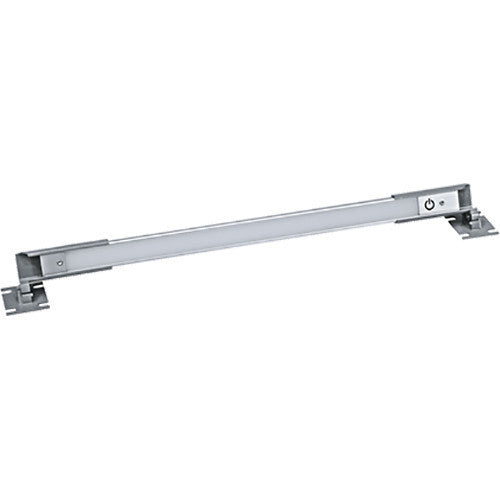

The Single LED Work Light with Power Supply from Middle Atlantic is a 1 RU user-focused rack lighting solution offering unparalleled visibility when mounted. Designed with flexible mounting and positioning capabilities, this full-rack lighting fixture has an adjustable width from 18.2 to 21.5" and provides premium illumination where the user needs it. A single light is also included with a 59" power cord and multiple international power-supply adapters for US, BS, SAA, and EU application.
- Complete flexibility to illuminate anywhere in the rack
- The rack light has both vertical- and horizontal-mounting capabilities to provide light where it's needed, or where space is available
- Adjustable-angle light bar can be positioned so that its bright-white LEDs will maximize full-rack-height illumination
- Ships with multiple power connections for expanded international application
- Low-profile, unobtrusive design won't impose on the installation and serviceability of the enclosure
UPC: 656747275128
Input Voltage Range | 90 to 260 VAC |
Input Frequency Range | 50/60 Hz |
Max Current Draw | 800 mA @ full load |
Nominal Output Voltage | 12 VDC |
DC Output Voltage | Range: 11.4 to 12.6 VDC |
Short Circuit Protection | Yes |
Output Connector | DC: 0.14 x 0.05 x 0.47" (3.5 x 1.35 x 12 mm) |
Safe Rating | UL, cUL, CE |
EMI Standard | Adapter and Lights: FCC Class-B, CE |
Efficiency | Meets US DOE Level VI requirements |
Operating Temperature | 0 to 40°C (32 to 104°F) |
Humidity (Relative) | 0 to 90% Non-condensing |
Dimensions (D x H x W) | 1.8 x 3.5 x 1.5" (45.5 x 88.0 x 38.0 mm) |
Weight | 0.39 lb (175 g) |
Packaging Info |
Package Weight | 1.8 lb |
Box Dimensions (LxWxH) | 21.8 x 6.9 x 2.8" |
In the Box
Middle Atlantic Single LED Work Light with Power Supply
- Multiple International Power Connectors
- Limited 3-Year Warranty
