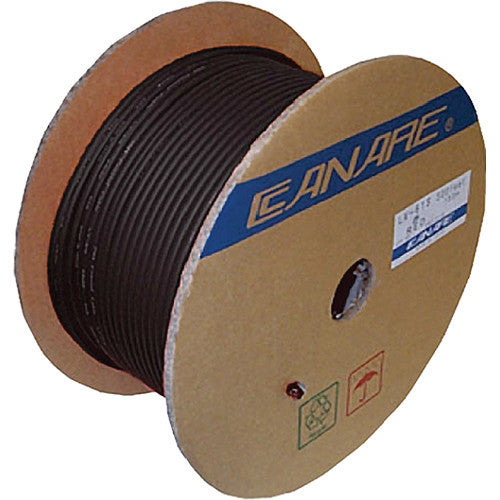

Canare LV-61S Video Coaxial Cable (500' / Black)

Roll over image to zoom in

Canare LV-61S Video Coaxial Cable (500' / Black)


	₹ 39110.0 includes GST and import duties.
	B2B customers can avail ₹ 5964.28 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Canare
SKU:	8138198416
MPN:	LV-61S

Share this product

Highly Flexible
Solid Polyethylene Dielectric
Tightly Woven Braid Shield
Non-Glare Finish Black PVC Jacket

The Canare LV-61S Video Coaxial Cable (500� / Black) is a lightweight, flexible RG59B/U equivalent cable that is perfect for almost all video facility equipment interfacing, ENG/OB work, and video patch cord assemblies. The smooth non-glare finish PVC jacket is black in color and remains flexible even in sub-zero weather.

Stays flexible even in sub-zero weather conditions

Flexible, stranded bare copper center conductor

Dielectric strips away clean from conductor

Solid polyethylene dielectric

Ideal for broadcast transmission, digital and analog, ENG/EFP, and inter-rack wiring applications

Length	500' (153 m)
Impedance	75 ?
Outer Diameter	Nominal: 0.24' (6.1 mm) Conductor: 0.02" (0.6 mm) Insulation: 0.14" (3.6 mm)
PVC Jacket Thickness	0.04' (1 mm)
Connector Type	24 AWG
Cable	RG59 type
Insulation	Polyethylene Dielectric Dielectric Strength: 1000 VAC/per minute Insulation Resistance: >1000 M? per 3' (0.91 m)
Brittle Point	-22°F (-30°C)
Conductor	AWG (AC): 24 (7 / 7.88 quantity / mm)
Shield Material Coverage	AC >95%
Conductor D.C.R.	At 1000': <25.9 ? At 100 m: <8.5 ?
Shield D.C.R	At 1000': <4 ? At 100 m: <1.3 ?
Return Loss	? 20 dB
Nominal Capacitance	At 1 KHz: 21 pF/ft (67 pF/m)
Velocity of Propagation	75 ?
Transmission Rate	SD 66% @270 Mbps
Nominal Attenuation	At 10 MHz: 1.3 dB/100' (4.2 dB/100 m) At 50 MHz: 2.7 dB/100' (9 dB/100 m) At 100 MHz: 4.1 dB/100' (13.3 dB/100 m) At 150 MHz: 5 dB/100' (16.3 dB/100 m) At 200 MHz: 5.7 dB/100' (18.8 dB/100 m) At 400 MHz: 8.1 dB/100' (26.6 dB/100 m) At 700 MHz: 10.7 dB/100' (35.1 dB/100 m) At 900 MHz: 12.1 dB/100' (39.8 dB/100 m) At 1 GHz: 12.8 dB/100' (42 dB/100 m)
Weight	19 lb (8.6 kg)

Packaging Info
Package Weight	18.2 lb
Box Dimensions (LxWxH)	11.5 x 11.5 x 7.0"

In the Box

Canare LV-61S Video Coaxial Cable (500' / Black)

1-Year Warranty
