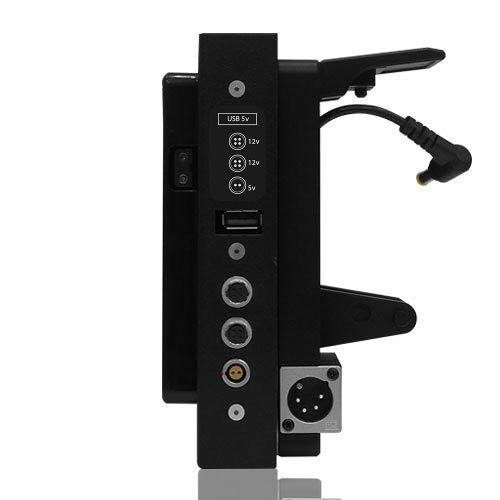

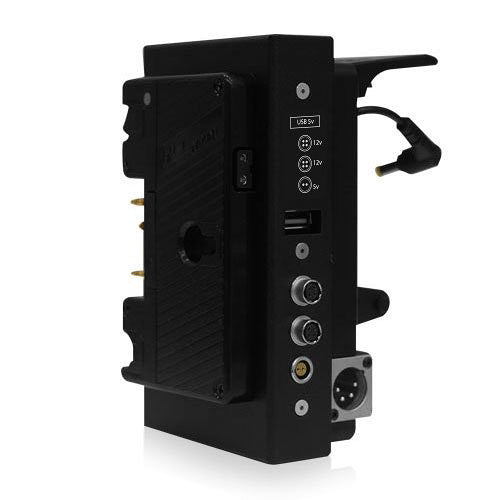

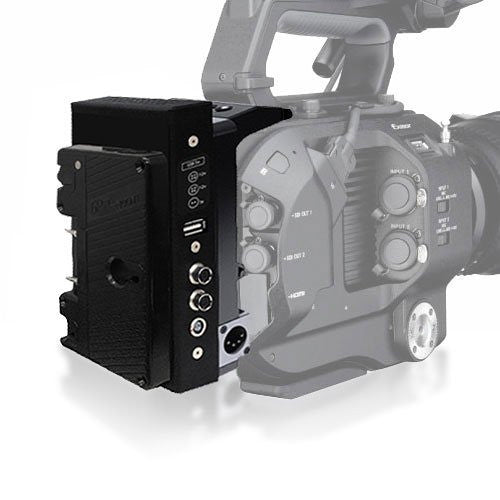

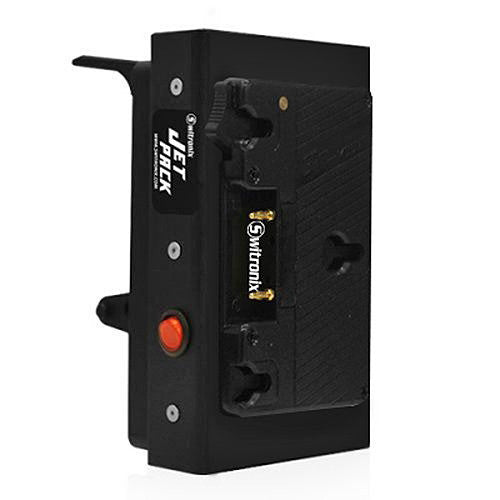

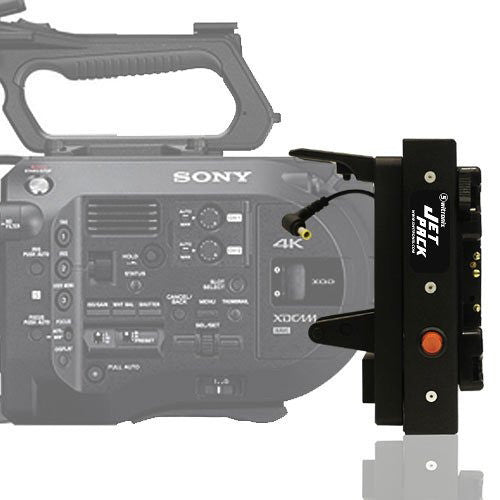

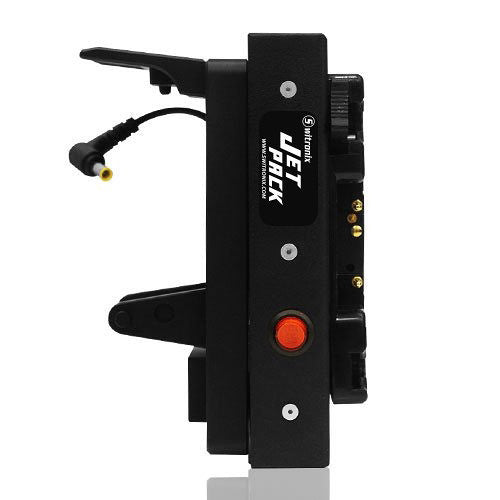

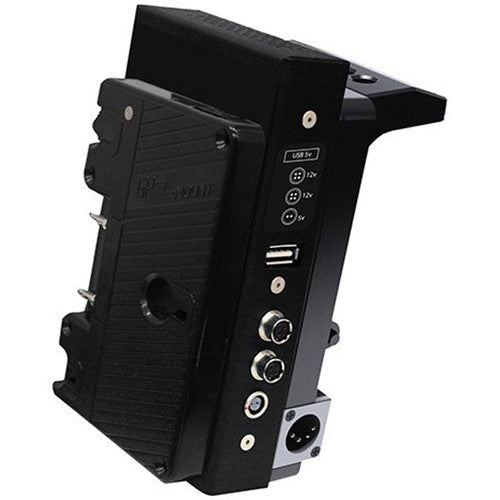

The JP-A-FS7 Gold-Mount JetPack from Core SWX is a power connection option with various power outputs for your Sony FS7 camera. The Gold-mount bracket enables the JetPack to connect directly to the back of your Sony camera, as an alternative to the XDCA-FS7 extension unit. The compact all-aluminum design reduces weight while still handling wear and tear. The JetPack has three 1/4"-20 mounting points, as well as an optional "cheese" back-plate which offers additional 1/4"-20 and 3/8"-16 tapped holes.
- M3 screw pattern on back for optional cheese plate
- Two power-tap outputs (for monitors, lights, etc.)
- One USB output (for a Redmote, Tascam DR-05, or other USB device)
- One 5V LEMO output (for Zoom, AJA, etc.)
- Two 12V regulated Hirose 4-pin outputs (for HDV Cameras, DSLRs, etc.)
- One 4-pin XLR power input
- Made in USA
UPC: 184323002887
Connectors | 4-pin XLR input (11 - 17 VDC) Power pin input (11 - 17 VDC, unregulated) 2 x P-Tap output (11 - 17 VDC, unregulated) USB output (5 V, 1 A) 2-pin 0-bit LEMO (5 V, 2.5 A) 2 x 4-pin HRS (12 V, 2.5 A) The JetPack will charge an iPad, but slower than the Apple brand charger. "Not charging" will appear on the iPad screen due to the fact that 2.1 A of current is not being supplied to the device. |
Mounting | 1/4"-20 threads, M3 screw pattern |
Dimensions | 8.00 x 3.50 x 1.88" (20.3 x 8.9 x 4.8 cm) |
Weight | 1.7 lb (771.1 g) |
Packaging Info |
Package Weight | 1.85 lb |
Box Dimensions (LxWxH) | 7.7 x 5.5 x 4.3" |
In the Box
Core SWX JP-A-FS7 Gold-Mount JetPack for Sony FS7 Camera
