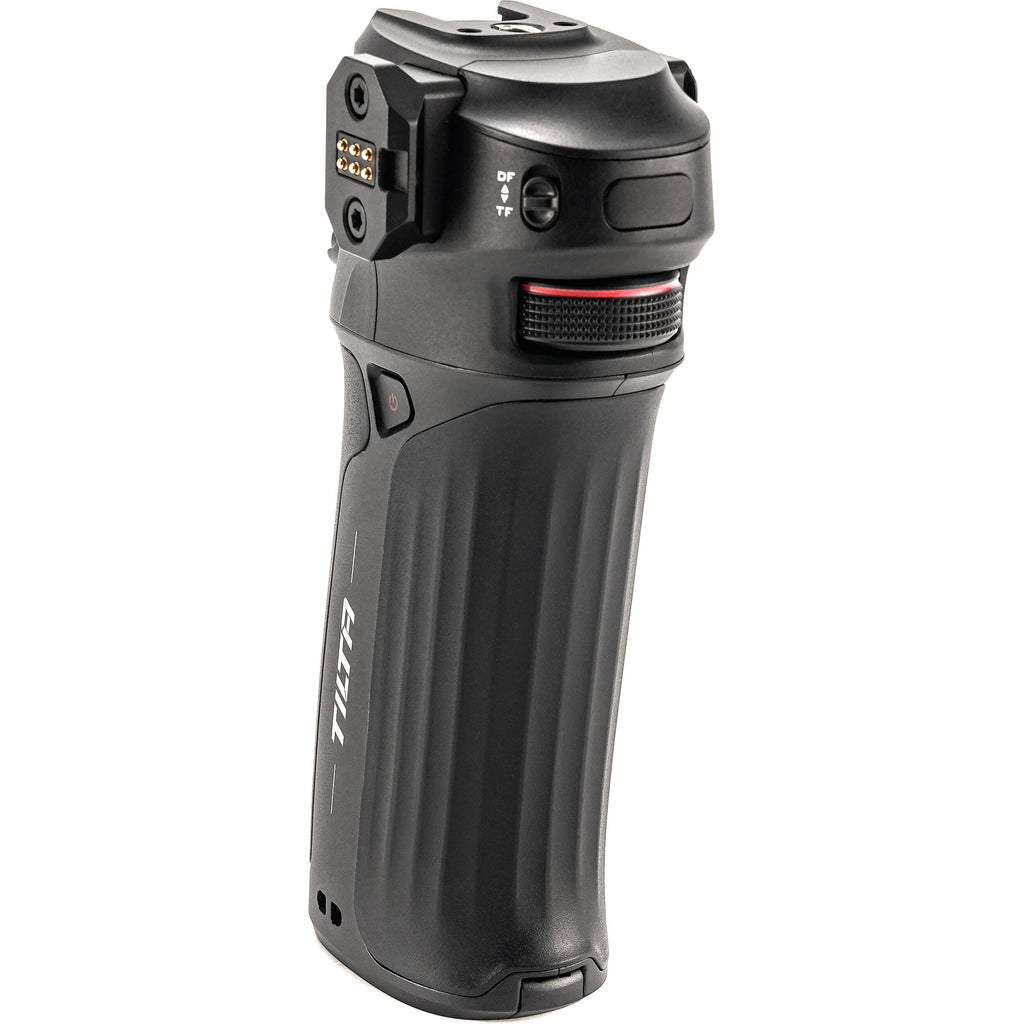

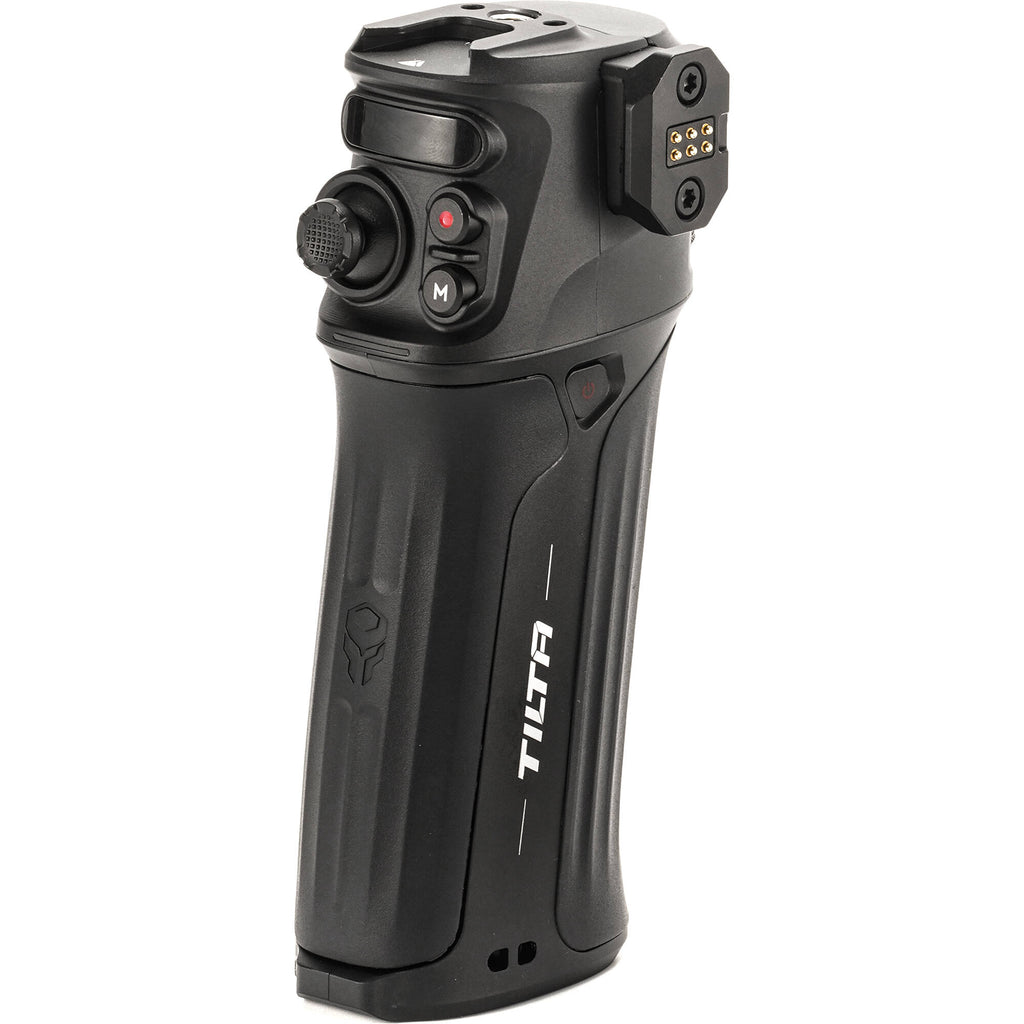

Tilta Nucleus Nano II Control Handle

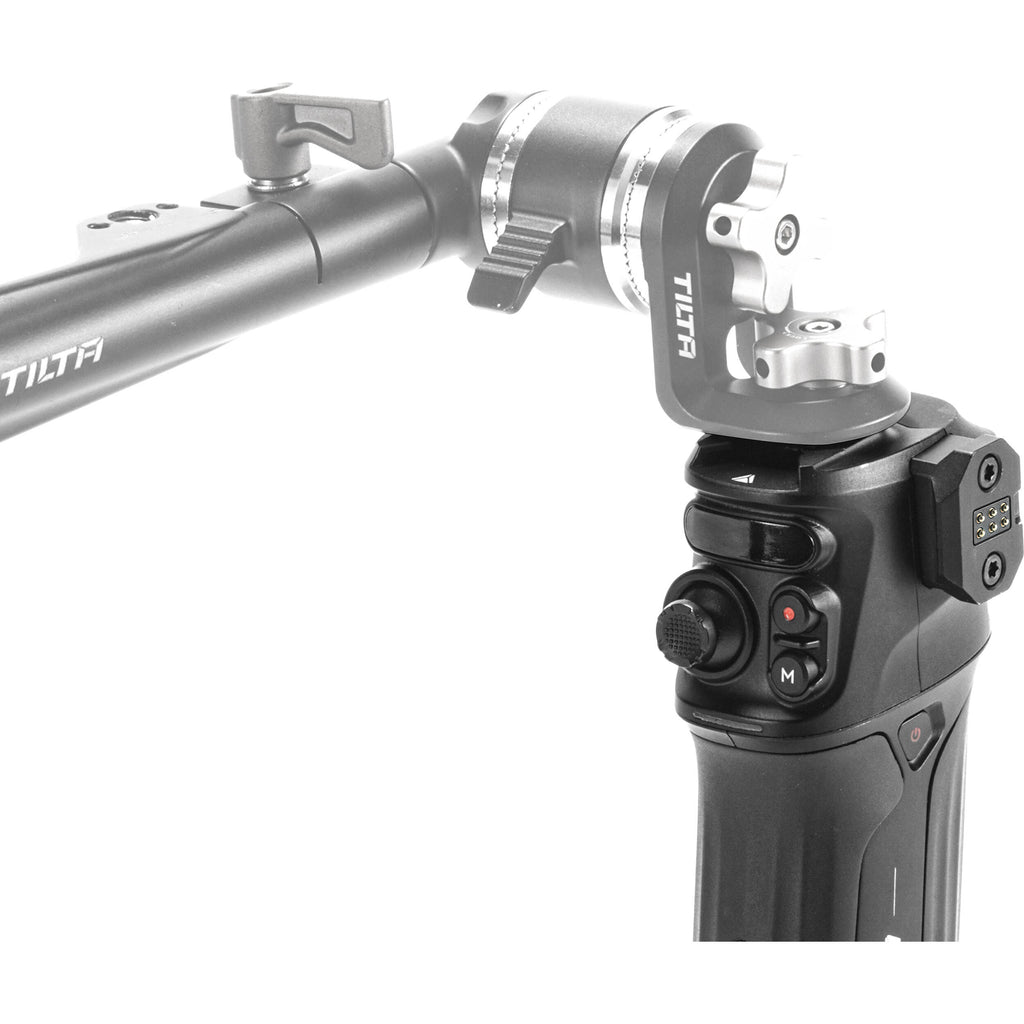

With an additional two channels of control, the Nucleus Nano II Control Handle from Tilta allows cinematographers to adapt to any shooting scenario, whether mounted to a shoulder rig for solo operation, combined with a monitor and Handwheel Controller for follow focus work, or used with the optional Wireless Receiver Module to remotely control DJI RS Focus Motors, RS 2, and RS 3 Pro gimbals.

• Pair it with the Handwheel Controller to operate up to four motors such as focus, iris, zoom, and Tilta's Mirage VND.

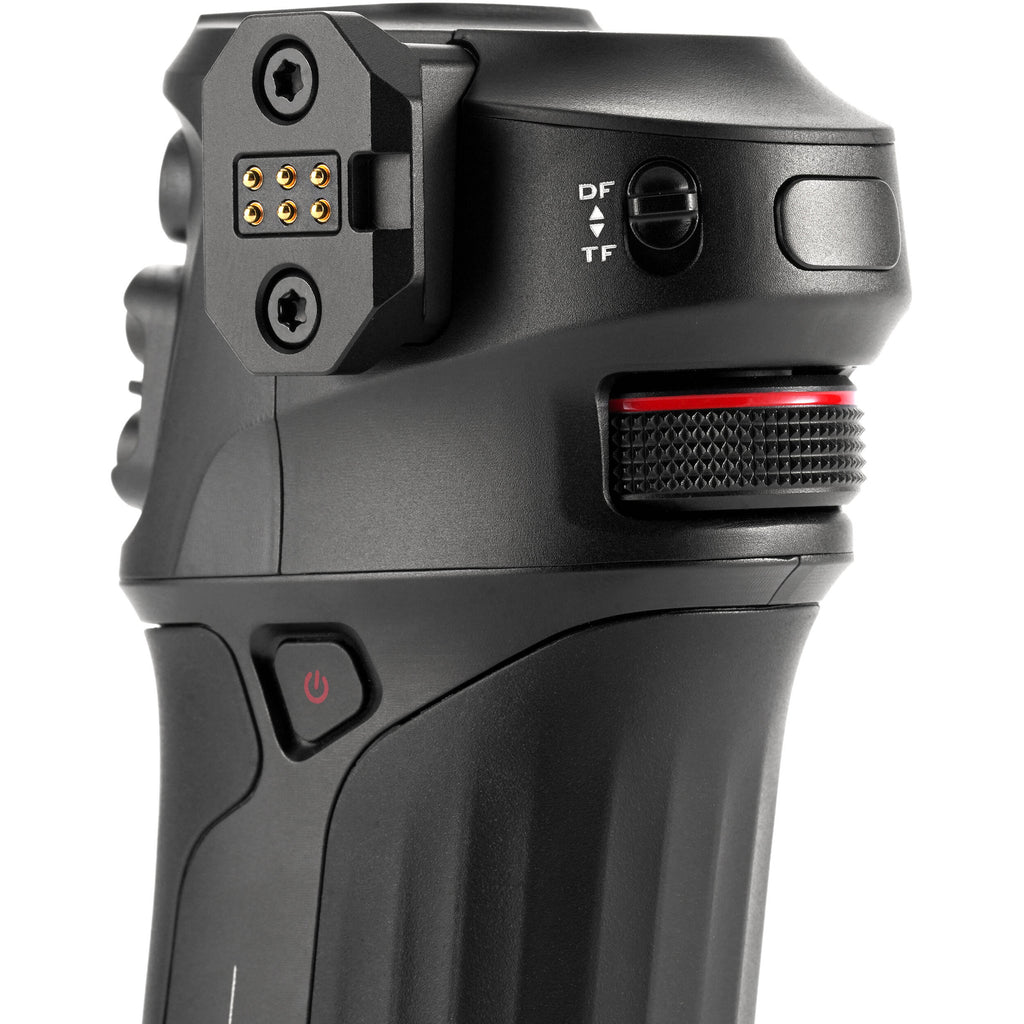

• The Control Handle's NATO Module supplies power to the Handwheel Controller when connected for extended use.

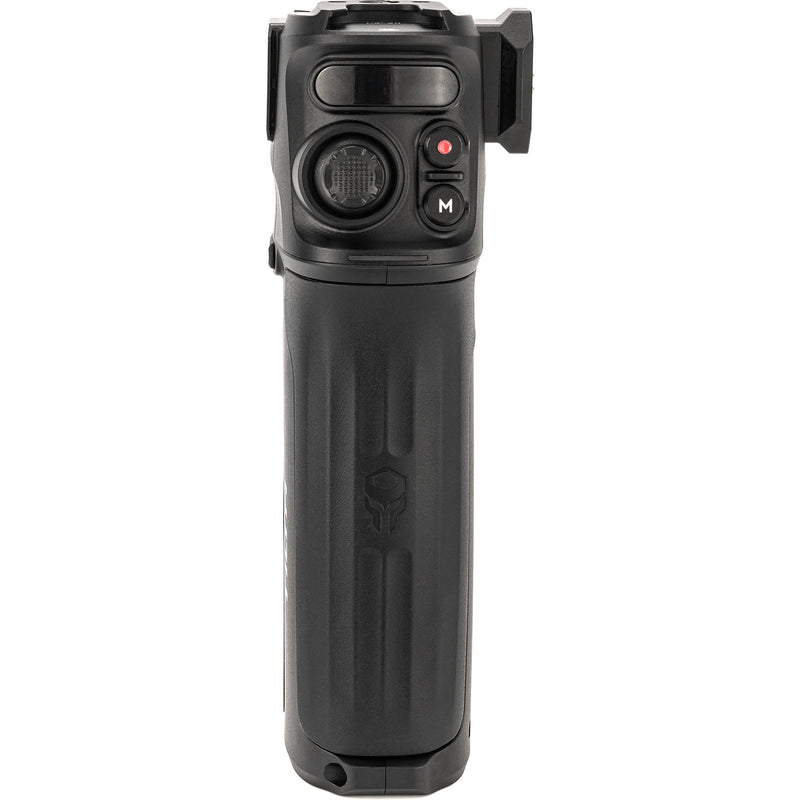

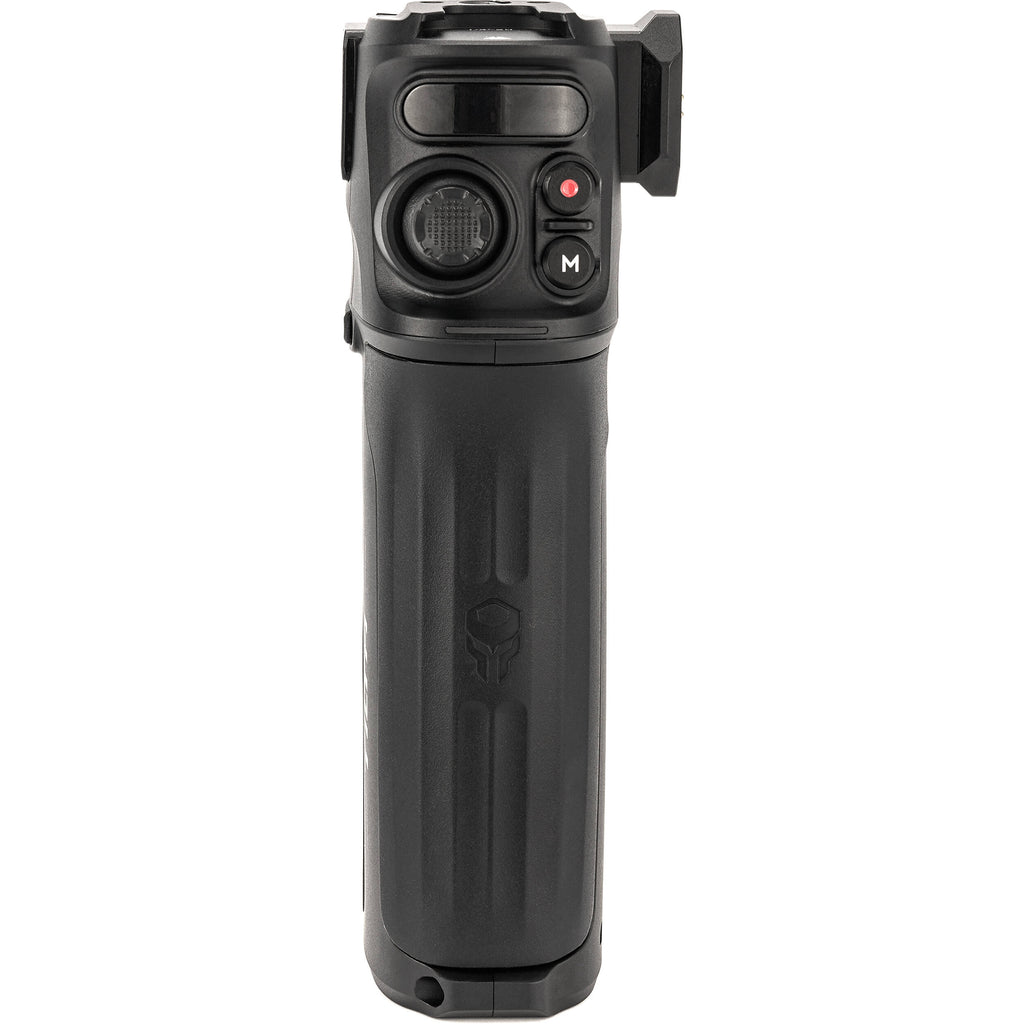

• The Control Handle can be used independently to wirelessly operate two Nucleus Series motors with the focus dial and joystick.
• With the optional Wireless Receiver Module, operate DJI RS 2 or RS 3 Pro gimbals with the joystick, and RS Focus Motors with both the joystick and focus dial.

Compatibility

The Nano II is backward compatible with the previous generation Nucleus-Nano and Nucleus-M lens motors for easy integration with your preexisting equipment. The current firmware fully supports all controls for the BMPCC 4K, 6K, and 6K Pro via Bluetooth only, with partial camera control, including run/stop, shutter speed, ISO, and iris adjustment for Sony FX3, A7S3, A7R5, ZV-E1, ZV-E10, and Canon R7 via USB-C PD cables.

For the most current features, camera, and gimbal support, please visit the Tilta website.

Some features listed above are not fully functional in the current firmware, such as DJI Ronin and DJI Focus Motor compatibility and lens mapping, and will be implemented with future firmware updates.

Tilta WLC-T05-CHSpecs

Compatibility

Tilta Nucleus Nano II / Nucleus-N / Nucleus-M DJI RS Focus Motors / RS Gimbals RS 2 and RS 3 Pro with Optional Wireless Receiver Module Sony ZV ZV-E10, ZV-E1 / Alpha a7C, a7 IV, a7S III, a7R III, a7R V / FX FX3, FX30 Canon R R6, R7, R8 Blackmagic Design Pocket Cinema Camera 4K, 6K, 6K Pro

Panel Type	LCD
Display Size	Not Specified by Manufacturer
Touchscreen	No

Wireless	2.4 GHz Radio/RF *Built-In
Mobile App Compatible	No

Battery Chemistry	Lithium-Ion
Battery Capacity	2200 mAh

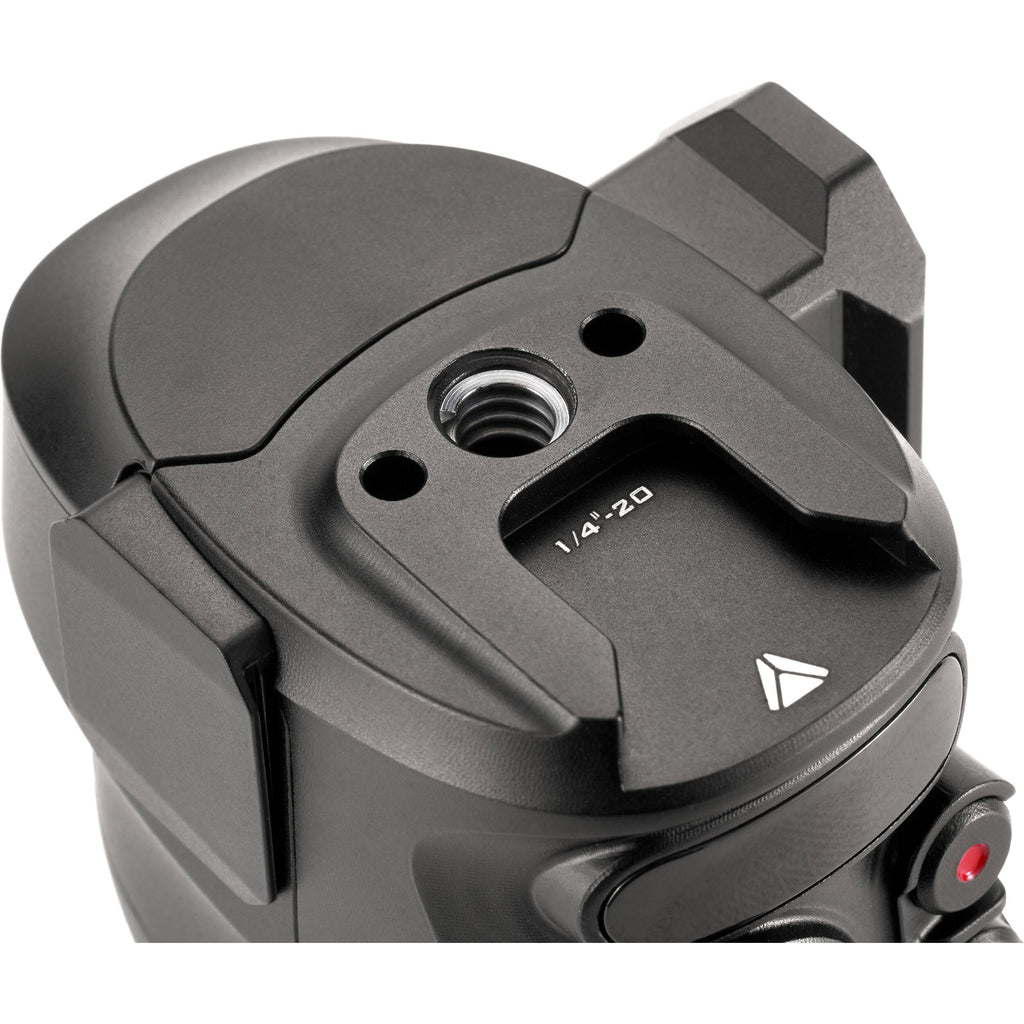

Mounting	Top: 1x 1/4"-20 Thread with Locating Points Side: 1x NATO Module
Color	Black
Material of Construction	Aluminum Alloy, Stainless Steel
Dimensions	7.5 x 5.5 x 3.5" / 19.1 x 14 x 8.9 cm
Weight	1.1 lb / 499 g

Package Weight	0.83 lb
Box Dimensions (LxWxH)	7.1 x 4.5 x 2.4"
