Multicomp PRO MP005867 Assortment Kit Bobbins/Brake/SMT Eurocard/Tweezer/Solder Pins/Wiring Pencils 160 X 100mm Euro Card

This Surface Mount Technology (SMT) PCB Wiring Kit is designed as an introduction to prototype wiring of Surface Mount Technology (SMT). The SMT layout is combined with the Oktapad® general purpose PCB format. It provides the means to experiment with hand wiring of Surface Mount Devices (SMD's)

• Introduction to hand wiring of Surface Mount Devices (SMD's)
• Meets philosophy of flexibility and versatility
• Board layout and guidelines included
• SMD leads fan out to easy-to-wire solder pads
• Provision for future piggy-back boards
• Quick and easy in use

Applications

Electronics Design, Hobby & Education

Contents

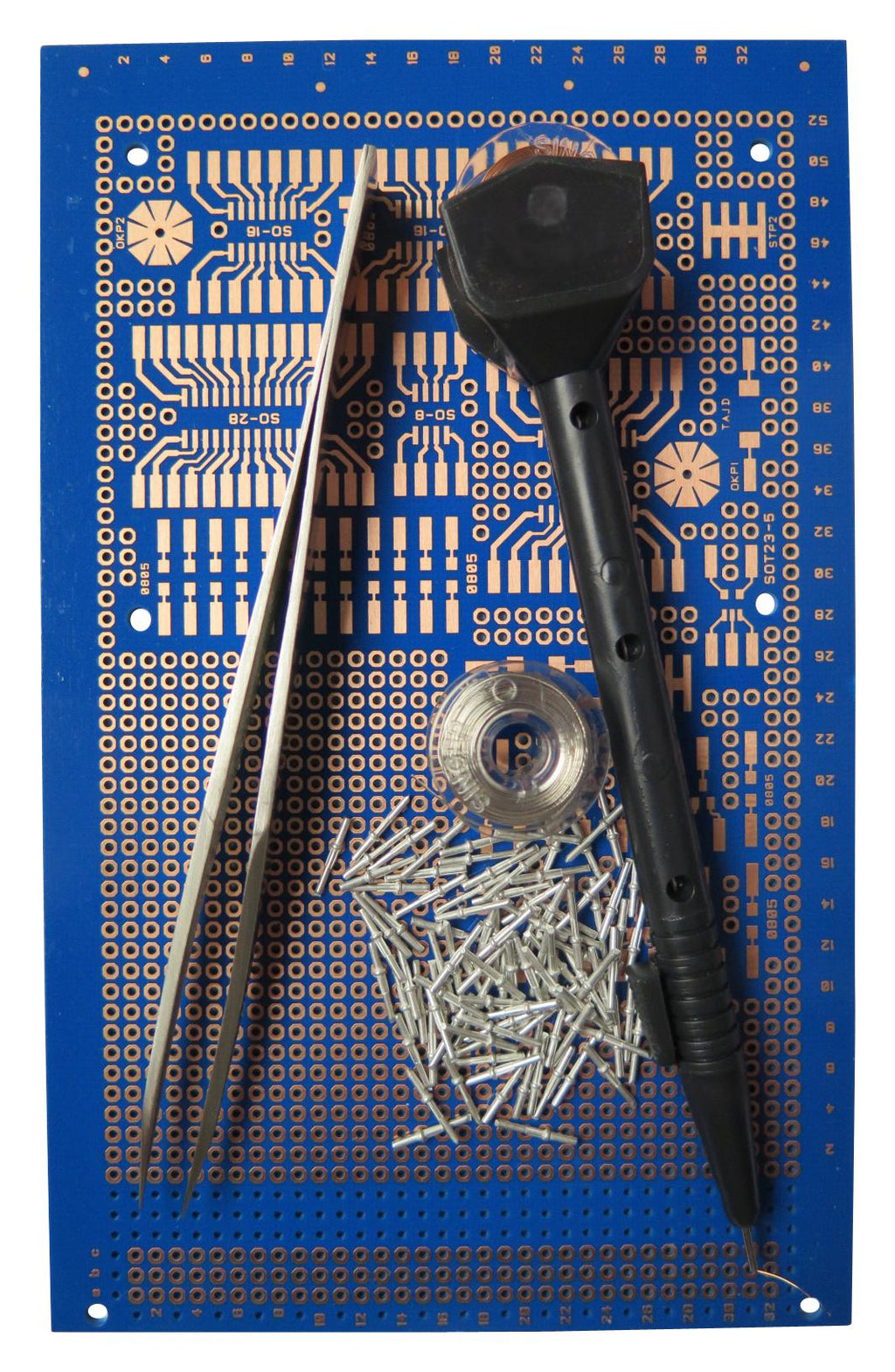

x1 Wiring Pencil with brake and bobbin of Solderable Enamel Wire x1 MP005895 SMT single height, single sided Eurocard combined with Oktapad® format, (160mm×100mm) x1 Tweezers - AA Type x100 Double Sided Solder pins, 1.0mm dia x1 Bobbin of Tinned Copper Wire - 0.25mm dia. (non-insulated) x1 Board format and SMD footprint list x1 Guidance Notes: Surface Mount Technology PCB Formats & Hand Wiring & Soldering Surface Mount Devices

Other details

Brand	MULTICOMP PRO
Part Number	MP005867
Quantity	Each
Technical Data Sheet EN
Application Note EN
