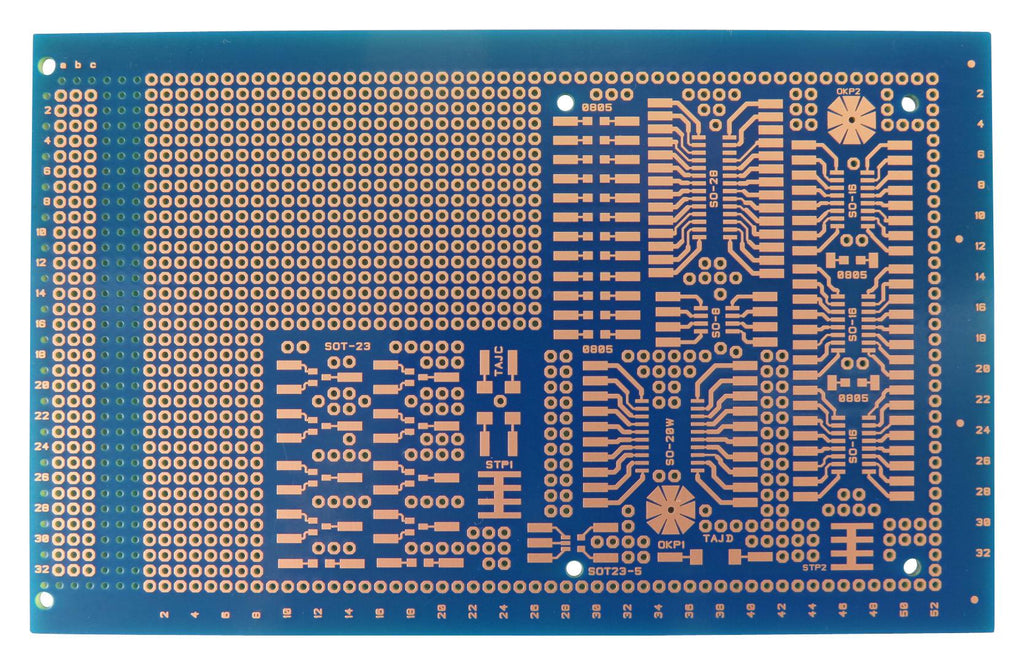

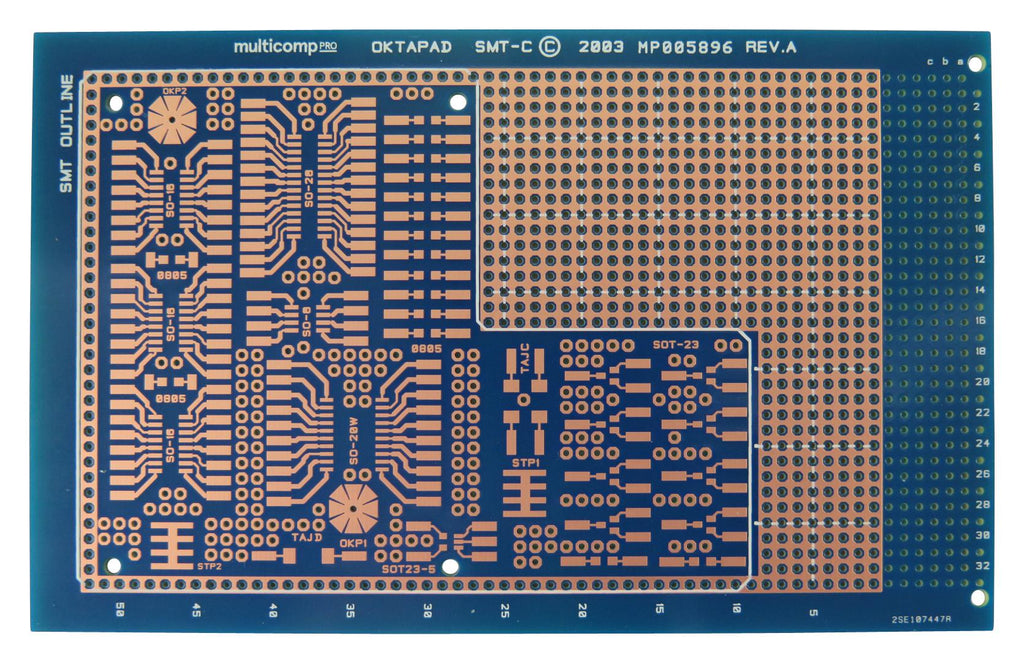

Experimental development board with Oktapad format that is designed to facilitate wiring SMDs (Surface Mount Devices) with conventional components. The board contains popular SMD footprints with fan-outs and easy-to-wire solder pads, colander ground plane and holes to attach a piggy-back board if required.
- Double-sided board with a colander ground plane to cover remaining component side
- Contains popular SMD footprints with fan-outs and easy-to-wire solder pads
- DIN 41612 connector mounting holes at one end (32/64/96 way)
- Silkscreen reference component side
- Provides 4x fixing holes for a piggy-back board
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP005896 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Application Note EN |
|
