Description
AIDA Imaging PTZ-NDI Overview

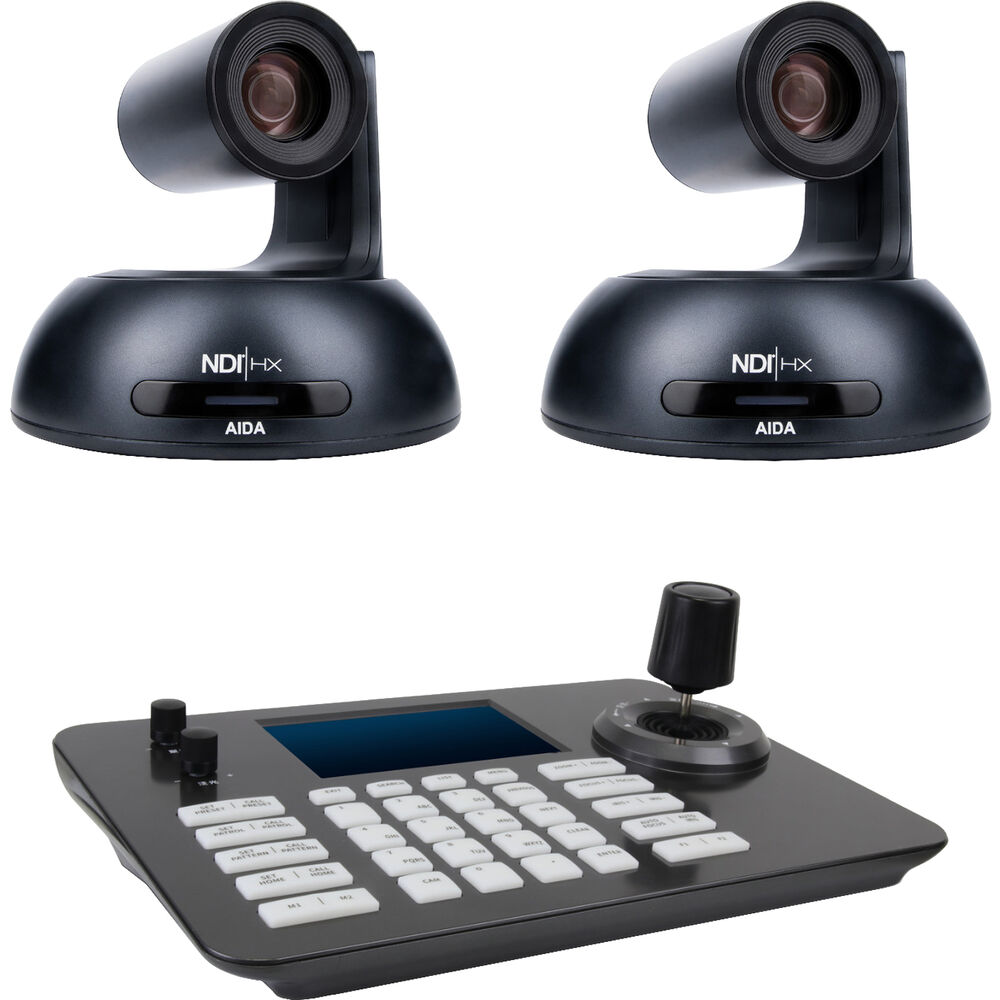

Add a remotely controlled camera set to your networked video production with this 2 x HD NDI|HX PTZ Cameras with 18x Zoom + PTZ View IP Controller Bundle from AIDA Imaging. The bundle includes two black PTZ-NDI-X18B cameras and the PTZCam PTZ View IP control surface with video decoder.
Each camera features 18x optical zoom, up to 1080p60 video capture, and simultaneous video output via IP, HDMI, and NDI|HX. They support IR remote control, 128 presets, RS-232 serial control, streaming video, and they can drop right into an existing NDI network. The PTZ View control surface allows you to control up to 999 cameras via IP and features a 4D joystick, button camera select, PoE, and its decoder allows you to view the active camera on its built-in color LCD.

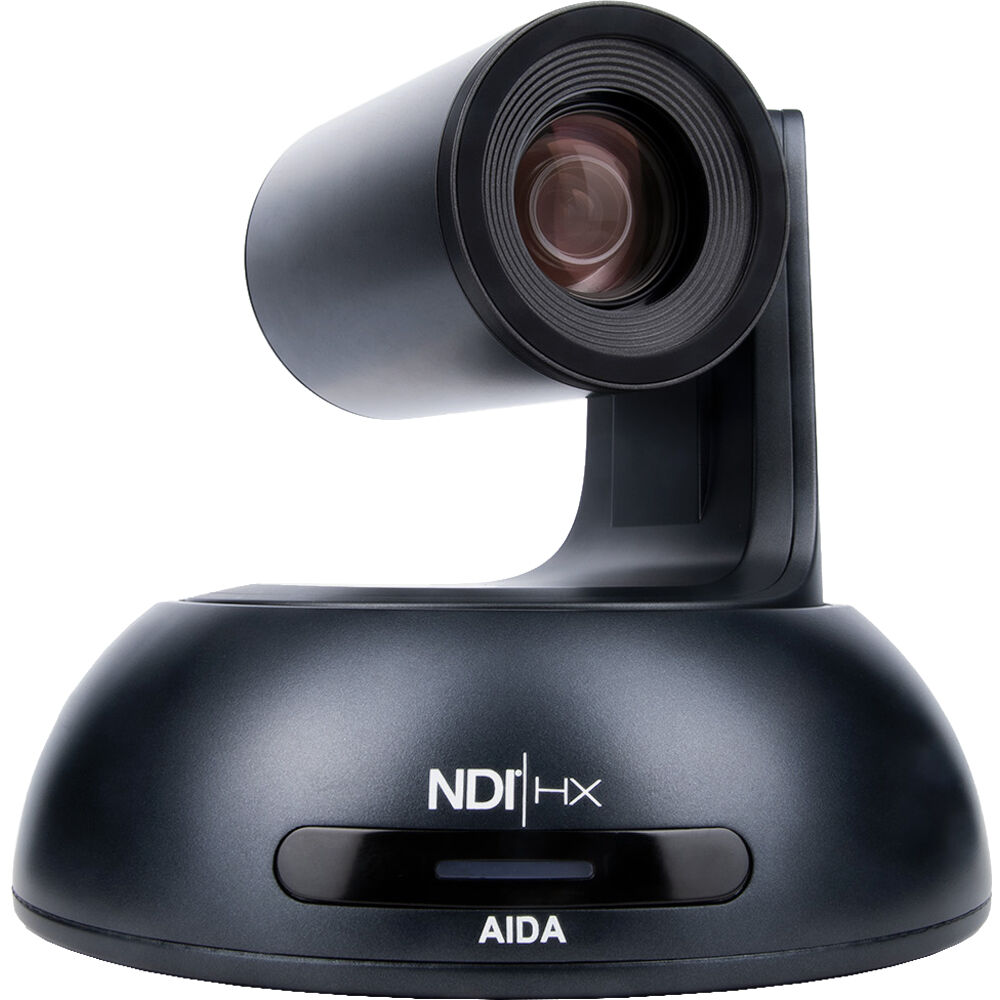

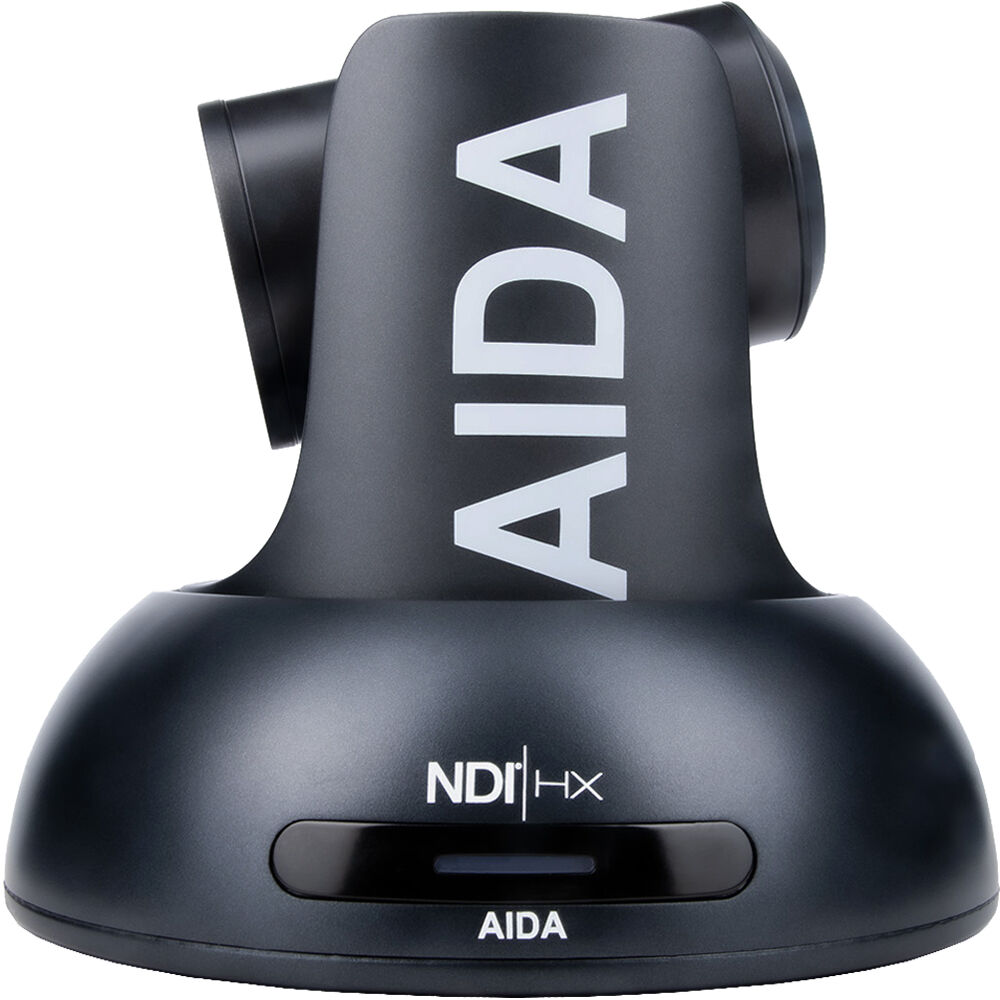

Read more below about the items in this kit.Incorporate this black Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom from AIDA Imaging into your live-streaming environment for simultaneous HDMI, IP, and NDI|HX streaming with a single device. A 1/3" CMOS sensor captures up to 1080p video at 60 fps with vivid color in different light conditions. An RS-232 input and output support serial, VISCA, and VISCA over IP control while streaming video via RTSP and RTMP protocols.
10 preset positions can be assigned and managed with the included remote, and 128 preset positions can be managed with serial control. Other settings like pan, tilt, and the 18x optical zoom can also be adjusted with low latency for smooth, silent movement. Motion-compensated noise reduction ensures your image is crisp and without motion blur. A 3.5mm line-in prevents audio/video delay over IP/NDI protocols for improved sync.
- Low-latency streaming and PTZ control
- Sensor captures sharp and vivid color under different light conditions
- Motion-compensated temporal noise reduction filter for motion video without blur
- 3.5mm line in for no audio/video delays over IP/NDI protocols
- Equipped with discreet tally light
- White balance: auto, manual, auto tracking, one push, indoor, outdoor
- Physical remote control with 10 presets
- Control via web UI interface, VISCA, VISCA over IP, and NDI
- Built-in OSD controls for customizable image settings

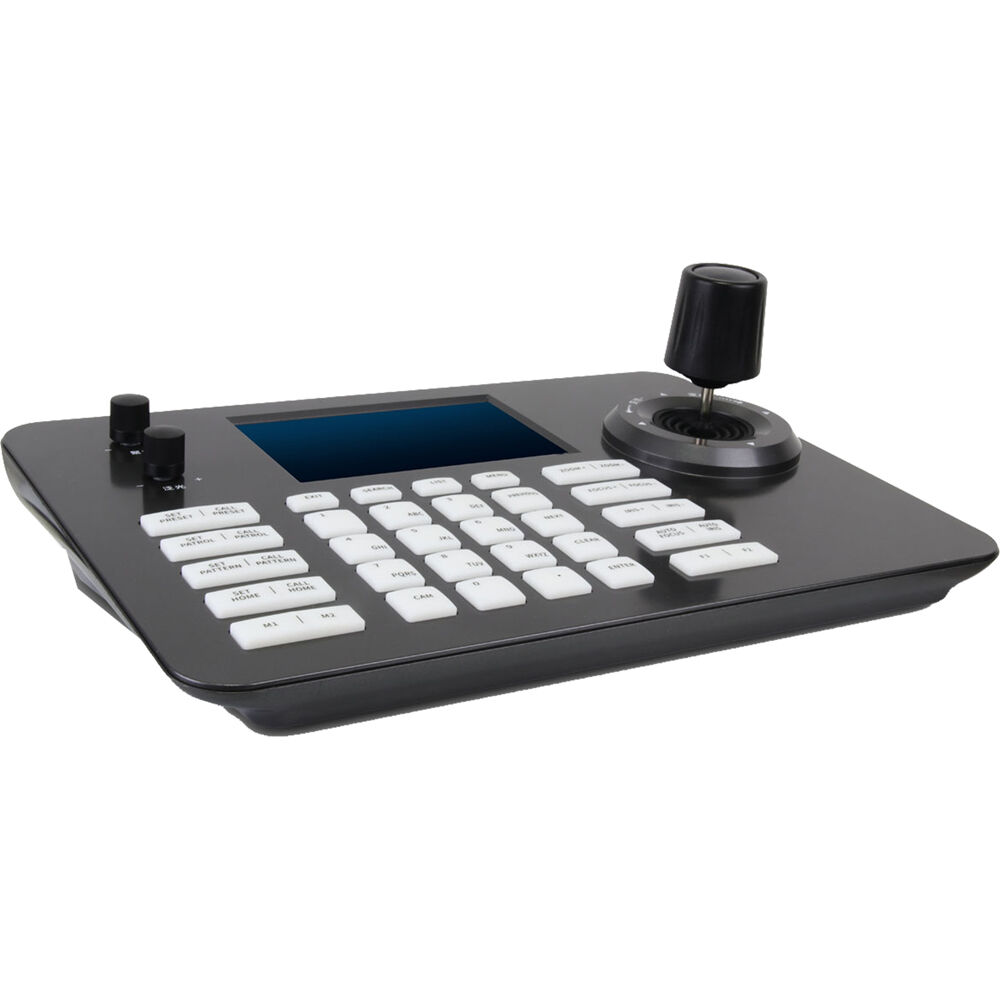

Control your PTZ cameras using IP communication with this handy PTZ View IP Control Surface with Video Decoder from PTZCam. The PTZ View offers 4D joystick and button control for up to 999 PTZ cameras with support for the VISCA control protocol over IP. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates a TFT LCD screen. It supports ONVIF communication standards, runs the open Linux operating system, and features built-in H.264/H.265 video decoders to view the active camera feed up to 1080p on the built-in 800 x 480 color display.
The controller offers camera select buttons, presets, knobs for pan/tilt/zoom speed control, iris buttons, and settings to control the finer settings on the PTZ cameras. It also features a key-touch beep feature that can be turned on and off. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) on a supported network to save cable runs.
In the Box
- 2 x AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)
- Remote Control
- Camera Mounting Bracket
- Power Adapter
- Power Cable
- Limited 2-Year Manufacturer Warranty
- PTZCam PTZ View IP Control Surface with Video Decoder
- 12 VDC Power Adapter
- Limited 1-Year Manufacturer Warranty
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black) Specs
| Image Sensor |
1/3"-Type CMOS
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
18x
|
| External Recording Modes |
HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
RTMP, RTSP, SRT, UDP
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
NDI
RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/3"-Type CMOS
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Precise Scan Rate Control |
No
|
| Minimum Illumination |
0.1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
| Focal Length |
5.2 to 93mm
|
| Optical Zoom Ratio |
18x
|
| Field of View |
60 to 4°
|
| Maximum Aperture |
f/1.5 to 3
|
| External Recording Modes |
HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Audio Recording |
Yes
|
| Broadcast Output |
NTSC
|
| IP Streaming |
RTMP, RTSP, SRT, UDP
1920 x 1080 1280 x 720 |
| Presets |
128 via IP
10 via IR |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
NDI
RS-232 VISCA |

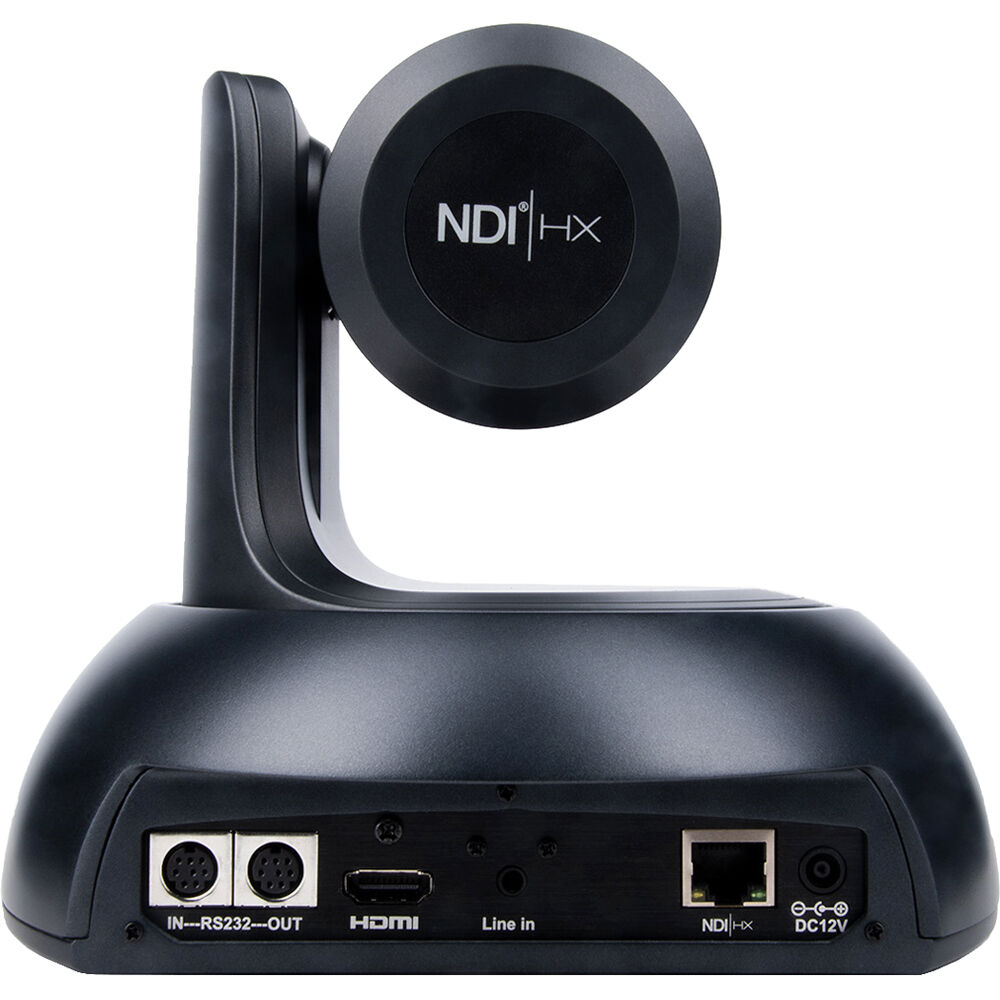

| Video I/O |
1x HDMI Output
1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output |
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (9 to 15VDC) Input
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions (W x H x D) |
7.8 x 6.9 x 7.5" / 196.9 x 176.5 x 190 mm
|
| Weight |
3.1 lb / 1.4 kg
|
| Package Weight |
7.135 lb
|
| Box Dimensions (LxWxH) |
11.8 x 10.8 x 10.4"
|
PTZCam PTZ View IP Control Surface with Video Decoder Specs
| Number of Supported Cameras |
999 Channels via IP
|
| Control I/O |
1x RJ45 (LAN)
|
| Controls |
1x Pan/Tilt, Zoom, Focus Joystick
9x Camera Selection Button |
| Touchscreen |
No
|
| PoE Support |
Yes
|
| Power Consumption |
>6 W
|
| Security Lock Support |
No
|
| Number of Supported Cameras |
999 Channels via IP
|
| Supported Control Protocols |
IP
VISCA |
| Control I/O |
1x RJ45 (LAN)
|
| Controls |
1x Pan/Tilt, Zoom, Focus Joystick
9x Camera Selection Button |
| Resolution |
800 x 480
|
| Touchscreen |
No
|
| PoE Support |
<
|
