Description
AIDA Imaging PTZ-NDI Overview

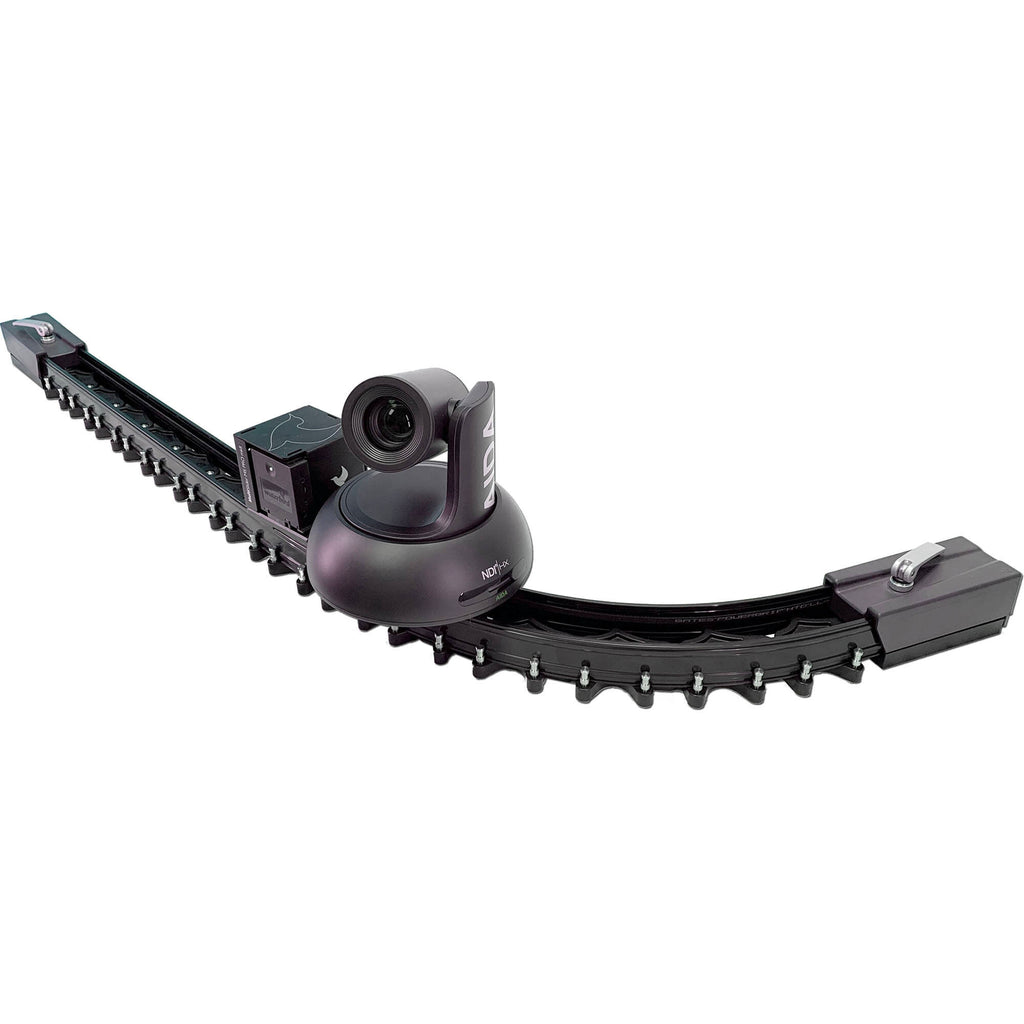

Add a remotely controlled camera and slider to your networked video production with this HD NDI|HX PTZ Camera with 18x Zoom + MS Pro 150 Flexible Slider Bundle from AIDA Imaging. The bundle includes one black PTZ-NDI-X18B camera and a Waterbird MS Pro 150 flexible slider.
The camera features 18x optical zoom, up to 1080p60 video capture, and simultaneous video output via IP, HDMI, and NDI|HX. It supports IR remote control, 128 presets, RS-232 serial control, streaming video, and can drop right into an existing NDI network. The included slider provides straight or curved slider track and motor control of your camera for up to 47.2" in sliding length.
Read more below about the items in this kit.Incorporate this black Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom from AIDA Imaging into your live-streaming environment for simultaneous HDMI, IP, and NDI|HX streaming with a single device. A 1/3" CMOS sensor captures up to 1080p video at 60 fps with vivid color in different light conditions. An RS-232 input and output support serial, VISCA, and VISCA over IP control while streaming video via RTSP and RTMP protocols.
10 preset positions can be assigned and managed with the included remote, and 128 preset positions can be managed with serial control. Other settings like pan, tilt, and the 18x optical zoom can also be adjusted with low latency for smooth, silent movement. Motion-compensated noise reduction ensures your image is crisp and without motion blur. A 3.5mm line-in prevents audio/video delay over IP/NDI protocols for improved sync.
- Low-latency streaming and PTZ control
- Sensor captures sharp and vivid color under different light conditions
- Motion-compensated temporal noise reduction filter for motion video without blur
- 3.5mm line in for no audio/video delays over IP/NDI protocols
- Equipped with discreet tally light
- White balance: auto, manual, auto tracking, one push, indoor, outdoor
- Physical remote control with 10 presets
- Control via web UI interface, VISCA, VISCA over IP, and NDI
- Built-in OSD controls for customizable image settings
The Waterbird MS 150 PRO Multislider is not your average camera slider. While some sliders are curved and others are straight, the Waterbird MS 150 PRO slider, with a travel distance of 47.2", can operate as either a straight or curved track. To curve the track, simply unlock the rails and set the curve radius to fit the desired composition. Each track segment has its own 1/4"-20 threads for supporting on stands or tripods. When combined with the separately available motor kit, the Waterbird MS 150 can be used to record innovative time-lapses and timed camera movements.
The PRO version includes a control unit, motor, and belt with a timing belt, all essential for automating your camera moves. A battery and power supply are also included. A camera control cable is sold separately and is required for app control.
In the Box
- AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black)
- Remote Control
- Camera Mounting Bracket
- Power Adapter
- Power Cable
- Limited 2-Year Manufacturer Warranty
- Waterbird MS 150 PRO Multislider (59")
- Control Unit
- Motor
- Belt
- Timing Belt Pulley
- Battery
- Power Supply
- Limited 1-Year Manufacturer Warranty
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 18x Optical Zoom (Black) Specs
| Image Sensor |
1/3"-Type CMOS
|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
18x
|
| External Recording Modes |
HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
RTMP, RTSP, SRT, UDP
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
NDI
RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Image Sensor |
1/3"-Type CMOS
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Precise Scan Rate Control |
No
|
| Minimum Illumination |
0.1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
| Focal Length |
5.2 to 93mm
|
| Optical Zoom Ratio |
18x
|
| Field of View |
60 to 4°
|
| Maximum Aperture |
f/1.5 to 3
|
| External Recording Modes |
HDMI / RJ45
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Audio Recording |
Yes
|
| Broadcast Output |
NTSC
|
| IP Streaming |
RTMP, RTSP, SRT, UDP
1920 x 1080 1280 x 720 |
| Presets |
128 via IP
10 via IR |
| Move Speed |
Pan: 0 to 120°/sec
Tilt: 0 to 80°/sec |
| Movement Range |
Pan: 340°
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
NDI
RS-232 VISCA |
| Video I/O |
1x HDMI Output
1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Input
1x Mini-DIN 8-Pin (RS-232) Output |
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (9 to 15VDC) Input
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions (W x H x D) |
7.8 x 6.9 x 7.5" / 196.9 x 176.5 x 190 mm
|
| Weight |
3.1 lb / 1.4 kg
|
| Package Weight |
7.135 lb
|
| Box Dimensions (LxWxH) |
11.8 x 10.8 x 10.4"
|
Waterbird MS 150 PRO Multislider (59") Specs
| Load Capacity |
5.5 lb / 2.5 kg (Vertical)
5.1 lb / 2.3 kg (Upside Down) |
| Travel Distance |
47.2" / 120 cm
|
| Motor Sliding Speed |
1.9 in/s / 4.8 cm/s
|
| Weight |
9.9 lb / 4.5 kg
|
| Travel Distance |
47.2" / 120 cm
|
| Curve Radius |
Variable to 10" / 25 cm
|
| Motor Sliding Speed |
1.9 in/s / 4.8 cm/s
|
| Tripod Mounting |
1/4"-20 Female Thread
|
| Track Dimensions |
L: 59 x W: 2.75 x H: 2.6" / L: 150 x W: 7 x H: 6.5 cm
|
| Operating Temperature |
-4.0 to 122.0°F / -20.0 to 50.0°C
|
| Operating Humidity |
0 to 90%
|
| Weight |
9.9 lb / 4.5 kg
|
| Package Weight |
12.45 lb
|
| Box Dimensions (LxWxH) |
62 x 8.5 x 7.1"
|
