Description

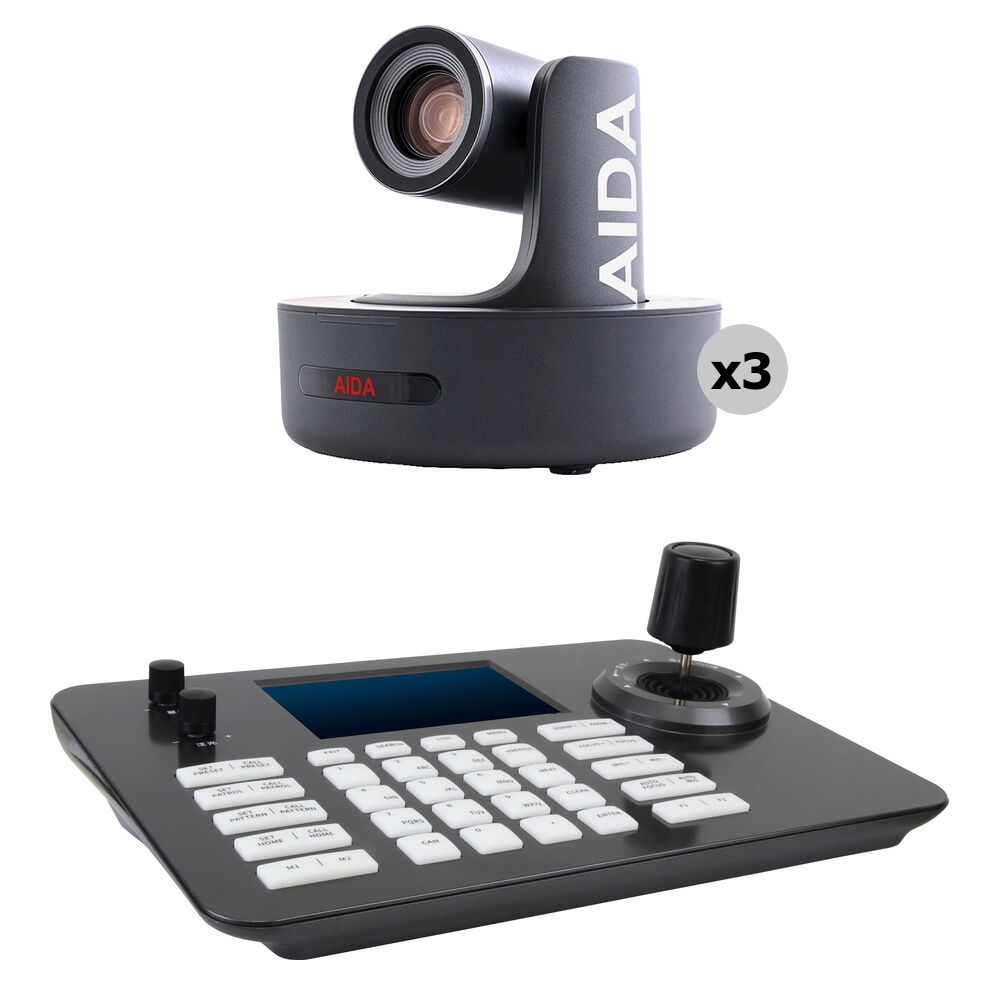

AIDA Imaging PTZ-NDI 20X IP Controller Bundle Overview
Set up your conference room, classroom, or house of worship with this AIDA Imaging PTZ-NDI-X20 3-Camera Kit with PTZ View IP Controller put together by . The kit includes three black AIDA NDI|HX PTZ cameras with 20x optical zoom and a PTZCam PTZ View IP control surface with built-in video decoder. The cameras provide simultaneous SDI, HDMI, USB, NDI|HX/IP output and up to 1080p60 resolution capture, and the controller provides remote pan, tilt, and zoom control over IP for a single operator.

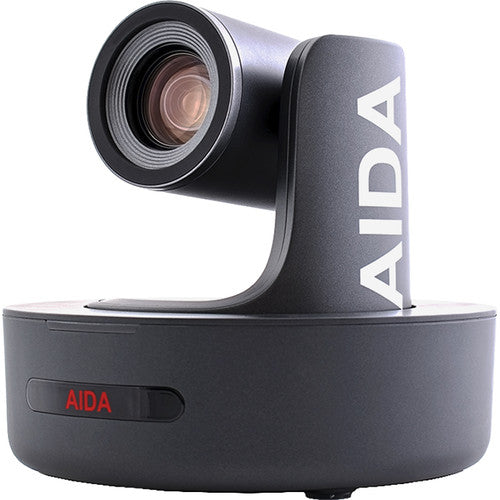

Add the Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom from AIDA to your NDI network, which offers four simultaneous video outputs as well as NDI|HX workflows over IP. While the SDI, HDMI, and USB outputs must be set at the same resolution up to 1080p60, the IP streaming port can output at a different resolution at frame rates from 1 to 60 fps. The camera features a 20x zoom, and pan, tilt, and zoom functions can be controlled via serial control or by using the included remote control.
The camera features RS-232 input/output for serial control as well as the VISCA control protocol over IP and streaming video via RTSP/RTMP protocols. Up to 10 presets can be assigned and managed via the included IR remote controller, and up to 128 can be managed over serial control. Other features include a motion-compensated temporal noise reduction filter, which allows for noise reduction without blur.
- Simultaneous SDI, HDMI, USB, and NDI|HX output
- Up to 1080p60 resolution video output
- 20x optical zoom
- H.264 / H.265 streaming
- RS-232 input/output
- VISCA-over-IP control protocol
- TCP/IP, RTSP/RTMP IP protocol
- 10 presets via included IR remote controller, 128 presets over serial control
- Motion-compensated temporal noise reduction filter allows for noise reduction without blur
- SMPTE 424M/292M standard
- Built-in OSD controls
- 4:2:2 (YCbCr) 10-bit color space
- White balance: auto, manual, auto tracking, one push, indoor, outdoor
- Auto shutter speed

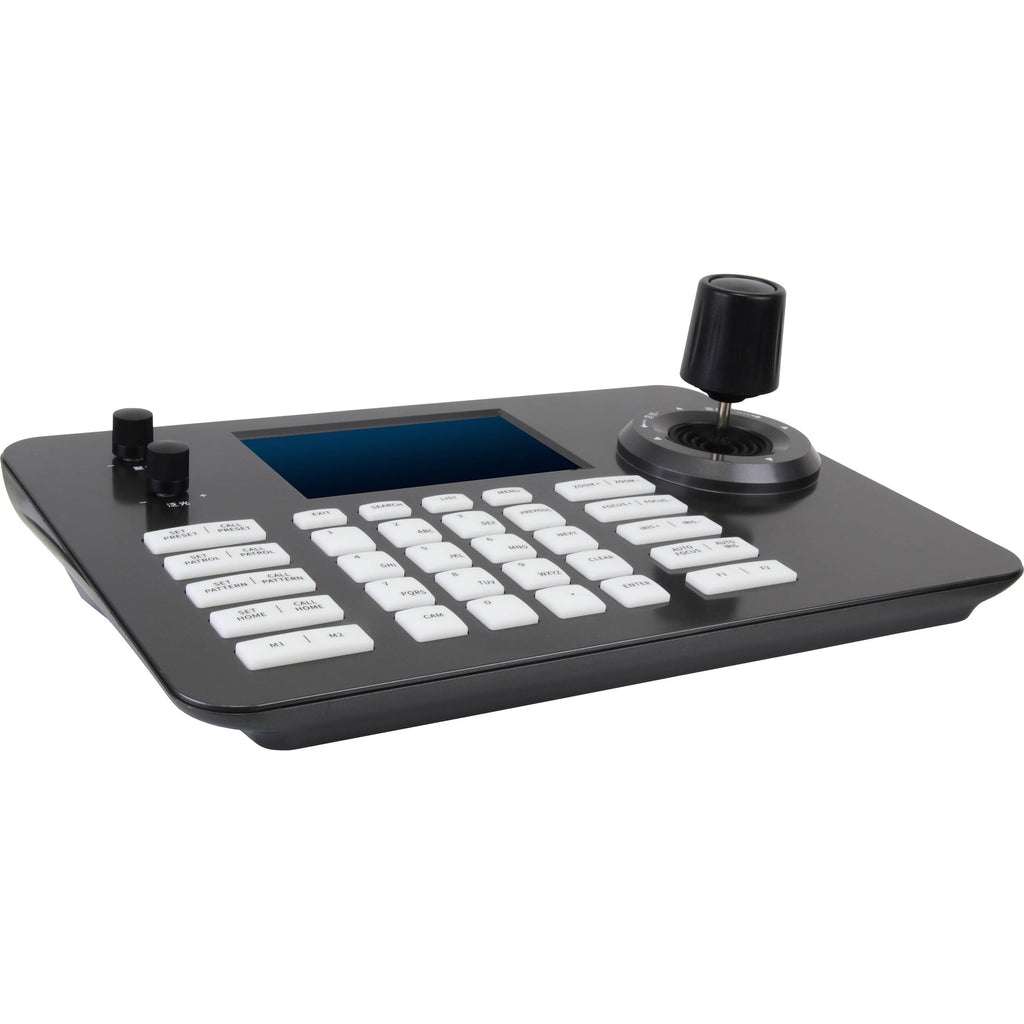

Control your PTZ cameras using IP communication with this handy PTZ View IP Control Surface with Video Decoder from PTZCam. The PTZ View offers 4D joystick and button control for up to 999 PTZ cameras with support for the VISCA control protocol over IP. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates a TFT LCD screen. It supports ONVIF communication standards, runs the open Linux operating system, and features built-in H.264/H.265 video decoders to view the active camera feed up to 1080p on the built-in 800 x 480 color display.
The controller offers camera select buttons, presets, knobs for pan/tilt/zoom speed control, iris buttons, and settings to control the finer settings on the PTZ cameras. It also features a key-touch beep feature that can be turned on and off. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) on a supported network to save cable runs.
Items Included
- 3 x AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom
- Remote Controller
- Mounting Bracket
- USB 3.0 Cable
- Power Adapter
- Power Cord
- Limited 2-Year Manufacturer Warranty
- PTZCam PTZ View IP Control Surface with Video Decoder
- 12 VDC Power Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera with 20x Optical Zoom
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
RJ45
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps 1024 x 576 at 23.98/24.00/25/29.97/50/59.94 fps 620 x 360 at 23.98/24.00/25/29.97/50/59.94 fps SDI/BNC / HDMI / USB 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI|HX, RTMP, RTSP, SRT, TCP
1920 x 1080 1280 x 720 |
| Supported Control Protocols |
IR
RS-232 VISCA |
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Speed |
1/10000 to 1 Second
|
| Minimum Illumination |
0.1 Lux
|
| White Balance |
Presets: One Push, Indoors, Outdoors, Manual, Auto
|
| Optical Zoom Ratio |
20x
|
| Field of View |
57 to 3.3°
|
| Maximum Aperture |
f/1.5 to 3
|
| External Recording Modes |
RJ45
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps 1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps 1024 x 576 at 23.98/24.00/25/29.97/50/59.94 fps 620 x 360 at 23.98/24.00/25/29.97/50/59.94 fps SDI/BNC / HDMI / USB 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 25/29.97/50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI|HX, RTMP, RTSP, SRT, TCP
1920 x 1080 1280 x 720 |
| Presets |
10 via IR
128 via RS-232, VISCA |
| Tally Light |
No
|
| Supported Control Protocols |
IR
RS-232 VISCA |
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1x RJ45 (NDI) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232, VISCA) Input
1x Mini-DIN 8-Pin (RS-232, VISCA) Output 1x RJ45 (LAN) Output |
| Power I/O |
1x Barrel (9 to 15VDC) Input
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Weight |
2.97 lb / 1.35 kg (Body Only)
|
| Package Weight |
7.54 lb
|
| Box Dimensions (LxWxH) |
11.7 x 10.8 x 10.5"
|
