Description

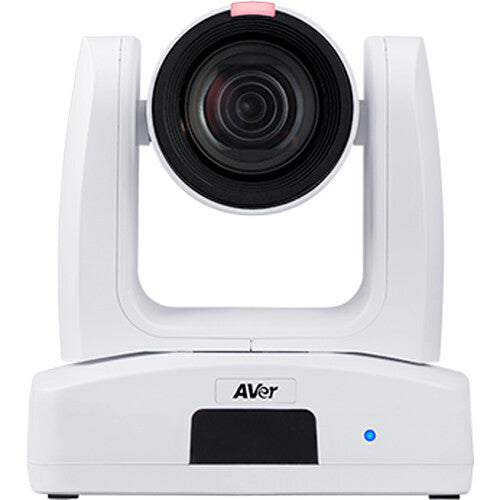

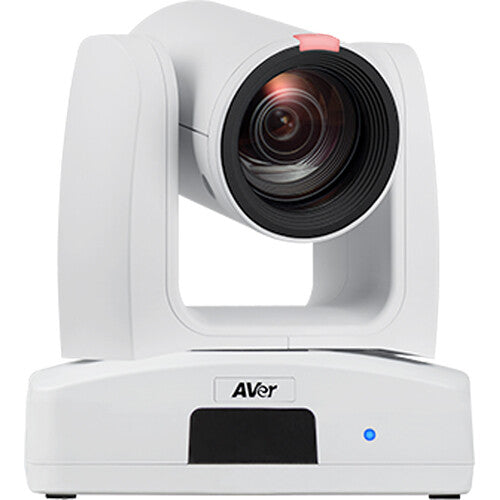

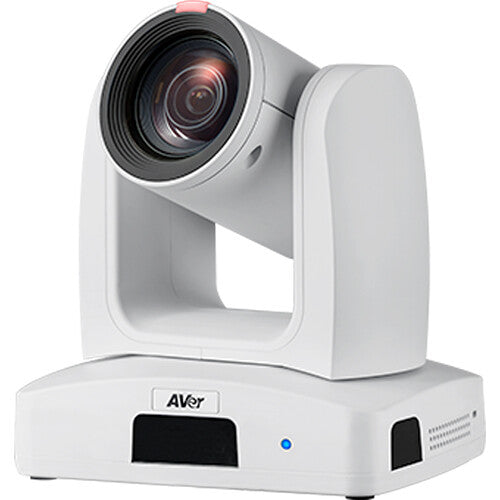

AVer PTZ231 Overview
By Photo's
Jennifer Hahn
Add a high-quality multifunction PTZ camera to your conference room, event space, or house of worship with the white PTZ231 PTZ Camera with 30x Optical Zoom from AVer. The camera supports up to 1080p60 video capture in low light thanks to its wide dynamic range, and features subject tracking to automatically follow a speaker around the room. The camera features a 1/2.8" HD CMOS sensor. It outputs video over 3G-SDI, HDMI, and USB-B 3.0 connections, and streams video/audio over IP via RTMP/RTSP. A Kensington lock slot allows you to keep your device secured.
30x Optical Zoom
Experience amazing clarity as our 30x optical zoom camera and rapid autofocus bring every participant into sharp focus.
Full HD Resolution
The PTZ231 enhances your streaming experience with a high-quality Sony sensor and Full HD 1080p resolution. The image processor optimizes shot quality automatically, whether it's a close-up or an extreme long shot, delivering an impressive visual experience.
Simplified Connections
The PTZ231 supports seamless 60 fps streaming capabilities across HDMI, USB, and IP outputs. Free yourself from intricate settings and cable clutter, all while managing multiple devices seamlessly and maintaining smooth video streaming.
Fast and Precise
Indulge in the versatility of customizable movement speed, ranging from 0.1 to 200° per second, ensuring exceptional agility and precision. This sensitivity and seamless multi-angle movement allow you to capture captivating footage.
SmartShoot Tracking
With its built-in SmartShoot functionality, the PTZ231 uses live Human Detection to autonomously maneuver the camera across up to four preset zones. The camera remains focused on the presenter, swiftly transitioning between shooting zones as needed, delivering sharp images of both the presenter and their content.
Voice Tracking
PTZ Link software lets you combine a PTZ camera with audio pickup devices. Easily transform your AVer Pro AV Camera into a voice tracking camera with preset areas that let the camera automatically shift between various speakers. Take your streams from ordinary to extraordinary with PTZ Link's seamless camera and audio integration.
UPC: 848090009288
Items Included
- AVer PTZ231 PTZ Camera with 30x Optical Zoom (White)
- Power Adapter
- Power Cable
- IR Remote
- RS-232 Cable
- DIN-8 to D-Sub9 Cable
- Ceiling Mount Kit
- Limited 5-Year Manufacturer Warranty (on Camera)
- Limited 1-Year Manufacturer Warranty (on Accessories)
Additional Resources
AVer PTZ231 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel (1920 x 1080)
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
1x
|
| External Recording Modes |
HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, RTMP, RTSP, TCP, UDP
1920 x 1080 at 60p 1280 x 720 at 60p |
| Supported Control Protocols |
IP
Pelco-D RS-232 RS-422 VISCA |
| PoE Support |
PoE+ 802.3at
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
1000 TV Lines
|
| Sensor Resolution |
Effective: 2 Megapixel (1920 x 1080)
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.5 Lux at 1/30 Shutter Speed
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: ATW, Auto, Manual, One Push
|
Lens
| Focal Length |
4.5 to 135mm
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
1x
|
| Field of View |
Horizontal: 62.3 to 2.5°
Vertical: 37.3 to 1.4° Diagonal: 69.2 to 2.8° |
| Maximum Aperture |
f/1.8 to 4.7
|
| Minimum Focus Distance |
Wide: 3.9" / 0.1 m
Telephoto: 47.2" / 1.2 m |
Video Capture
| External Recording Modes |
HDMI / RJ45 / USB
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI/USB
|
| Audio Recording |
Yes
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
H.264, H.265, MJPEG, RTMP, RTSP, TCP, UDP
1920 x 1080 at 60p 1280 x 720 at 60p |
| IP Multi-Stream Support |
Simultaneous
H.264, H.265, MJPEG: 1080p at 60p |
Control
| Presets |
255 via IP, RS-232, VISCA
10 via IR |
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-30 to 90°) at 0.1 to 100°/s |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
Pelco-D RS-232 RS-422 VISCA |

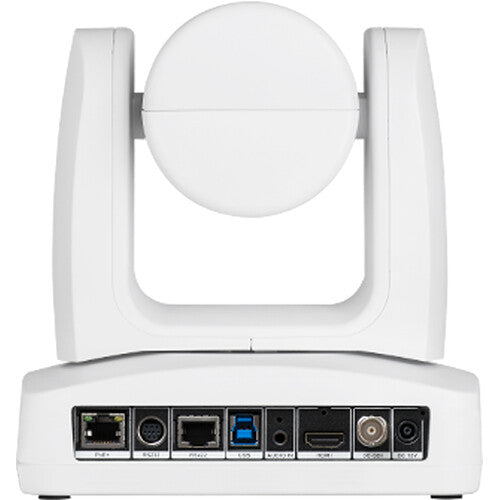

Interface
| Video I/O |
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output
1x HDMI (Unspecified Signal) Output 1x RJ45 LAN Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x RJ45 (RS-422) Input/Output
1x Mini-DIN 9-Pin (RS-232) Input |
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC at 2 A) Input
|
| Power Consumption |
Device: 100 to 240 VAC 19 W
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 20 to 95% Humidity
|
General
| OS Compatibility |
Computer: macOS 10.14 or Later / Windows 7 or Later
Mobile: iOS Only |
| Security Lock Support |
Kensington Lock Slot
|
| Dimensions (W x H x D) |
7.1 x 7.6 x 5.7" / 180 x 192 x 145 mm
|
| Weight |
4.4 lb / 2 kg (Body Only)
|
Packaging Info
| Package Weight |
9.455 lb
|
| Box Dimensions (LxWxH) |
12.7 x 11.4 x 9.7"
|
