Description
AVer PTZ330 V2 Overview
- 1Description
- 2
- 3High-Resolution Capture and Streaming
- 4SmartShoot AI Preset Tracking
- 5Versatile Motion Control
- 6Preset Storage and Remote Control
- 7Tally Light
- 8Software
By Photo's
Jennifer Hahn

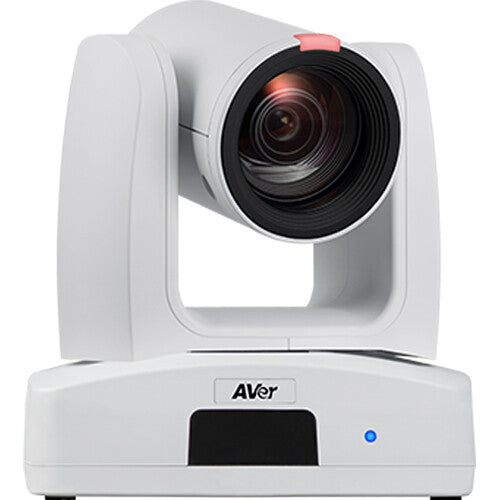

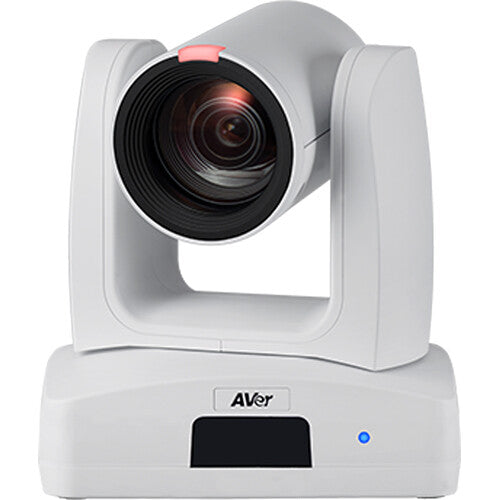

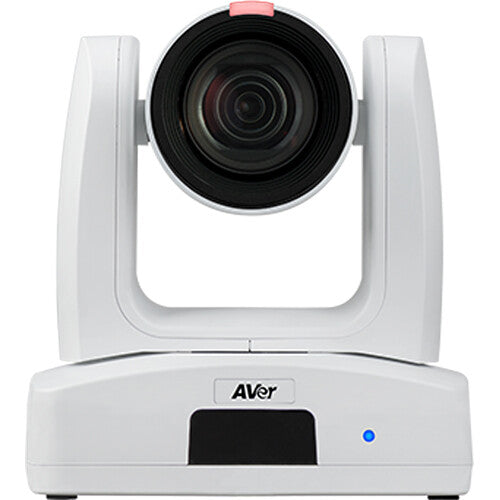

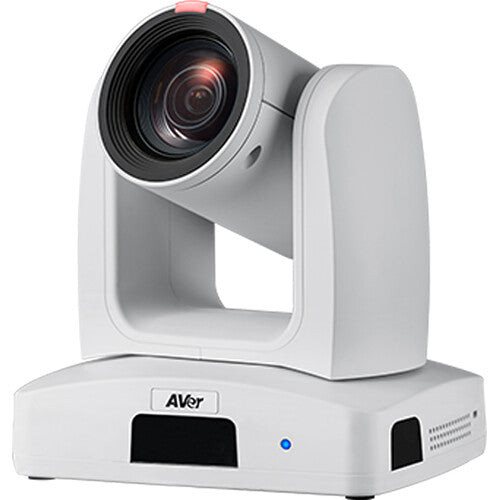

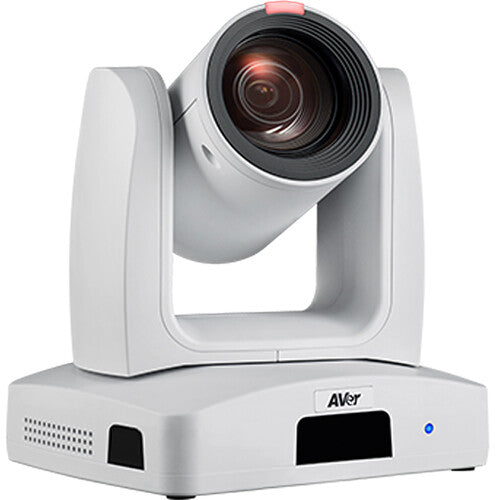

Add a camera to your conference room, house of worship, or event space with software such as Skype, Microsoft Teams, or Zoom with the white
PTZ330UV2 4K Professional PTZ Camera with 30x Optical Zoom from
AVer. The PTZ camera features resolution support up to 4K60, a built-in zoom lens has an optical zoom range of 30x, and multiple video output options including USB-B, HDMI, 3G-SDI, RJ45 Ethernet RTSP streaming. With the new AI SmartShoot mode, the camera can set zone tracking for a multi-camera feel, and it has 256 preset options to rapidly move between positions using IP, RS-232, RS-422/RS-485, or IR control with separately available controllers.
High-Resolution Capture and Streaming
The PTZ330UV2 can capture up to 4K60 resolution with its 8MP sensor with simultaneous output of USB-B, IP, HDMI, and 3G-SDI. The PTZ330UV2 features Zoom and Microsoft Teams video mode for easy conference setups and the SRT protocol to optimize video streaming performance across unpredictable networks. Built-in AI functions provide preset content areas or adjust the field of view to capture everyone on screen. It is also compatible with other software and services such as Crestron, vMix, NewTek, Kaltura, and echo 360.
SmartShoot AI Preset Tracking
AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot's Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ330UV2 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
Versatile Motion Control
Advanced Motion Control Settings allow you to perform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience. The PTZ330UV2 is capable of pan/tilt rotation maneuvers as small as 0.1° per step, for smooth, precise movements.
Preset Storage and Remote Control
Preset the PTZ330UV2 with up to 256 different locations through VISCA via RS-232 and RS-422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Tally Light
Simplify multi-camera live video productions with an illuminated red light on the active camera.
Software
Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered.
In the Box
- AVer PTZ330UV2 4K Professional PTZ Camera with 30x Optical Zoom
- IR Remote Control

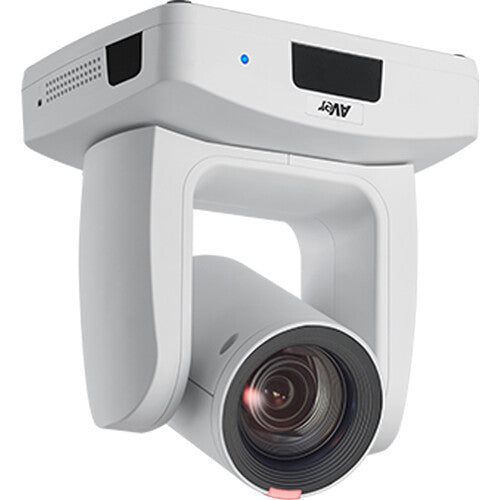

- 2 x Ceiling Mount Bracket
- Cable Fixing Plate
- Drilling Paper
- 3 x M2 Screw
- 12 VDC Power Adapter
- Power Cable
- 2 x 1/4"-20 Screw
- 3 x M3 Screw
- DIN-8 to DSub-9 Cable
- RS-232 Input/Output Y-Cable
- 4 x Cable Tie
- Limited 5-Year Manufacturer Warranty (on Camera)
- Limited 1-Year Manufacturer Warranty (on Accessories)
Table of Contents
- Description
- High-Resolution Capture and Streaming
- SmartShoot AI Preset Tracking
- Versatile Motion Control
- Preset Storage and Remote Control
- Tally Light
- Software
AVer PTZ330 V2 Specs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel (3840 x 2160)
|
| Shutter Speed |
1 to 32,000 Seconds in Video Mode
|
| Optical Zoom Ratio |
30x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, RTMP, RTSP, TCP, UDP
3840 x 2160 1920 x 1080 1280 x 720 |
| Supported Control Protocols |
IP
IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |
| PoE Support |
PoE+ 802.3at
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
1400 TV Lines
|
| Sensor Resolution |
Effective: 8 Megapixel (3840 x 2160)
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1 to 32,000 Seconds in Video Mode
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
0.43 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: ATW, Auto, Manual, One Push
|
Lens
| Focal Length |
4.5 to 135mm
|
| Optical Zoom Ratio |
30x
|
| Field of View |
Horizontal: 62.3 to 2.5°
Diagonal: 69.2 to 2.8° Vertical: 37.3 to 1.4° |
| Maximum Aperture |
f/1.8 to 4.7
|
| Minimum Focus Distance |
Wide: 11.8" / 0.3 m
Telephoto: 47.2" / 1.2 m |
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45 / USB
3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI/USB: 2-Channel
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, MJPEG, RTMP, RTSP, TCP, UDP
3840 x 2160 1920 x 1080 1280 x 720 |
| IP Multi-Stream Support |
Simultaneous
H.264, H.265, MJPEG: 2160p, 1080p, 720p at 60p |
Control
| Presets |
256 via IP, IR, RS-232, VISCA, Pelco-P, Pelco-D
10 via IR |
| Move Speed |
Pan: 0.1 to 100°/sec
Tilt: 0.1 to 100°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR Pelco-D Pelco-P RS-232 RS-422 RS-485 VISCA |

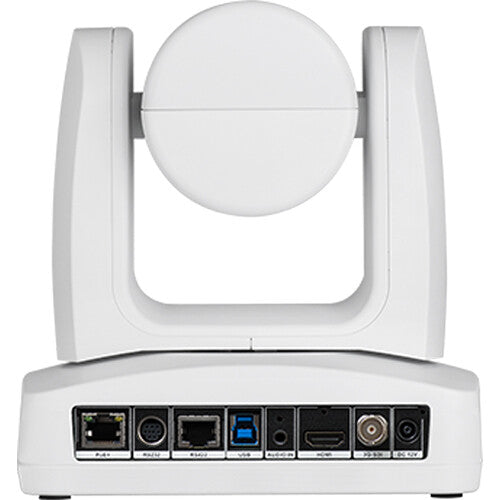

Interface
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x RJ45 (Unspecified Signal) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Input
1x RJ45 (RS-422) Input 1x RJ45 (LAN) Control/Data/Video Input (Shared with Power Input) |
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC at 2 A) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC at 1.5 A (19 W)
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 80%
|
| Storage Humidity |
20 to 95%
|
General
| OS Compatibility |
macOS 10.14 or Later
Windows 7 or Later 11 or Later |
| Mobile App Compatible |
Yes: iOS Only
App Name: PTZ Control Panel Functionality: Adjust Settings, Remote Control, View Live Feed |
| Security Lock Support |
Kensington Lock Slot
|
| Dimensions (W x H x D) |
7.6 x 7.1 x 5.7" / 192 x 180 x 145 mm
|
| Weight |
70.5 oz / 2 kg
|
