Description
AVMATRIX PTZ1270 Overview

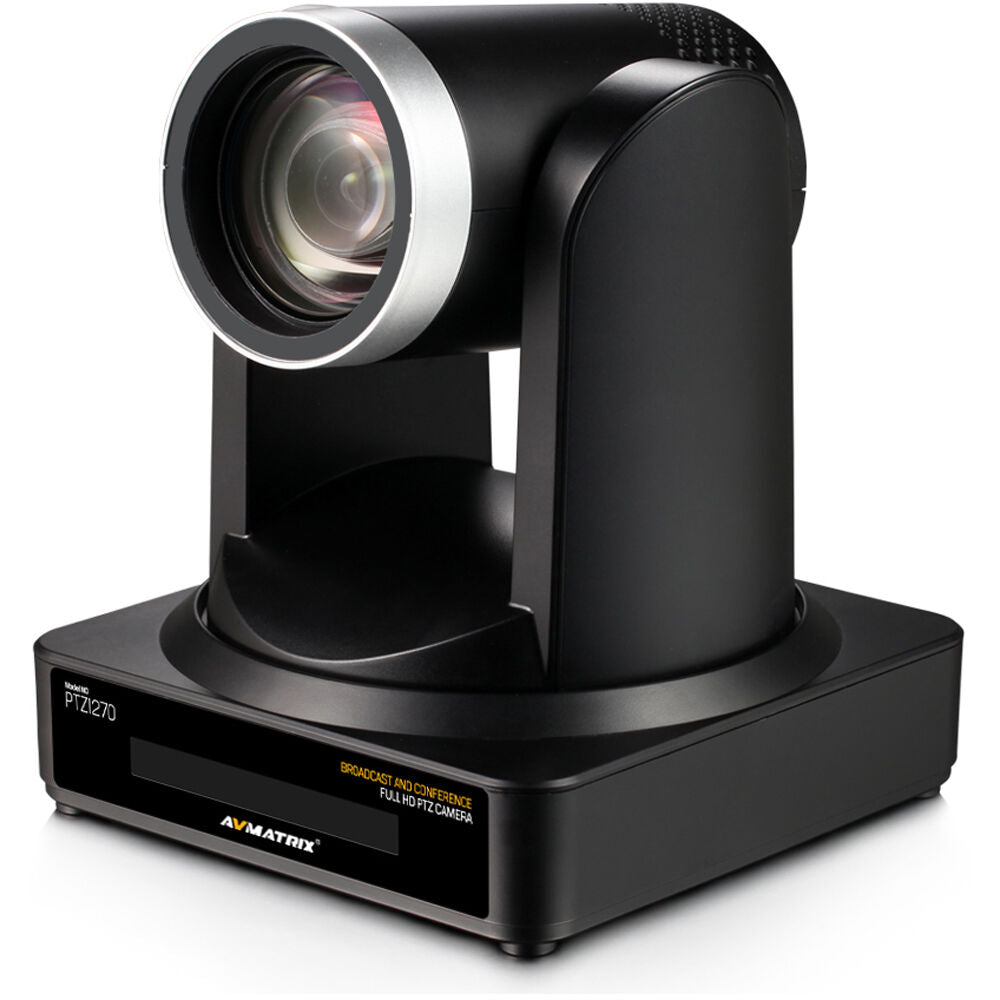

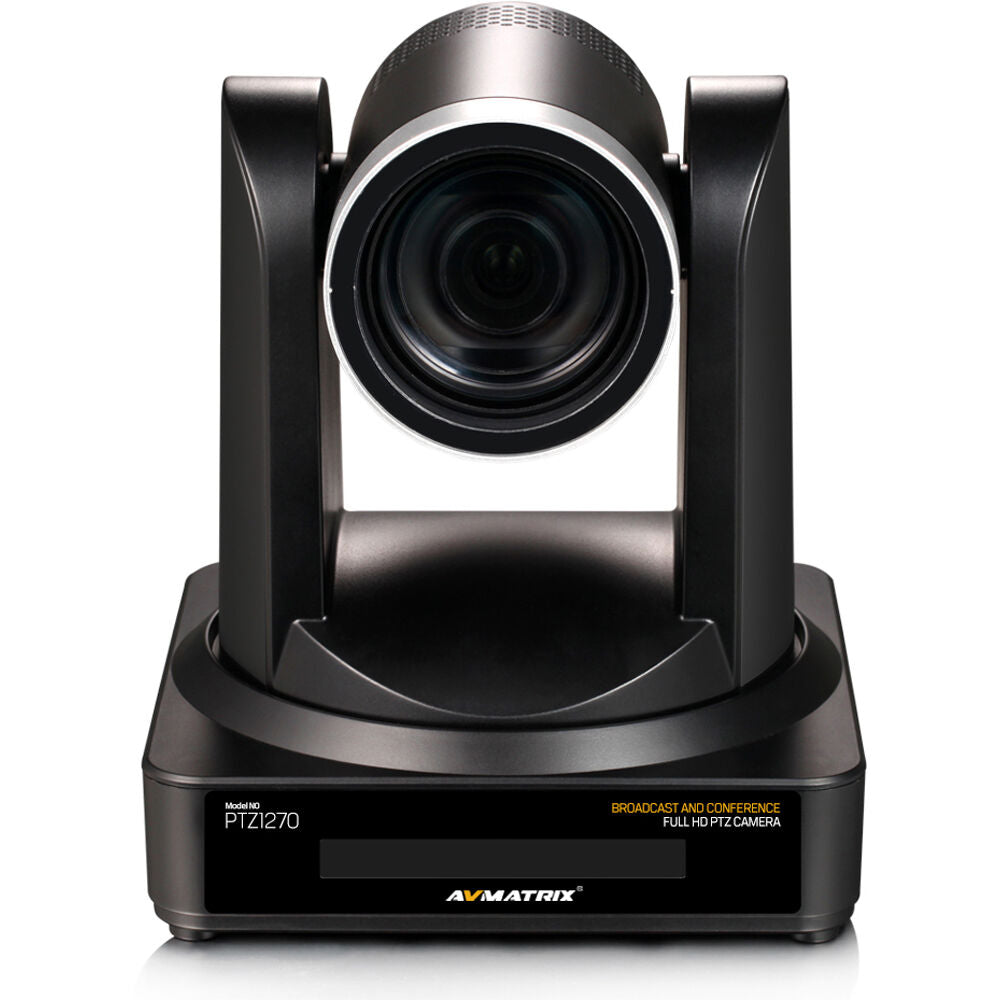

The black PTZ1270 Full HD PTZ Camera from AVMatrix offers precision control and multiple output ports offering up to 1080p60 video. Designed for broadcast, security, and teleconferencing needs, the PTZ1270 also supports VISCA, PELCO-D, and PELCO-P control protocols. The integrated f/1.8-2.8 lens offers 5x optical and 10x digital zoom functions. This camera supports up to 1080p60 video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. An NDI streaming option is available separately.
Power this PTZ camera using the the included 12 VDC adapter or via a separately available PoE option. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and gamma provide precision control of your images.
The PTZ1270 camera supports up to 255 presets with up to 10 selectable using the included IR remote control. A 1/4"-20 thread on the camera bottom can be used for mounting. The PTZ1270 also comes with an RS232 control cable.
Features
In the Box
- AVMATRIX PTZ1270 Full HD PTZ Camera (5x Optical Zoom)
- 12V Power Supply
- RS232 Control Cable
- Remote Control
- Limited 1-Year Warranty
AVMATRIX PTZ1270 Specs
| Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
| Effective Sensor Resolution | 1920 x 1080 (2.07 MP) |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| White Balance | 3000 to 6500K |
| Max Digital Zoom | 10x |
| Optical Zoom Ratio | 5x |
| Focal Length | 3.6 to 18mm |
| Field of View | 20 to 83.3° |
| Maximum Aperture | f/1.8 to 2.8 |
| Focus Control | Autofocus |
| Output Formats | SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps |
| IP Streaming | ONVIF, RTMP, RTSP: 1080p |
| Presets | 255 via RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Supported Control Protocols | Pelco-D Pelco-P VISCA |

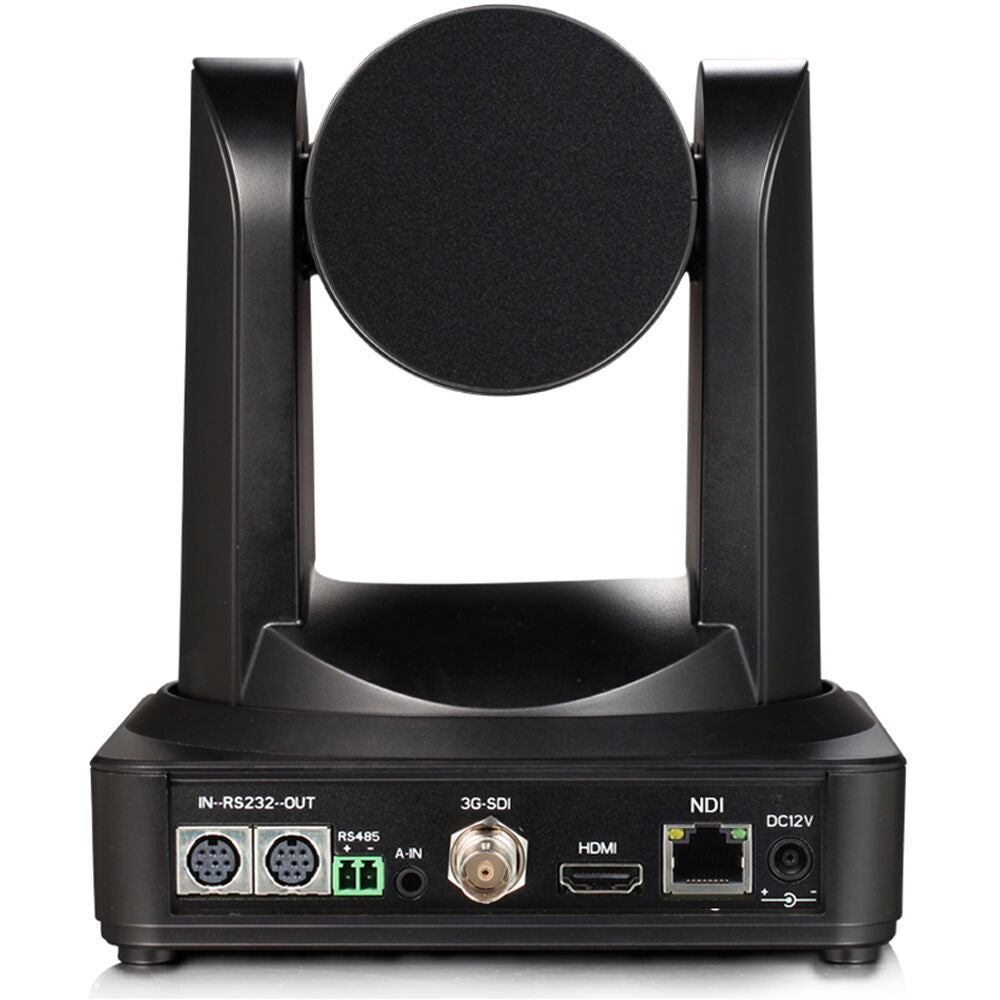

| Video Output Connectors | 1 x HDMI Type A (HDBaseT) 1 x BNC (3G-SDI) |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Line Level Input |
| Control Interface | 1 x RJ45 (Pelco-D, Pelco-P, VISCA) 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x 2-Wire (RS-485) |
| PoE Support | None |
| Power Connectors | 1 x Barrel / Coaxial (12 VDC at 1 A) |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| Tripod Mounting Thread | 1 x 1/4"-20 Female |
| Dimensions | 6.6 x 5.9 x 5.9" / 167.5 x 150 x 150 mm |
| Weight | 3.08 lb / 1.4 kg |
| Package Weight | 4.485 lb |
| Box Dimensions (LxWxH) | 10.4 x 9.8 x 9.1" |
