BirdDog X4 Ultra Overview
BirdDog X4 Ultra, It's Wi-Fly
Using Your BirdDog X1 � X1 Ultra, or X4 Ultra, on Wi-Fi.
By Photo's
Bruno Derlin

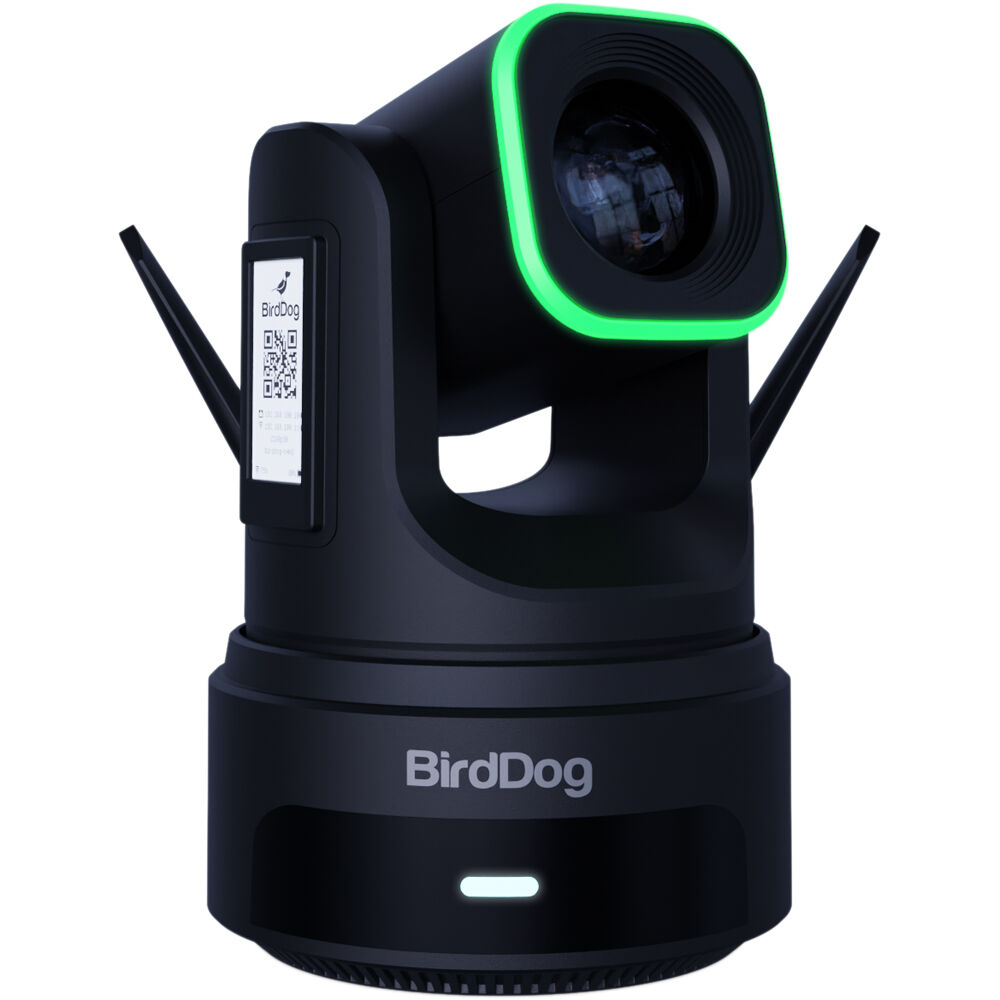

The black X4 Ultra 4K PTZ Camera with AI Tracking from BirdDog is a groundbreaking camera designed for today's broadcasters and content creators. It features NDI|HX3 technology, enabling high-quality, low-latency video streaming, making it an ideal solution for live productions. Equipped with Wi-Fi 6, the X4 Ultra delivers ultrafast wireless connectivity, while the built-in battery allows for shooting in any location.
The integrated HALO tally system provides clear, real-time status indicators, improving communication on set. Advanced AI controls enable smart automation, and the large 1/1.8" CMOS sensor captures a great amount of detail for vibrant, crystal-clear images. The optional base station supports wireless connectivity of up to four cameras, enabling flexible multi-camera setups. The X4 Ultra is a valuable tool for capturing breathtaking visuals, both in the studio and on the go, to bring your stories to life.

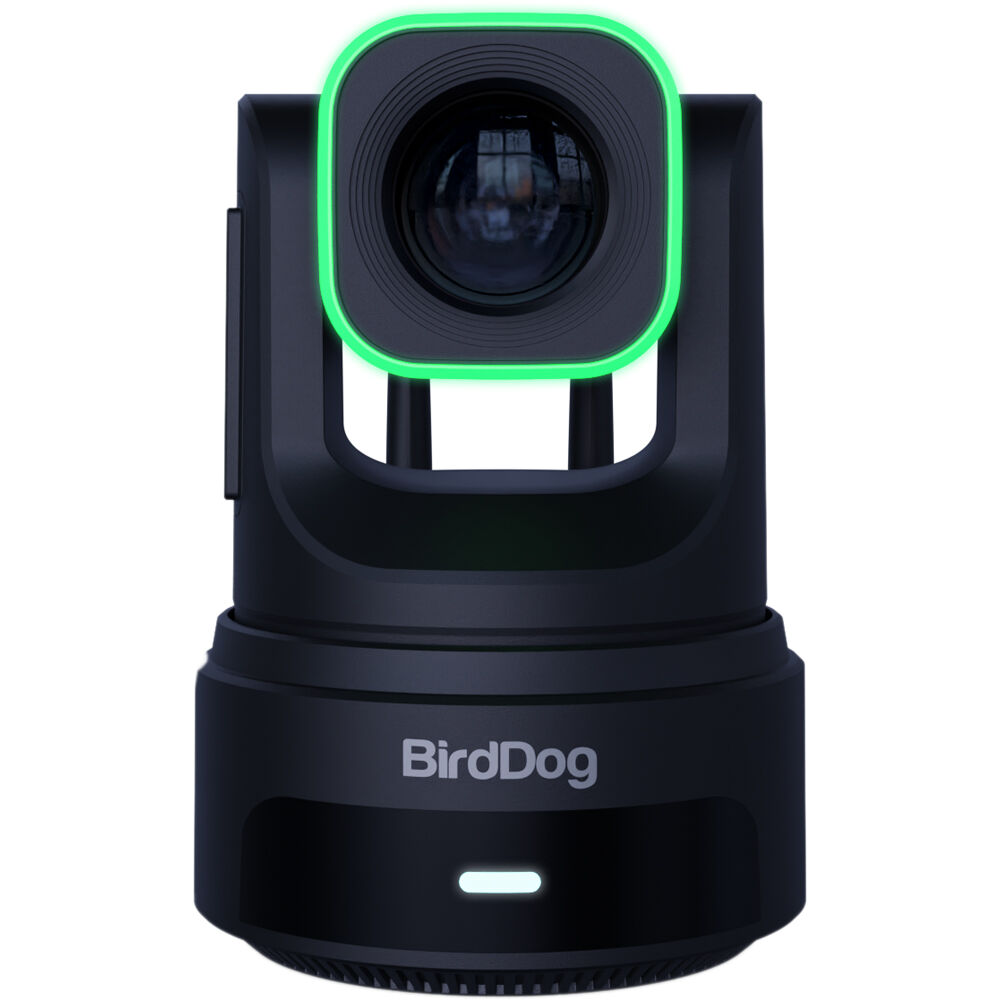

HALO Tally System
The X4 Ultra sports a visible and effective tally system. Surrounding the lens with a large, daylight-visible border, it keeps your talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.
AI Tracking
The X4 Ultra features AI controls that are designed to be easy to use, ensuring predictable and consistent performance with every shot. As your needs grow, the AI capabilities expand, adapting to deliver precise, automated control over your PTZ camera movements.
NDI|HX3 Support
The X4 Ultra delivers superior network performance via NDI|HX3, significantly reducing network impact while maintaining superior image quality. BirdDog's NDI|HX3 surpasses certification parameters, delivering quality and performance you can count on.
Wi-Fi Connectivity & Built-In Battery Power
The X4 Ultra features Wi-Fi 6 for fast, reliable wireless connectivity, ensuring smooth and stable streaming. Its built-in battery provides up to four hours of continuous operation, giving you the freedom to shoot on the go without worrying about power. The X4 Ultra's battery can be quickly recharged via USB, and you can extend its operation time by connecting it to a portable power source for uninterrupted shooting.
Features at a Glance
- Superior image quality with the latest Sony image sensor for enhanced low-light performance
- High frame rates with up to 4K60p performance
- Surrounding the lens with a large, daylight-visible border, the camera's HALO tally keeps your talent looking directly at the camera
- Remarkable control of AI tracking and automatic framing
- NDI|HX3 performance with guaranteed superior image quality and low latency
- Wi-Fi 6 technology for hassle-free connectivity for up to four cameras

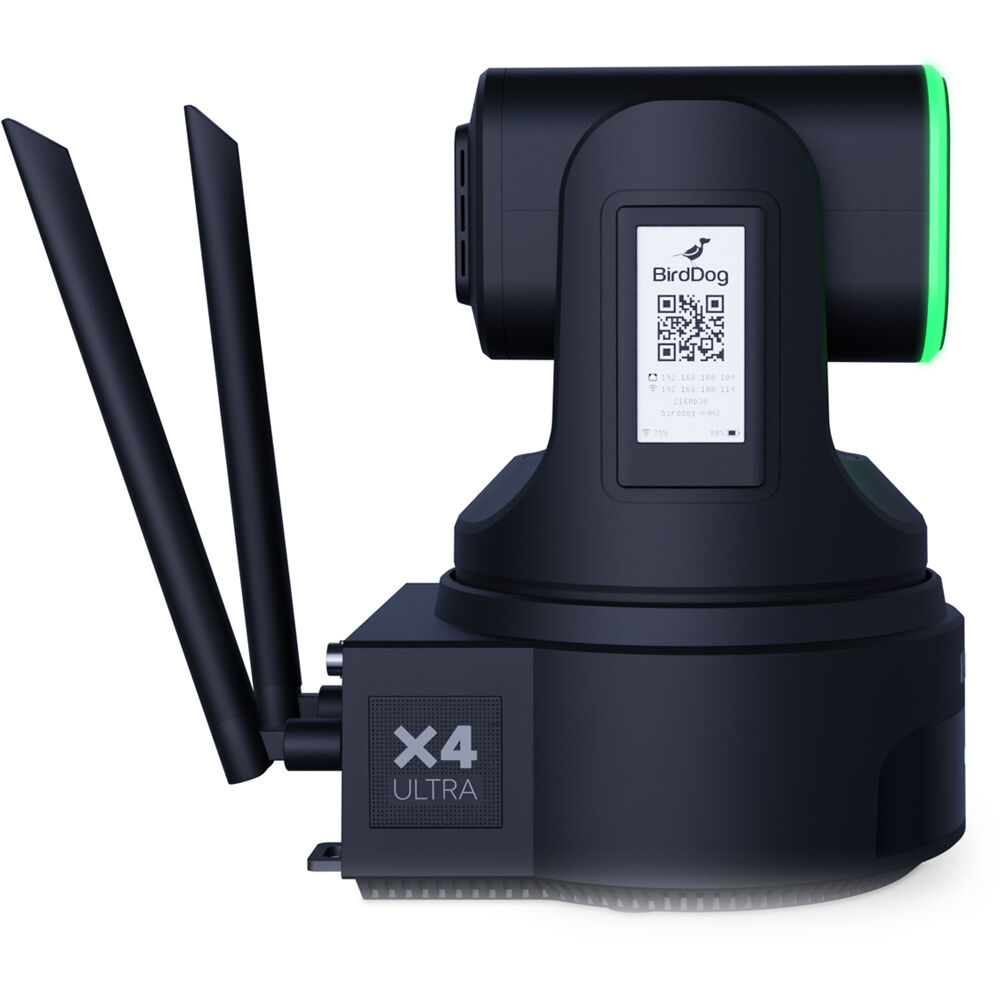

- Always-on e-ink label, featuring a QR code for easy navigation to camera WebUI controls
- NDI|HX and SRT/RTMP/RTSP protocols for seamless, on-premises and remote/CDN connectivity, offering ultimate flexibility in both streaming setups and video distribution
- Serial control with older control protocols, seamlessly integrating with your existing infrastructure
- USB-C port for connecting directly to Zoom, Teams, and most apps that support a USB UVC input
- IR remote included and hardware control support for BirdDog PTZ Keyboard, Skaarhoj, and more
- Compatible with BirdDog Central and BirdDog Cloud
Items Included
- BirdDog X4 Ultra 4K PTZ Camera with AI Tracking (Black)
- IR Remote
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
BirdDog X4 Ultra Specs
Key Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 8.42 Megapixel
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1280 x 720) at 59.94/60.00 fps SDI/BNC HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1280 x 720) at 59.94/60.00 fps |
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
NDI|HX2, NDI|HX3, RTMP, RTSP, SRT
3840 x 2160 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60p |
| Supported Control Protocols |
ONVIF Profile S
RS-232 VISCA |
| PoE Support |
PoE+ 802.3at
|
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Horizontal Resolution (TV Lines) |
2160 TV Lines
|
| Sensor Resolution |
Effective: 8.42 Megapixel
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Signal-to-Noise Ratio |
45 dB
|
Lens
| Focal Length |
6.25 to 125mm
|
| Optical Zoom Ratio |
20x
|
| Field of View |
Horizontal: 60 to 3.5°
Vertical: 35 to 2° Diagonal: 66.6 to 4° |
| Maximum Aperture |
f/1.58 to 3.95
|
Video Capture
| External Recording Modes |
HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1280 x 720) at 59.94/60.00 fps SDI/BNC HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94 fps HD (1280 x 720) at 59.94/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/NDI/SDI/USB/Wireless/NDI|HX2
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
NDI|HX2, NDI|HX3, RTMP, RTSP, SRT
3840 x 2160 at 25p, 29.97p, 30p, 50p, 59.94i, 59.94p, 60p |
Control
| Presets |
255
|
| Pan/Tilt |
Pan: 340° (-170 to 170°) at 1.7 to 80°/s
Tilt: 120° (-30 to 90°) at 1.7 to 60°/s |
| Tally Light |
Yes
|
| Supported Control Protocols |
ONVIF Profile S
RS-232 VISCA |

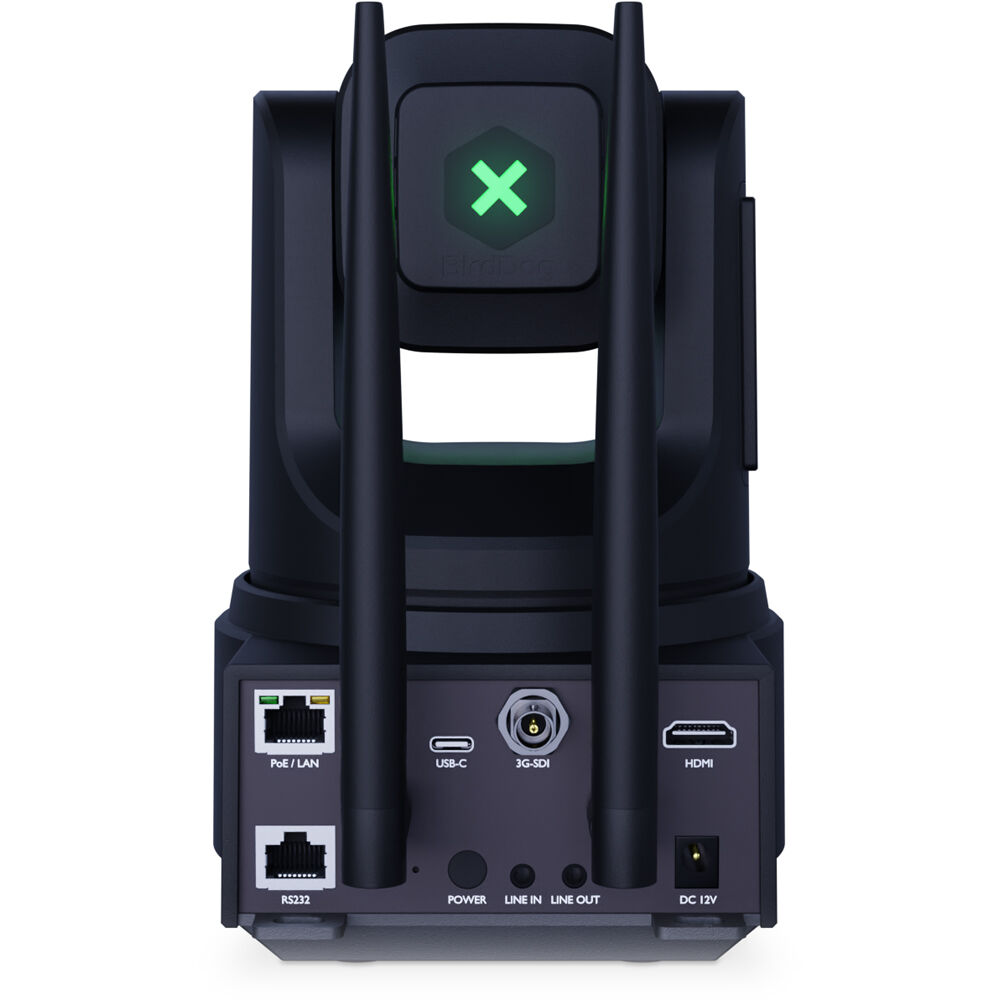

Interface
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output 1x USB-C (Unspecified Signal) Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
1x 1/8" / 3.5 mm TRS Stereo Line Output on Camera Body |
| Other I/O |
1x RJ45 (Ethernet)
1x RJ45 (RS-232) |
| Built-In Microphone |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC at 5 A) Input
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
General
| Dimensions (W x H x D) |
8 x 7.4 x 5.5" / 203.2 x 188.9 x 140.2 mm
|
| Weight |
4.83 lb / 2.19 kg (Body Only)
|
Packaging Info
| Package Weight |
8.235 lb
|
| Box Dimensions (LxWxH) |
11.7 x 10.3 x 10.1"
|
