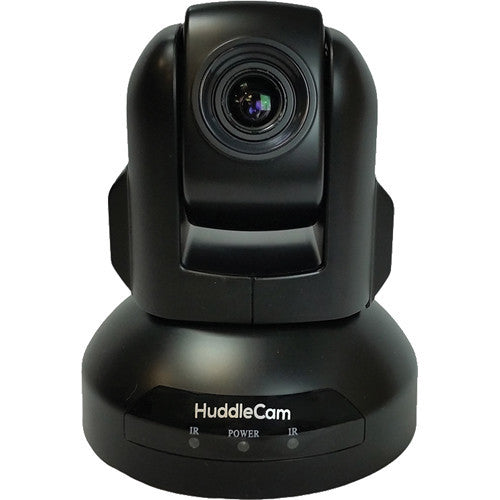

The HuddleCamHD 2.1 MP 3x Indoor USB 2.0 PTZ Camera incorporates a 1/3� CMOS sensor that captures clear images up to 1920 x 1080 resolution at a full frame rate of 30 fps. The camera is suited for small to medium sized meeting rooms. This camera is compatible with every system that accepts USB cameras. The camera is equipped with a 5-50mm f/2.0-2.8 lens.
- 3x optical zoom
- Supports up to 1920 x 1080p resolution
- 81° field of view at widest setting
- Frame rate of up to 30 fps
- 64 presets
- Tripod mount included
UPC: 615953137392
| Camera |
| Image Sensor | 1/3" CMOS, 2.1 MP |
| Frame Rate | 30 fps, 1920 x 1080p |
| Zoom | 3x Optical Zoom |
| Focal Length | 5-50 mm |
| Aperture | f/2.0-2.8 |
| Field of View | 81° at Widest Setting |
| Pan/Tilt |
| Pan Movement | ±359° |
| Tilt Rotation | +240° |
| Presets | 64 |
| Electrical |
| Power Supply | 12 VDC 2 A |
| Input Voltage | 12 VDC (10.5 to 14 VDC) |
| Input Power | 24 W (Max) |

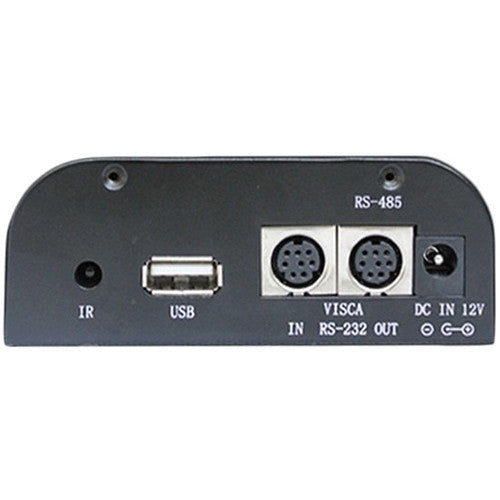

| Connectors |
| USB | 1 x USB 2.0 |
| Controller Interface | 1 x Mini DIN-8 (VISCA IN, VISCA OUT/RS485) |
| Controller Configuration | IDip-Switch Pin 7/TTL Signal |
| Baud Rate | 9600 bds |
| Power Supply | 12 VDC, 2 A |
| General |
| Material of Construction | Aluminum, Plastic |
| Environment | Indoor |
| Temperature | 32 to +113°F (0 to 45°C)
Power Supply: -14 to 140°F (-25.5 to 60°C) |
| Dimensions (W x H x D) | 4.88 x 5.75 x 4.75" (123.9 x 146.05 x 120.65 mm) |
| Packaging Info |
| Package Weight | 3.9 lb |
| Box Dimensions (LxWxH) | 8.8 x 8.7 x 7.2" |
In the Box
HuddleCamHD 2.1MP 3x Indoor USB 2.0 PTZ Camera
- 12 VDC /2 A Power Adapter
- USB 2.0 Data Cable
- 9' Serial Control Cable
- RS-232C to RS-485 Cable

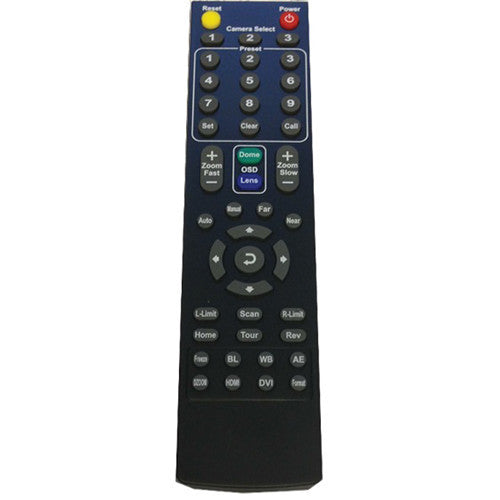

- IR Remote Control
- Tripod Mount
- Limited 2-Year Warranty
