Description
PTZCam UV510A Overview

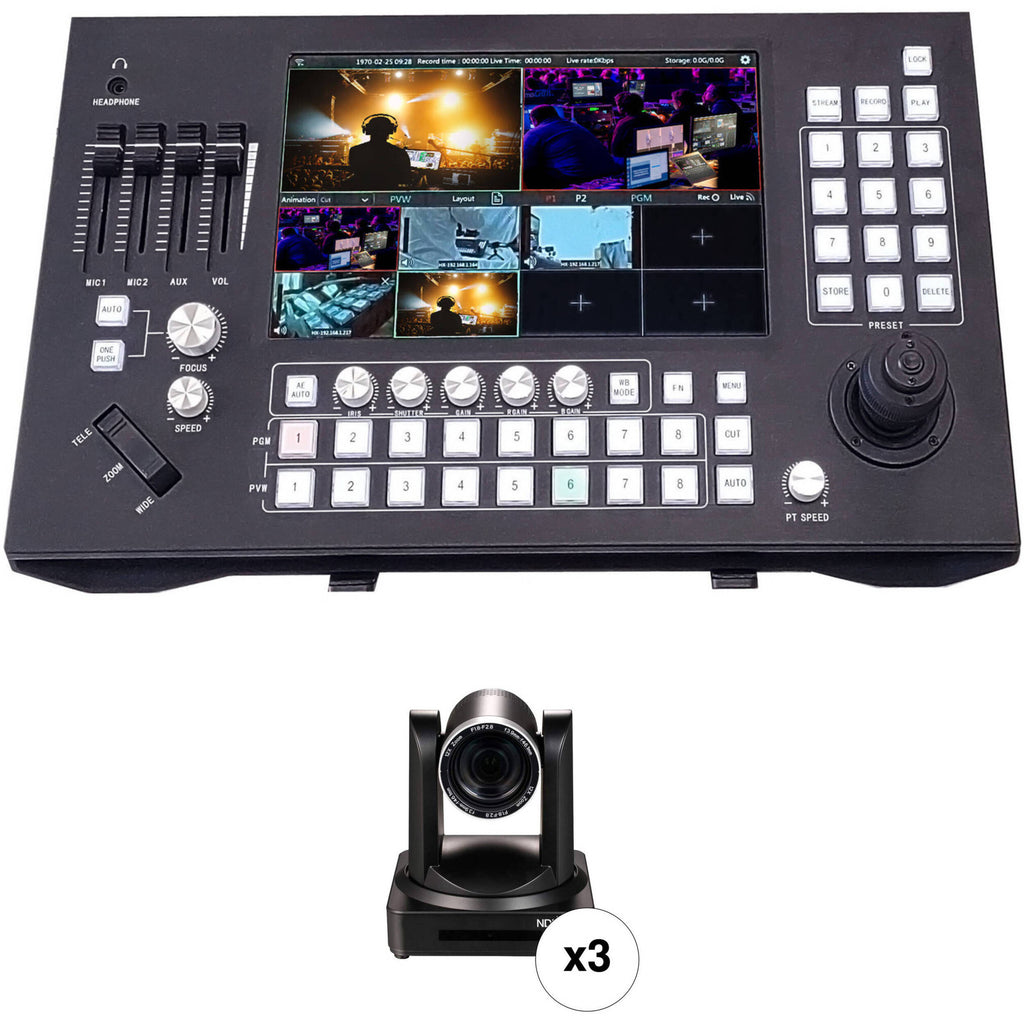

Create a complete PTZ ecosystem with NDI-powered control using this PTZCam Switch N8 8-Channel NDI Switcher and 3 x UV510A PTZ Camera Kit from . Included in the kit are three UV510A PTZ camera units that feature 20x optical zoom and can capture up to 1920 x 1080p60 video. Live stream, record, playback, and control the PTZ cameras with the Switch N7 7-Channel NDI Switcher and its PTZ joystick and push-button interface.

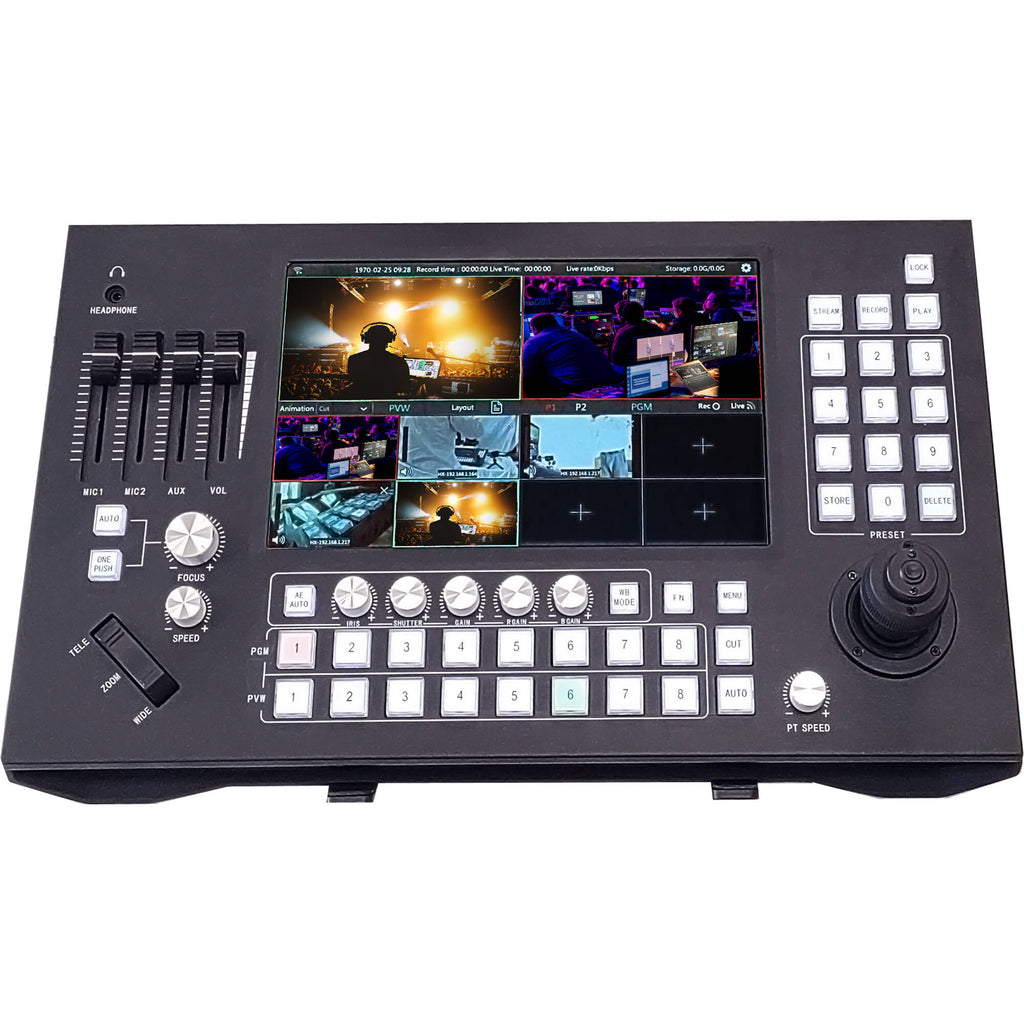

Designed for single-operator use, the Switch N8 8-Channel NDI|HX2|HX3 Switcher and PTZ Controller from PTZCam provides full video production control, including PTZ moves, dual IP streaming, color correction, graphics overlays, audio input/output, and both recording and playback options for NDI|HX2|HX3 PTZ cameras. This switcher/controller incorporates a 10.1" touchscreen interface, a PTZ joystick, a zoom rocker, and push-button controls.
- Control and switch between up to eight NDI|HX2 or NDI|HX3 PTZ cameras or other devices.
- Supports PTZ moves, focus, exposure, white balance, and preset position control.
- Live H.264/H.265 streaming to two independent locations like YouTube and Facebook Live using separate encoding profiles.
- Monitor and switch your sources easily using the integrated 10.1" touchscreen, no exterior display required.
- Control options include the touchscreen interface, a PTZ joystick, a separate zoom rocker, and push buttons.
- Use the Switch 8's dual USB 3.0 ports for video recording and clip playback.
- Use the switcher interface to add professional-looking text and custom logos.
Add a camera to your conference room for remote meetings with software such as Skype, Microsoft Teams, or Zoom with this UV510A HDMI/3G-SDI/NDI PTZ Camera with 20x Optical Zoom from PTZCam. The PTZ camera features resolutions up to 1080p60, a 1/2.8" HD CMOS sensor, and an integrated 20x optical zoom lens to capture crisp imagery for your classroom, meeting room, or web conference. The camera offers multiple video output options including HDMI, 3G-SDI, RJ45 Ethernet RTSP streaming, and NDI|HX low-bandwidth, high-quality streaming.
In addition to HDMI and SDI output up to 1080p60, the camera will fit seamlessly into your NDI network and communicate with other NDI applications and hardware. You can set the camera to rapidly move between positions using IP RS-485, or RS-232 control with separately available controllers, and it also supports cascading over RS-232. The camera supports H.264 compression and it transmits IP video streams using ONVIF, RTSP, and RTMP protocols. The camera features a 3.5mm analog audio input and it supports AAC, MP3, and PCM audio compression and embedding over HDMI, 3G-SDI, and NDI|HX.
In the Box
- PTZCam Switch N8 8-Channel NDI|HX2|HX3 Switcher and PTZ Controller
- Limited 1-Year Manufacturer Warranty
- 3 x PTZCam UV510A HDMI/3G-SDI/NDI HX PTZ Camera with 20x Optical Zoom
- Limited 1-Year Manufacturer Warranty
PTZCam Switch N8 8-Channel NDI|HX2|HX3 Switcher and PTZ Controller Specs
| Processing Resolution |
1080p at 60
|
| Video Inputs |
1x RJ45 (NDI|HX2, NDI|HX3)
1x HDMI |
| Input Video Format |
HDMI / RJ45
1080p up to 60 fps |
| Audio Inputs |
1x 2RCA Stereo
2x 1/4" TRS Stereo |
| Embedded Audio Input |
RJ45
HDMI |
| Video Outputs |
1x RJ45 (RTMP/RTSP)
1x HDMI |
| Output Video Format |
HDMI
1080p at 60 fps RJ45 1080p at 60 fps 720p at 60 fps |
| Audio Outputs |
1x 2RCA Stereo
2x 1/4" TRS Stereo |
| Embedded Audio Output |
HDMI
RJ45 |
| Other I/O |
2x USB-A 2.0
1x DE-9/DB-9 Tally Output |
| IP Video |
H.264/H.265:
1920 x 1080 at 60p (512.00 to 16,384 Kb/s) Encoding, Decoding |
| IP Audio |
Encoding, Decoding
|
| Transport Protocols |
RTMP, RTSP
|
| Simultaneous Streams |
2 Streams
|
| Recording Media |
2 x USB-A 3.0 / 3.1/3.2 Gen 1
|
| Display Size |
10.1"
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel (12 VDC) Input
|
| Power Consumption |
3 A36 W
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
14 to 122°F / -10 to 50°C
|
| Dimensions |
16.5 x 10.14 x 4.8" / 420 x 257.52 x 121.2 mm
|
| Weight |
4 lb / 1.8 kg
|
| Package Weight |
9.69 lb
|
| Box Dimensions (LxWxH) |
18.7 x 13.2 x 6.1"
|
PTZCam UV510A HDMI/3G-SDI/NDI HX PTZ Camera with 20x Optical Zoom Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| Shutter Type |
Electronic Rolling Shutter
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45
1920 x 1080p at 29.97/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI|HX, ONVIF, RTMP, RTP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60i, 60p 1280 x 720 at 25p, 29.97p, 30p, 50p, 59.94p, 60p |
| Supported Control Protocols |
IP
RS-232 RS-485 VISCA |
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Type |
Electronic Rolling Shutter
|
| White Balance |
Presets: Auto
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45
1920 x 1080p at 29.97/59.94 fps |
| Audio Recording |
Yes
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, H.265, NDI|HX, ONVIF, RTMP, RTP, RTSP, SRT
1920 x 1080 at 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60i, 60p 1280 x 720 at 25p, 29.97p, 30p, 50p, 59.94p, 60p |
