Description

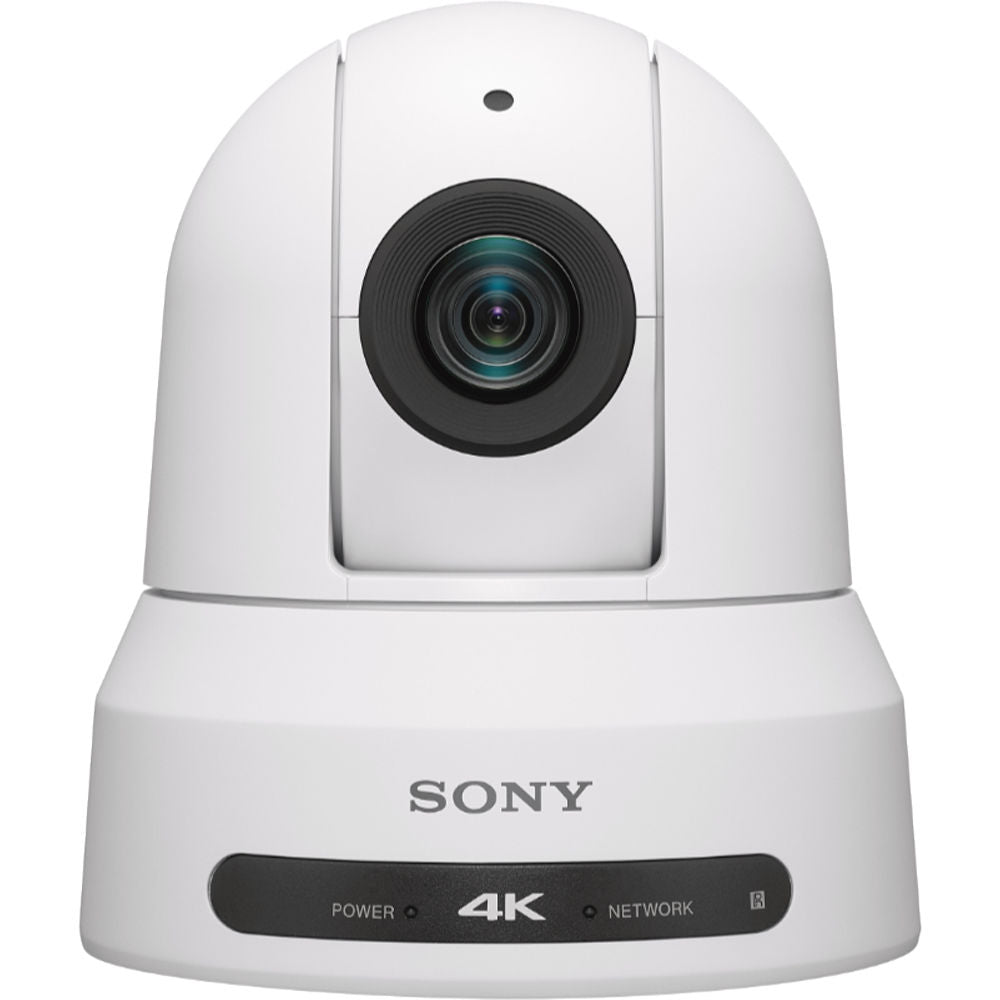

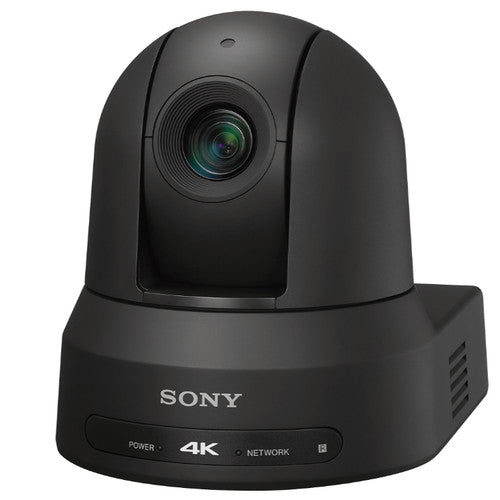

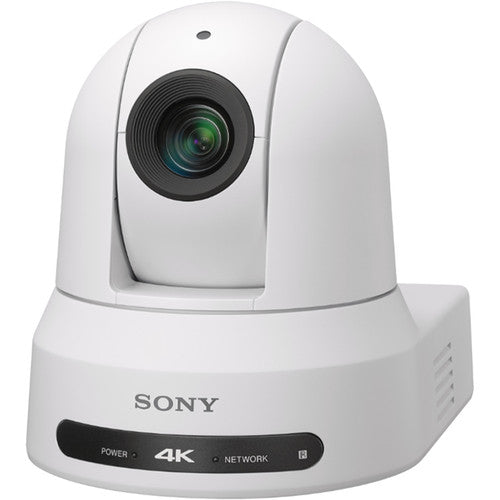

Sony BRC-X400 Overview
Sony 4K PTZ Camera BRC-X400 - Wide viewing angle with up to 80x zoom Sony 4K PTZ Camera BRC-X400 / SRG-X400 - IP Streaming Excellent Performance Sony 4K PTZ Camera BRC-X400 / SRG-X400 - Excellent images, even in low light
Capture every point of view in 4K with the white BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output from Sony . Featuring an 8.3MP CMOS sensor and a 4.4 to 88mm lens, the camera captures video at resolutions up to 3840 x 2160 at 60 fps in a field of view of up to 70°. Clear Image Zoom Technology can extend the 20x optical to up to 80x, allowing for frame-filling close-ups in Full HD.
The integrated pan/tilt system allows for 340° panning and 110° tilting at up to 300° and 126° per second respectively. Focusing can be performed manually or set to automatic. The camera outputs video via its HDMI, IP, and 3G-SDI interfaces. PoE+ technology simplifies setup by enabling you to power the camera directly via its network connection. An IR remote commander, mounting hardware, and an HDMI clamp are included in the package.
Key Features
1/2.5" Exmor R sensor for UHD 4K images with very low noise, even in dimly-lit environments down to 1.6 lux
20x optical zoom
Up to 30x total zoom in 4K with Clear Image Zoom
Up to 80x total zoom in Full HD with Clear Image Zoom in Tele Convert Mode
Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings
Horizontal viewing angle of approximately 70° for covering the whole scene in large venues such as sport arenas and lecture theaters
NDI|HX compatibility via optional license
PTZ and other camera functions can be controlled remotely via S700PTP, CGI, and VISCA protocols
RTSP (Real Time Streaming Protocol) support for remote viewing over the internet from a web browser
PoE+ simplifies installation�a single IP cable can carry camera power, video image output, and control signals
Genlock allows seamless multi-camera switching in live events
Built-in tally lamp for use in live productions, reality shows, and more
Camera Features
Day/night, visibility enhancer, image stabilization, image flip, picture profile preset
Color gain (15-step), color hue (15-step)
Color matrix modes include Standard, High Saturation, FL Light, Movie, Still, Cinema, Pro, ITU709, and B&W
Gamma modes include Standard, Straight, 512 Pattern, Movie, Still, Cine1, Cine2, Cine3, Cine4, and ITU709
Gamma level (15-step), black level (97-step), black gamma (15-step)
Knee point (15-step), knee slope (15-step), flicker cancel (on/off)
UPC: 027242918054
In the Box
- Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (White)
- AC Power Adapter
- IR Remote Commander
- 2 x Ceiling Brackets
- Wire Rope
- 9 x M3x8 Mounting Screws
- M2.6x6 Screw
- HDMI Cable Clamp
- Limited 2-Year Warranty
Sony BRC-X400 Specs
Image Sensor
| Image Sensor | 1-Chip 1/2.5" CMOS Sensor |
| Horizontal Resolution (TV Lines) | 1700 TV Lines |
| Sensor Resolution | 3840 x 2160 (8.3 MP) |
| Gain | 0 to 48 dB |
| Minimum Illumination | 1.6 lux at 1/30 Shutter Speed |
Camera
| Shutter Speed | 1/1 to 1/10,000 sec |
| Max Digital Zoom | 80x ( in 1080p) |
| Flip / Mirror Support | Image Flip |
Lens
| Optical Zoom Ratio | 20x |
| Focal Length | 4.4 to 88mm |
| Field of View | Horizontal: 70° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focusing Distance | Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm |
| Focus Control | Autofocus Manual Focus |
Video Output
| Output Formats | HDMI, RJ45: 3840 x 2160p at 23.98, 25, 29.97 fps 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50 fps 1280 x 720p at 50, 59.94 fps SDI: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
Recording
| Recording Modes | Not Specified by Manufacturer |
Control
| Presets | 256 via IP 100 via VISCA |
| Move Speed | Pan: 0.5 to 300°/s Tilt: 0.5 to 126°/s |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP RS-422 VISCA |

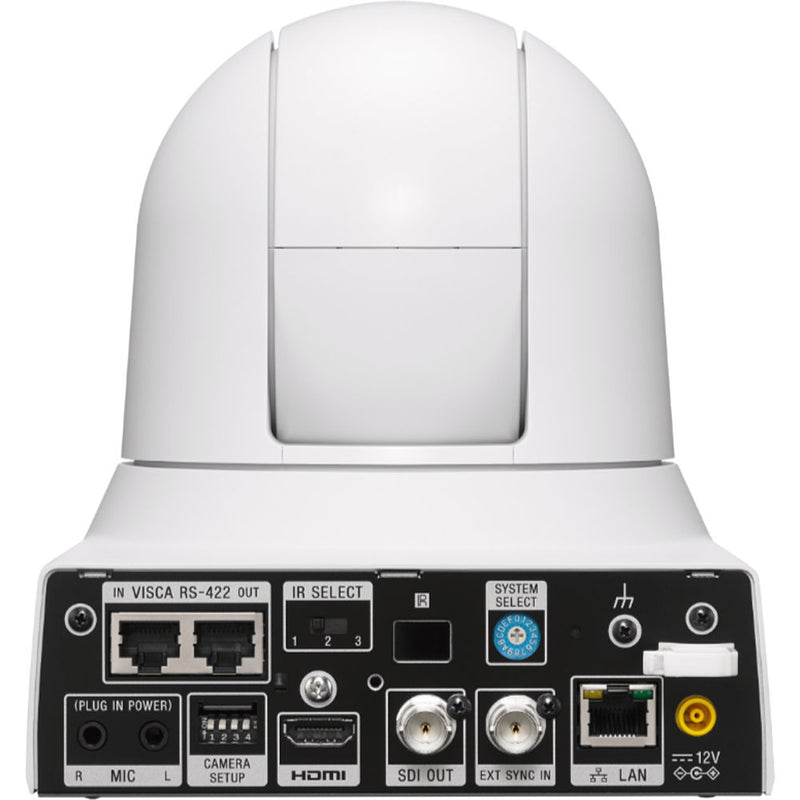

Interfaces
| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 Female |
| Audio I/O | 2 x 1/8" / 3.5 mm Stereo Mic/Line Level Input |
| Control Interface | 1 x RJ45 (RS-422, VISCA) Input 1 x RJ45 (RS-422, VISCA) Output |
| Other I/O | 1 x BNC (Sync) Input |
Power
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x JEITA (10.8 to 13.2 VDC) |
| Power Consumption | 25.5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Tripod Mounting Thread | 1 x 1/4"-20 Female |
| Dimensions | 7.88 x 6.99 x 6.24" / 200.2 x 177.5 x 158.4 mm |
| Weight | 3.97 lb / 1.8 kg |
Packaging Info
| Package Weight | 8.185 lb |
| Box Dimensions (LxWxH) | 13.1 x 12.7 x 12.1" |
