Description
WyreStorm CAM-210 Overview
- 1Description
- 2
- 3Auto Framing & Auto Tracking
- 4Plug-and-Play Compatibility
- 5Triple Outputs
- 6Wide Lens
- 7Advanced PTZ Options
- 8Flexible Control
By Photo's
Mary Latvis
The

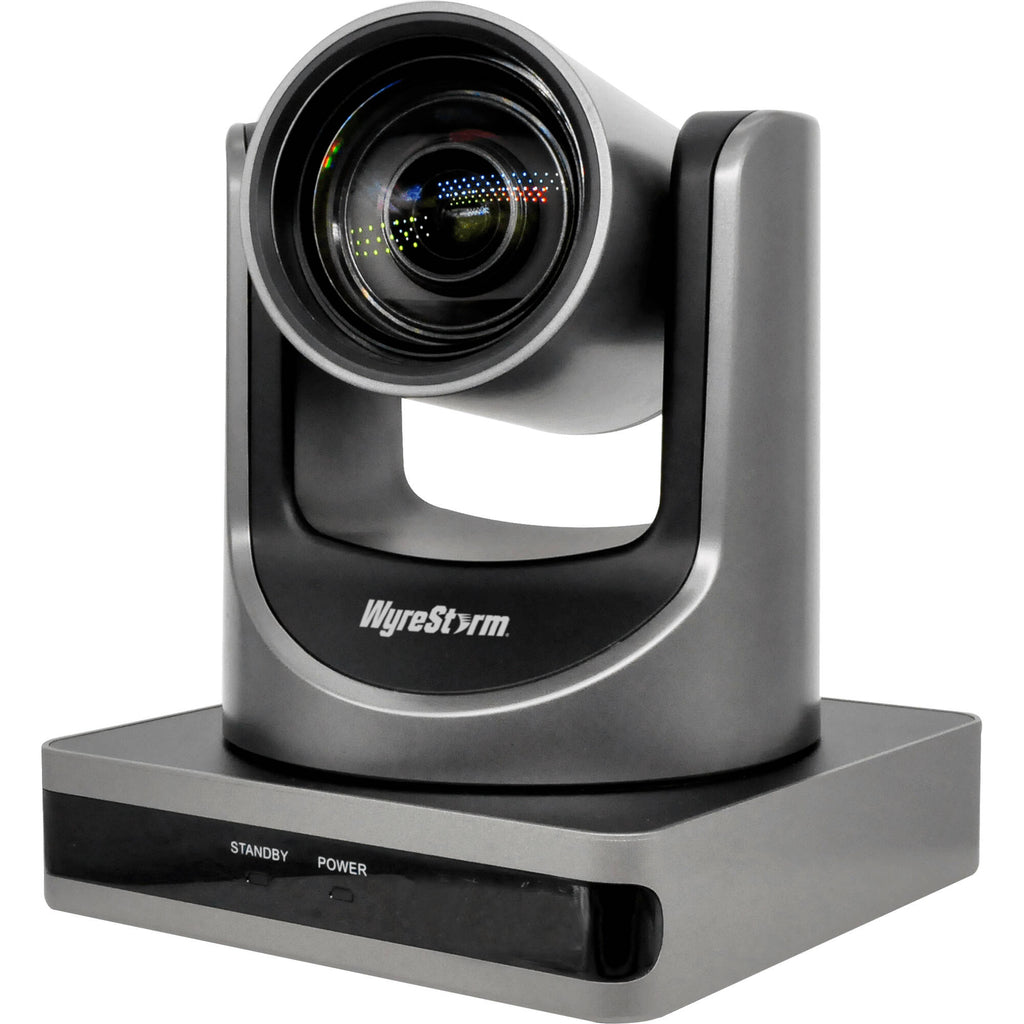

CAM-210-PTZ 1080p USB 3.0 PTZ Conferencing Camera from
WyreStorm provides a premium videoconferencing camera solution with 12x optical zoom, smooth pan/tilt moves, and both auto-framing and auto-presenter tracking. It features a 1/2.7" CMOS sensor and both USB 3.0 Type-C and LAN outputs that can transmit up to 1080p video at 60 fps. The camera interface also incorporates an HDMI monitor output, 3.5mm audio input, and 8-pin Mini-DIN port for RS-232 control.
Auto Framing & Auto Tracking
- Keep your subjects in frame using the CAM-210-PTZ's auto-framing function.
- Use the auto-tracking function to keep an active presenter within the frame.
Plug-and-Play Compatibility
- The CAM-210-PTZ camera features easy, plug-and-play, driverless setup.
- It offers compatibility with popular software like Skype, Teams, Zoom, and more.
Triple Outputs
- Transmit up to 1080p60 video via USB 3.0, a LAN network connection, and an HDMI monitor output.
- Use the USB 3.0 Type-C port to connect locally to a computer to a WyreStorm presentation switcher, while sending a video feed over the network to an NVR or streaming platform.
- Network output supports HTTP, RTSP, RTMP, and multicasting.
Wide Lens
- The 72.5° lens provides a wide-angle view of your entire space and offers 12x optical and 16x digital zoom.
Advanced PTZ Options
- A high-grade pan and tilt motor provides extremely smooth camera movements.
- Advanced configuration options enable you to adjust the motor speed, resolution, frame rate, brightness, contrast, and more.
- Save and recall camera position and zoom presets.
Flexible Control
- Control the camera via the 8-pin mini-DIN port with RS-232 protocol, the LAN connection, or the included IR remote.
- Advanced settings can be accessed through the integrated web interface or the available software management suite.
In the Box
- WyreStorm CAM-210-PTZ 1080p60 PTZ Camera with 12x Optical Zoom & Auto-Framing/Tracking
- Power Supply (12 VDC, 1A, US/UK/EU/AU)
- IR Remote
- Wall Mount
- 8-Pin Mini-DIN RS-232 Cable (6.6')
- USB 3.0 Type-B Host Cable (4.9')
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Auto Framing & Auto Tracking
- Plug-and-Play Compatibility
- Triple Outputs
- Wide Lens
- Advanced PTZ Options
- Flexible Control
WyreStorm CAM-210 Specs
Key Specs
| Image Sensor |
1/2.7"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| Shutter Speed |
1/10000 to 1/30 Seconds
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
16x
|
| External Recording Modes |
HDMI / RJ45 / USB
1920 x 1080p up to 60.00 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
HTTP, RTMP, RTMPS, RTSP
1920 x 1080 at 30p |
| Supported Control Protocols |
IR
RS-232 VISCA |
Imaging
| Image Sensor |
1/2.7"-Type CMOS
|
| Sensor Resolution |
Effective: 2.07 Megapixel
|
| IR Cut Filter |
No
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
|
Exposure Control
| Shutter Speed |
1/10000 to 1/30 Seconds
|
| Precise Scan Rate Control |
No
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.5 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Presets: Auto, Indoors, Manual, One Push, Outdoors
|
Lens
| Focal Length |
3.5 to 42.3mm
|
| Optical Zoom Ratio |
12x
|
| Max Digital Zoom |
16x
|
| Field of View |
Horizontal: 72.5°
Vertical: 44.8° |
| Maximum Aperture |
f/1.8 to 2.8
|
| External Recording Modes |
HDMI / RJ45 / USB
1920 x 1080p up to 60.00 fps |
| Embedded Audio |
LAN (RJ45)/USB
|
| Audio Recording |
Yes
|
| Broadcast Output |
NTSC
|
| IP Streaming |
HTTP, RTMP, RTMPS, RTSP
1920 x 1080 at 30p |
| IP Multi-Stream Support |
Simultaneous
H.265, MJPEG: 1080p at 30p |
Control
| Move Speed |
Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 44.8° |
| Tally Light |
Yes
|
| Supported Control Protocols |
IR
RS-232 VISCA |
| Max Cable Length |
6.6' / 2 m (USB)
49.2' / 15 m (USB) 328.1' / 100 m (Cat 5e, Cat 6) 98.4' / 30 m (RS-232) |
Interface
| Video I/O |
1x RJ45 (Unspecified Signal) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1x HDMI (Unspecified Signal) Monitor Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (RS-232) Control
|
Power
| Power I/O |
1x Barrel (12VDC at 1 A) Input
|
| Power Consumption |
Device: 18 W
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
10 to 90% ()
|
| Storage Humidity |
10 to 90% (Non-Condensing)
|
General
| Certifications |
CE, FCC, RoHS, RCM, EAC
|
| Dimensions (W x H x D) |
6.6 x 5.7 x 5.7" / 168 x 144 x 144 mm
|
| Weight |
2.58 lb / 1.17 kg
|
