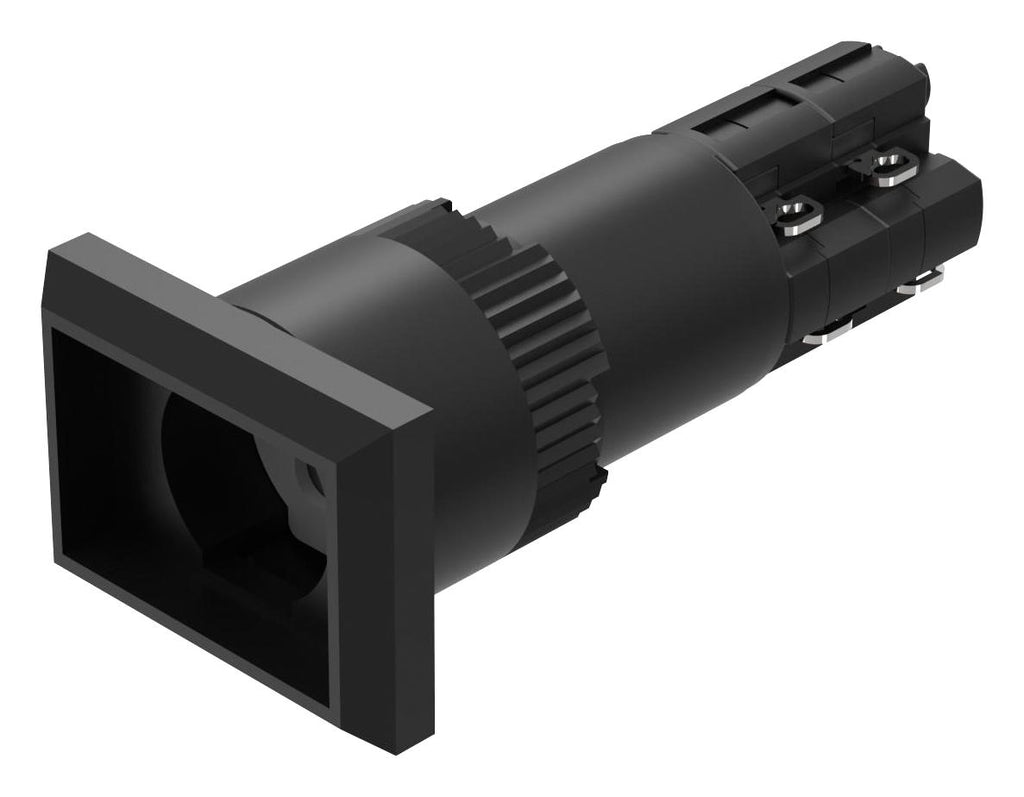

- Illuminated pushbutton actuator
- � 16mm mounting cut-out, raised design mounting
- Front dimension is 18mm x 24mm, rectangular front shape
- Black front bezel colour, plastic front bezel material
- IP40 IP front protection, solder terminal
- Momentary switching action, black housing colour, plastic housing material
- Snap-action switching element system
- 2 NC + 2 NO contacts, 250VAC switching voltage, 5A switching current
Product details
Product Range:
01 Series
|
Panel Cutout Diameter:
16.2mm
|
Contact Configuration:
DPST-NO, DPST-NC
|
Switch Operation:
Momentary
|
Pushbutton Actuator Style:
Rectangular Raised
|
Actuator / Cap Colour:
-
|
Contact Current AC Max:
5A
|
Contact Voltage VAC:
250V
|
Contact Current DC Max:
5A
|
Contact Voltage VDC:
250V
|
IP Rating:
IP40, IP67
|
Switch Mounting:
Panel Mount
|
Switch Terminals:
Solder
|
Illumination Colour:
-
|
Panel Cutout (H x W):
-
|
Other details
Brand |
EAO |
Part Number |
01-122.0252 |
Quantity |
Each |
Technical Data Sheet EN |
|
