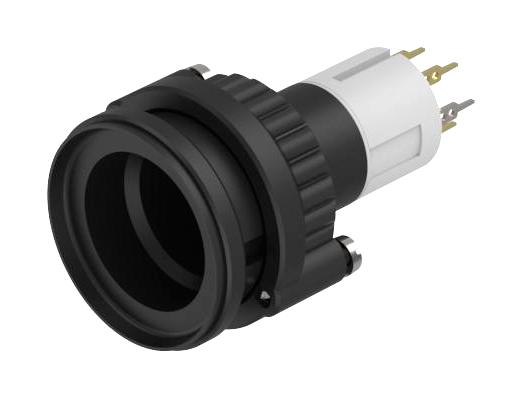

- Illuminated pushbutton switch with actuator
- � 22.3mm mounting cut-out, raised design
- � 29mm front dimension, round front shape, illuminative lens
- IP67 front protection, universal 2.0 x 0.5mm terminal
- Momentary switching action, black housing color, plastic housing material
- Low-level element switching system, 0.1A switching current
- 2 NO contacts, 42VAC/DC switching voltage
Product details
| Product Range:
14 Series
|
| Panel Cutout Diameter:
22.3mm
|
| Contact Configuration:
DPST-NO
|
| Switch Operation:
Momentary
|
| Pushbutton Actuator Style:
Round
|
| Actuator / Cap Colour:
-
|
| Contact Current AC Max:
100mA
|
| Contact Voltage VAC:
42V
|
| Contact Current DC Max:
100mA
|
| Contact Voltage VDC:
42V
|
| IP Rating:
IP67
|
| Switch Mounting:
Panel Mount
|
| Switch Terminals:
PC Pin, Solder Lug
|
| Illumination Colour:
-
|
| Panel Cutout (H x W):
-
|
Other details
| Brand |
EAO |
| Part Number |
14-431.036 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
