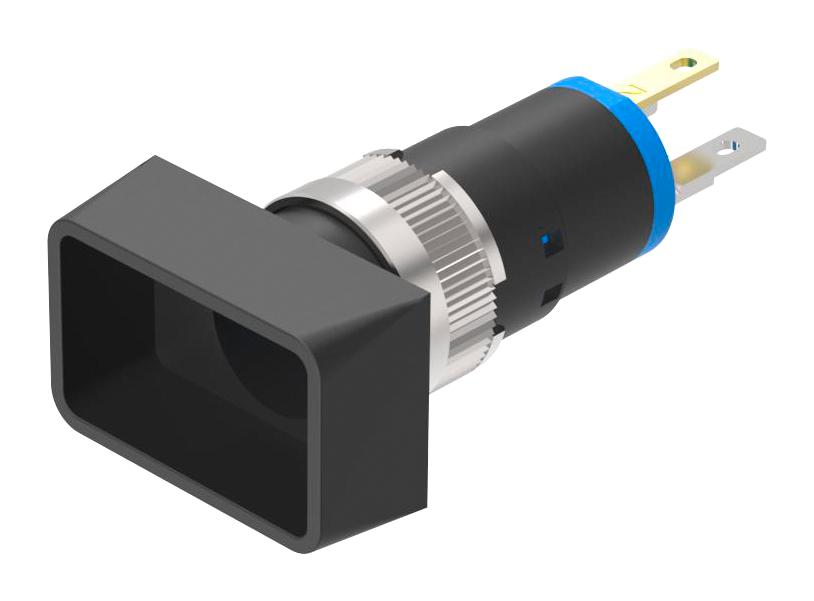

- Illuminated pushbutton switch with rectangular actuator
- Raised design, 14mm x 9mm front dimension
- IP40 IP front protection, � 8mm mounting cut-out
- 1 NO contacts, gold contact material, black front bezel color
- Plastic front bezel material, black housing color, plastic housing material
- Illuminative lens, momentary switching action, 0.1A switching current
- Snap-action switching element system, 42V switching voltage
- Soldering terminal, 42V at 0.1A switching rating
Product details
| Product Range:
18 Series
|
| Panel Cutout Diameter:
8mm
|
| Contact Configuration:
SPST-NO
|
| Switch Operation:
Momentary
|
| Pushbutton Actuator Style:
Rectangular Raised
|
| Actuator / Cap Colour:
-
|
| Contact Current AC Max:
100mA
|
| Contact Voltage VAC:
42V
|
| Contact Current DC Max:
100mA
|
| Contact Voltage VDC:
42V
|
| IP Rating:
IP40
|
| Switch Mounting:
Panel Mount
|
| Switch Terminals:
Solder Lug
|
| Illumination Colour:
-
|
| Panel Cutout (H x W):
-
|
Other details
| Brand |
EAO |
| Part Number |
18-147.035 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
