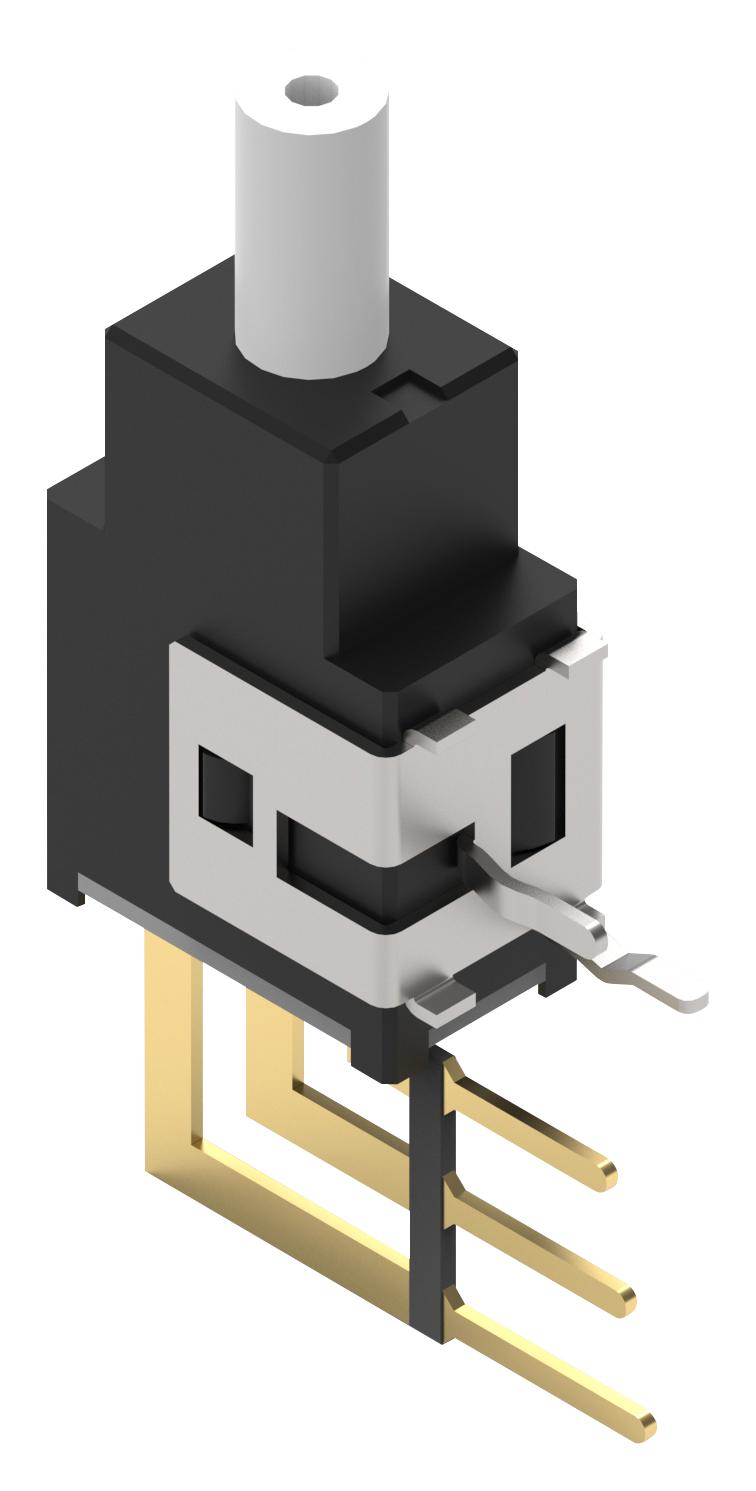

- WS-PBTU THT, 18.5 x 5.9mm, right angled pushbutton switch
- SPDT schematic, ON-(ON) switching function, auto-return actuation function
- 0.4VA rated, 50mohm contact resistance initial, 250g operation force (value)
- 500Mohm RISO, 500VAC withstanding voltage
- 30000 Cycles electrical life, 1.1mm total travel
- PA66 cover material, UL94 V-0 cover flammability rating
- Carbon steel spring material, copper alloy contact material
- Copper alloy terminal material, gold terminal plating
- Operating temperature range from -40 up to +85°C
Product details
| Product Range:
WS-PBTU Series
|
| Panel Cutout Diameter:
-
|
| Contact Configuration:
SPDT
|
| Switch Operation:
On-(On)
|
| Pushbutton Actuator Style:
Plunger for Cap
|
| Actuator / Cap Colour:
White
|
| Contact Current AC Max:
-
|
| Contact Voltage VAC:
28V
|
| Contact Current DC Max:
-
|
| Contact Voltage VDC:
28V
|
| IP Rating:
-
|
| Switch Mounting:
Through Hole
|
| Switch Terminals:
PC Pin, Right Angle
|
| Illumination Colour:
Non Illuminated
|
| Panel Cutout (H x W):
-
|
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
4.65032E+11 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
