Description
Atomos AtomX Cast Overview
- 1Description
- 2Compatibility
- 34-Input Switcher
- 4Mixed Feed Use
- 5Overlays & Graphics
- 6Atomos Connect Streaming
- 7Multiviewing
- 8HDMI Output
- 9Stream, Record & Monitor
- 10Buttons & Touchscreen
- 11Applications

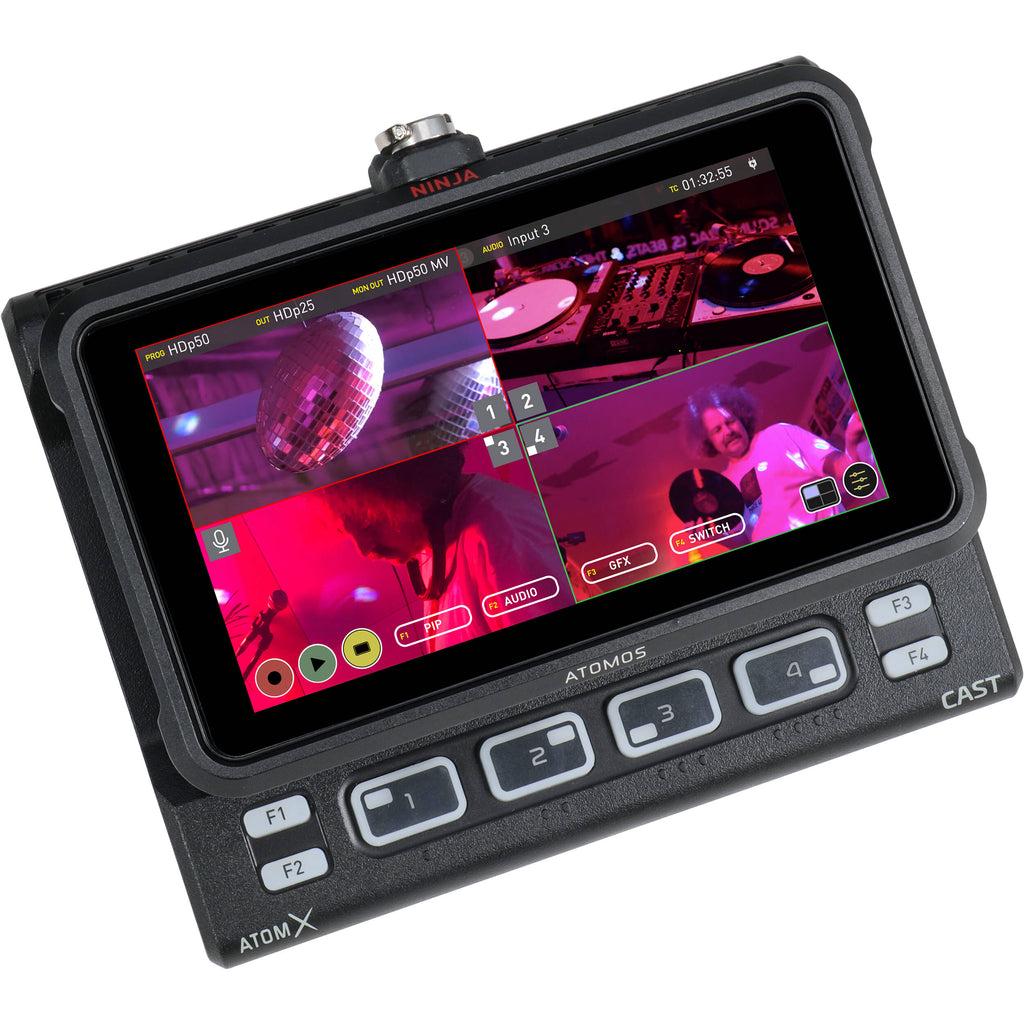

Convert your Ninja V or Ninja V+ 5" monitor into a full multi-camera broadcast studio switcher with the AtomX CAST from Atomos. The AtomX CAST takes its name from "broadcast", and it allows you to switch up to four HDMI video sources and output it to a variety of destinations such as an external monitor, a recorder, a separate switcher, or to a live streaming computer. Applications include corporate, house of worship, event, family, or studio production environments.

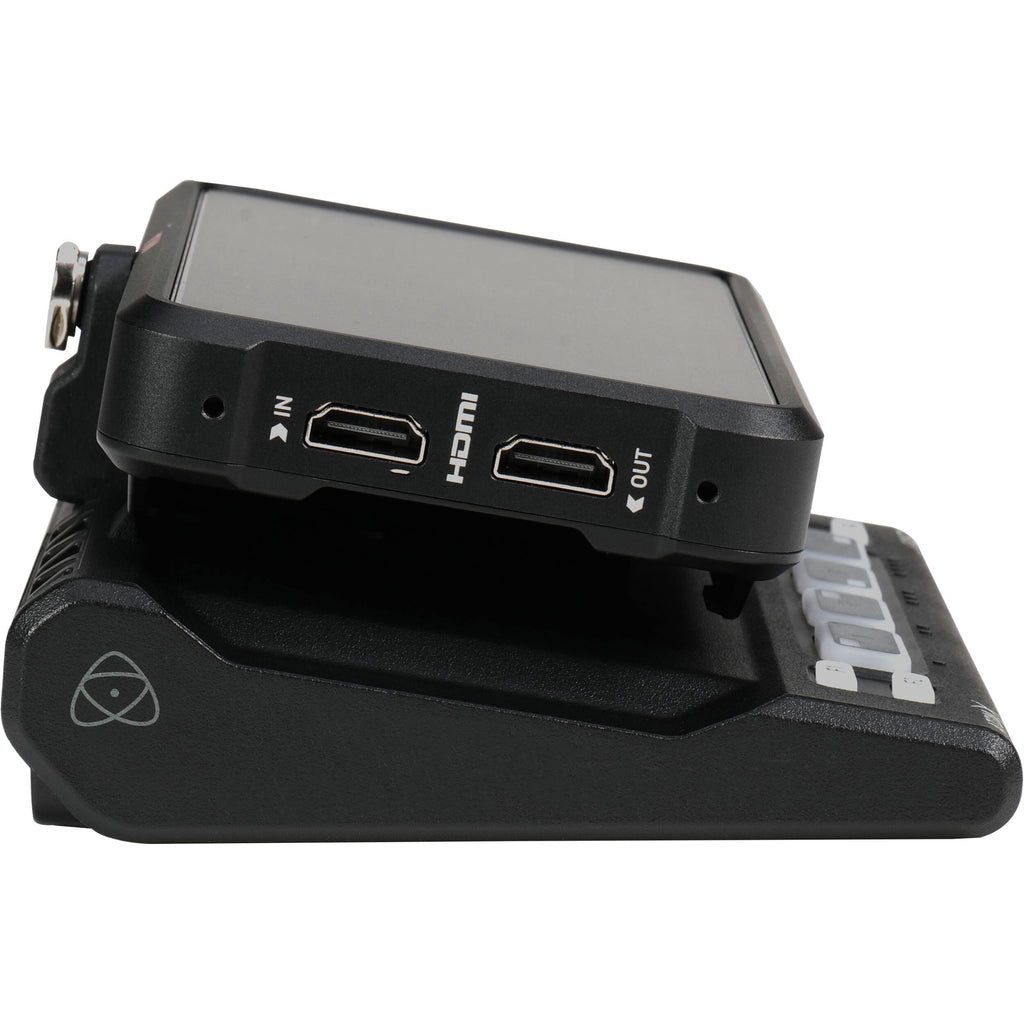

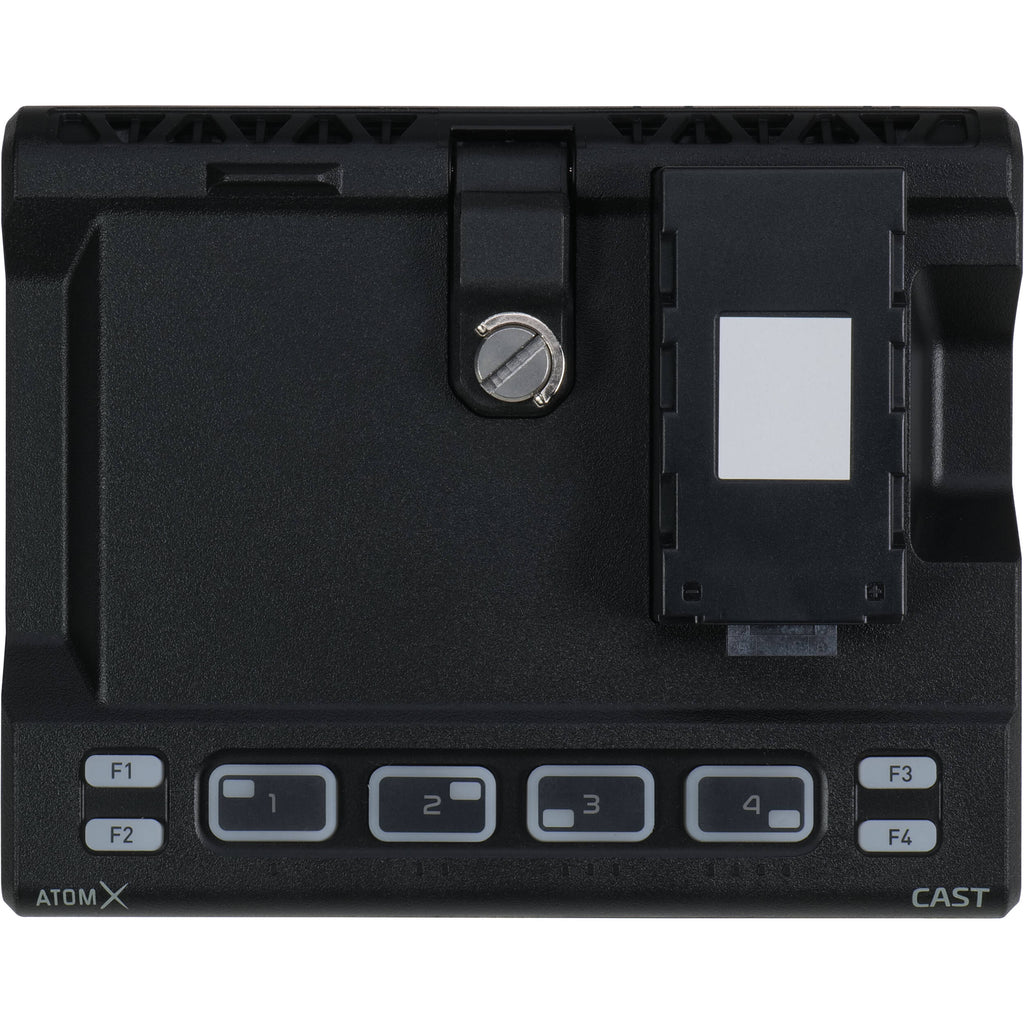

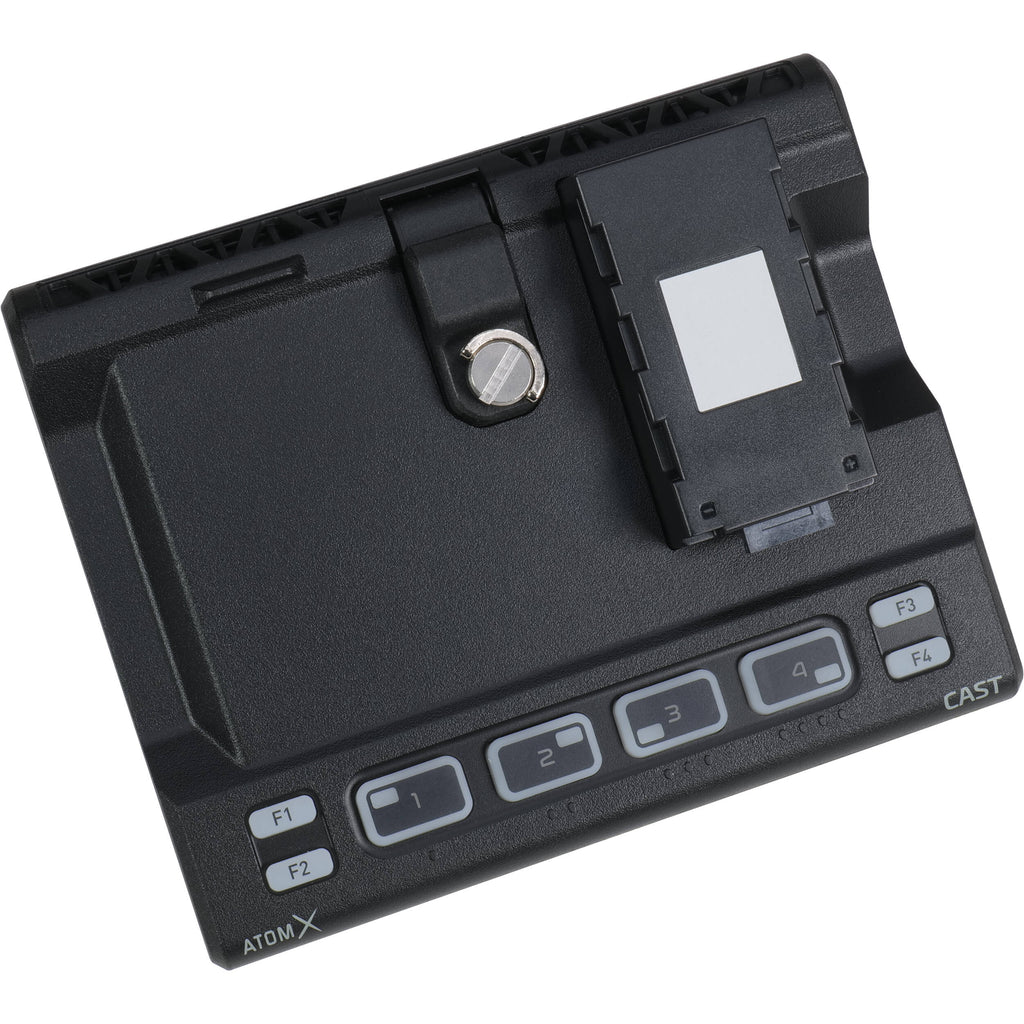

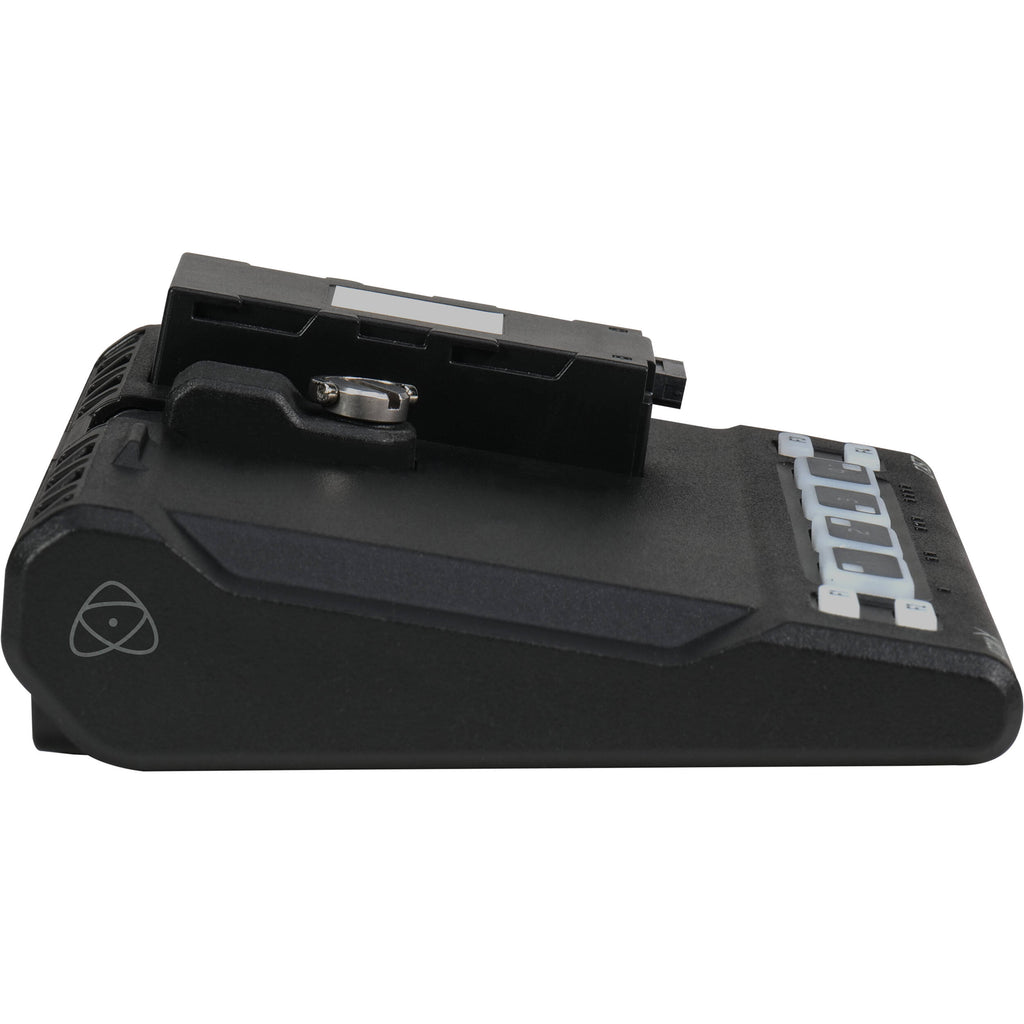

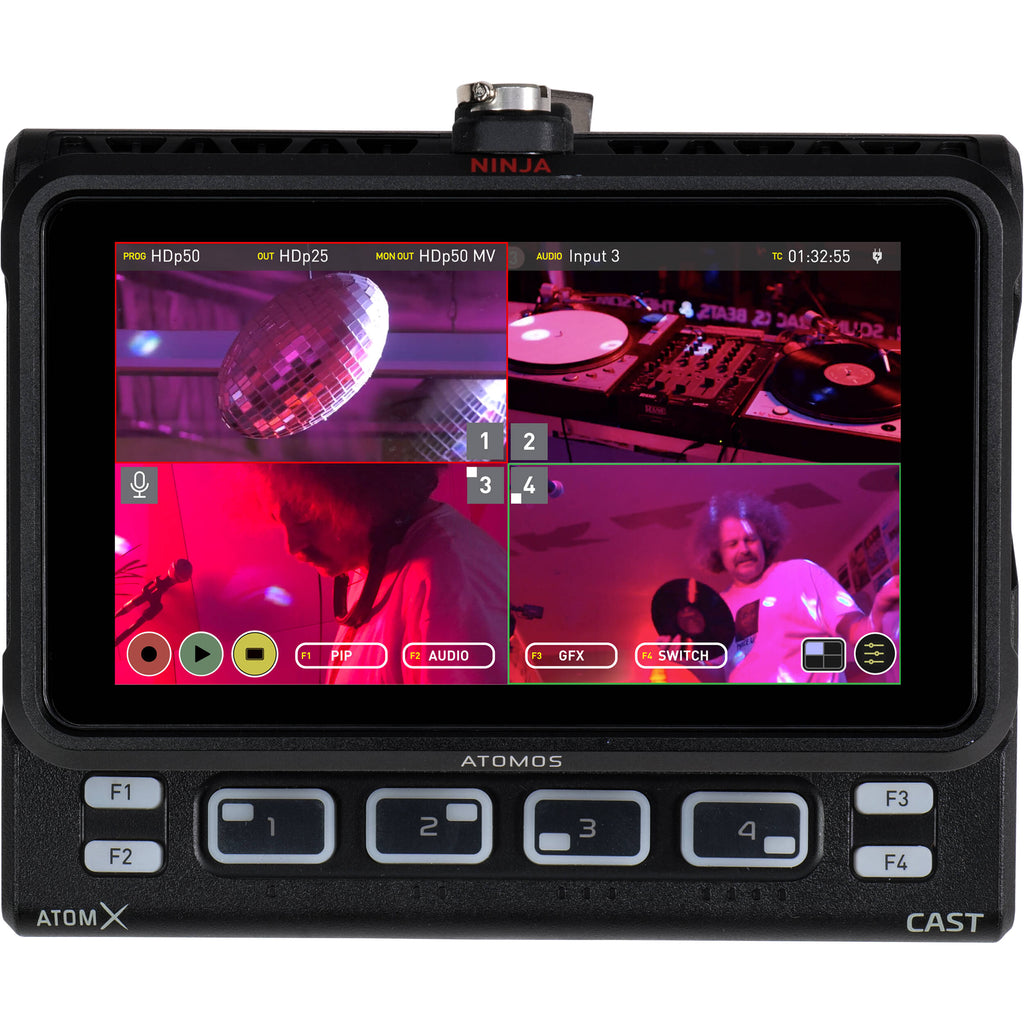

The CAST is specially designed to mount onto the back of the Ninja V/V+ monitor, and it provides four HDMI inputs that support a mix of different resolutions up to 1080p60. The touchscreen monitor can view a single image, Picture-in-Picture, or 4-Up modes, and you can also add logos and graphic overlays. It can send Program, Preview, Picture-in-Picture, and 4-Up displays to the HDMI output. You can select the source for monitor/output using the four source buttons, and you can also select the source using the monitor touchscreen. There are also four programmable function buttons to perform specific shortcuts.
The monitor allows you to preview your broadcast while simultaneously outputting to a recorder, a monitor, a projector, or when using the optional AtomX Connect for live streaming using a computer. It also supports recording output to ProRes and Avid DNx formats. It is compatible with most streaming platforms such as Skype, Zoom, Teams, and more using UVC with the included USB Type-C cable. The CAST is powered using the power adapter included with your Ninja V/V+, and it passes the power on to the monitor through the battery mount.
Compatibility
4-Input Switcher
Mixed Feed Use
Overlays & Graphics
Atomos Connect Streaming
Multiviewing
HDMI Output
Stream, Record & Monitor
Buttons & Touchscreen
Applications
- Live streaming
- Simultaneously recording live events
- Multicamera productions
- Corporate events and meetings
- Music, awards, and performance events
- Weddings and family events
In the Box
- Atomos AtomX CAST for Ninja V/Ninja V+
- USB Type-C Cable
- AtomX SSD Mini Handle
- Limited 1-Year Warranty
Firmware Updates
2 Available, Latest Oct '21
- Description
- Compatibility
- 4-Input Switcher
- Mixed Feed Use
- Overlays & Graphics
- Atomos Connect Streaming
- Multiviewing
- HDMI Output
- Stream, Record & Monitor
- Buttons & Touchscreen
- Applications
Atomos AtomX Cast Specs
| Compatibility | Atomos Ninja V Atomos Ninja V+ |
| Panel Type | LCD |
| Size | Not Specified by Manufacturer |
| USB | 1 x USB Type-C Female Output |
| Video | 4 x HDMI Type A Input 1 x HDMI Type A Output |
| Power Source | AC Input |
| DC Input Power | 6.2 to 16.8 VDC |
| Mounting | Bottom: 1 x 1/4"-20 Bottom: 1 x 3/8"-16 |
| Material of Construction | Plastic |
| Dimensions | 6.3 x 5.1 x 1.9" / 160 x 129 x 49 mm |
| Weight | 1.1 lb / 485 g |
| Package Weight | 1.98 lb |
| Box Dimensions (LxWxH) | 9.5 x 6.8 x 2.8" |
