Description

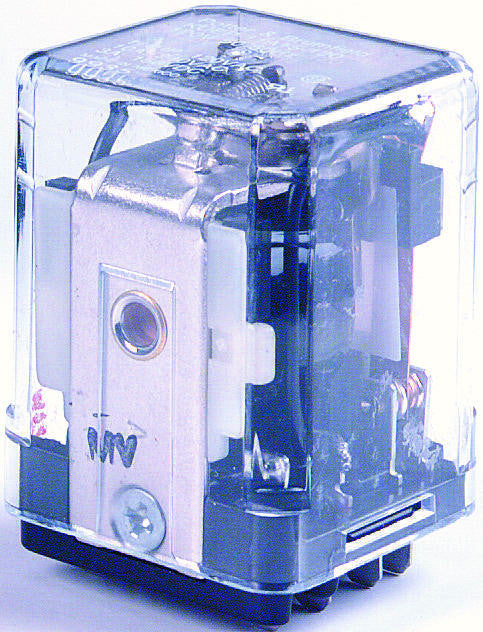

This is a RELAY, DPDT, 240VAC, 32VDC, 10A product from POTTER&BRUMFIELD - TE CONNECTIVITY with the model number KUP-11D15-110
Product details
| Contact Material | Silver Cadmium Oxide |
| Relay Mounting | Socket |
| Coil Type | Non Latching |
| Coil Resistance | 10kohm |
| Product Range | KUP Series |
| Relay Terminals | Quick Connect |
| Contact Current | 10A |
| Approvals & Standards | CSA, UL |
| Contact Voltage VAC | 240VAC |
| Coil Voltage | 110VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | 32VDC |
Other details
| Brand | POTTER&BRUMFIELD - TE CONNECTIVITY |
| Part Number | KUP-11D15-110 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
