Description

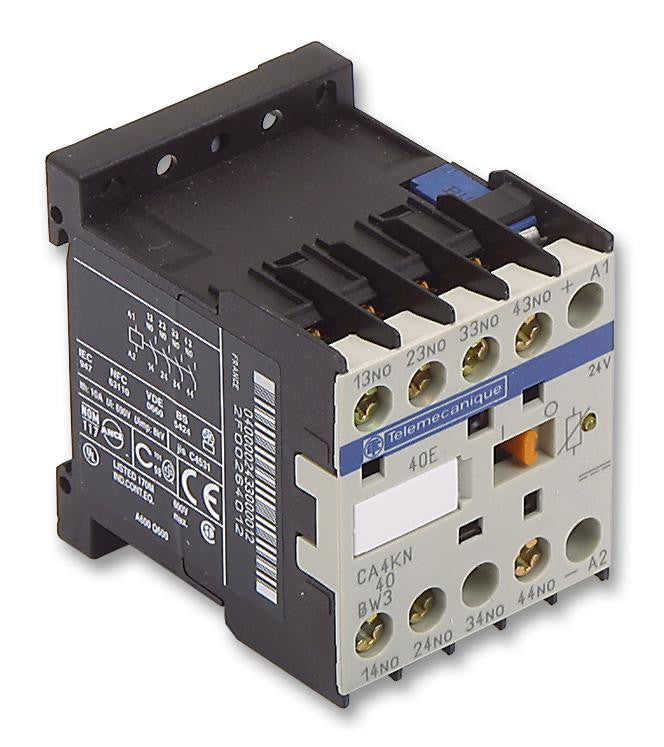

The CA4KN40BW3 is a 4-pole IEC type industrial Control Relay with DC coil, K-Line series, 4NO contact configuration. Built-in bidirectional peak limiting diode suppressor. Serrated silver-nickel contacts with wiping action provide excellent reliability in 12 or 24V control circuits. Mounted on 35mm DIN 3 track, but can also be mounted directly to a panel. Screw clamp terminal. Low consumption versions of this relay are available for use with low level DC signals from a computer or a PLC.
- IP2x Protection rating
- Green premium product
Applications
Industrial, Power Management, Automation & Process Control
Product details
| Contact Material | - |
| Relay Mounting | DIN Rail, Panel |
| Coil Type | DC |
| Coil Resistance | - |
| Product Range | CA Series |
| Relay Terminals | Screw |
| Contact Current | 10A |
| Approvals & Standards | - |
| Contact Voltage VAC | 600VAC |
| Coil Voltage | 24VDC |
| Contact Configuration | 4PST-NO |
| Contact Voltage VDC | - |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | CA4KN40BW3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
