Description

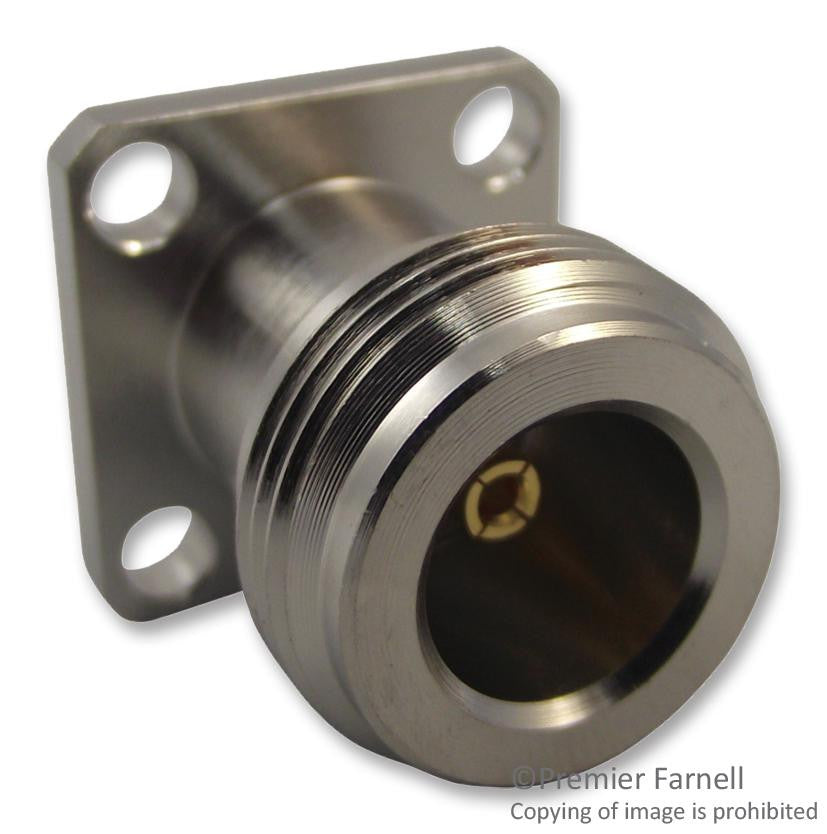

The 172117 is a RF Connector, N-type series, N-type straight jack with gold-plated phosphor bronze contacts and solder contact termination. Body made up of brass with white bronze finish and PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical.
- Threaded coupling mechanism
- 4-hole Flange mount
- Standard polarity
- Standard thread direction
- 5000MR Minimum insulation resistance
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Sensing & Instrumentation, Wireless
Product details
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Connector Type | N Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Panel Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 11GHz |
Other details
| Brand | AMPHENOL CONNEX |
| Part Number | 172117 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
