Description

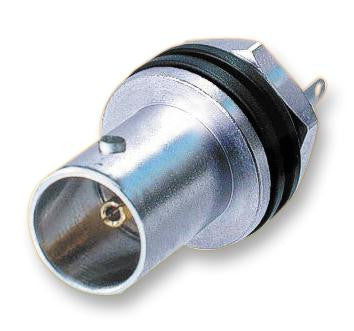

The NBB75SI is an Isolated BNC Cable Jack with brass contacts and bayonet locking device. This solder version BNC cable jack for panel mount offers a true 75R design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use. Isolated panel mount solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential.
- Gold plated cage type centre contact
- True 75R design meets stringent HD requirements
- Isolated panel mount
- Grounded panel mount possible (remove isolation washer)
- <=3mR Contact resistance (inner)
- <=2mR Contact resistance
- >5GR Insulation resistance
- <50V Voltage rating
- -30 to +80�C Temperature range
Applications
Audio
Product details
| Contact Material | Brass |
| Contact Plating | Gold Plated Contacts |
| Connector Type | BNC Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Panel Mount |
| Connector Body Style | Straight Bulkhead Jack |
| Coaxial Cable Types | - |
| Impedance | 75ohm |
| Product Range | - |
| Frequency Max | 3GHz |
Other details
| Brand | NEUTRIK |
| Part Number | NBB75SI |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1393.88 |
| 3-5 | ₹ 1379.66 |
| 5-10 | ₹ 1351.21 |
| 10+ | ₹ 1322.77 |
Bulk discount will be automatically applied during checkout based on quantity.
