Description

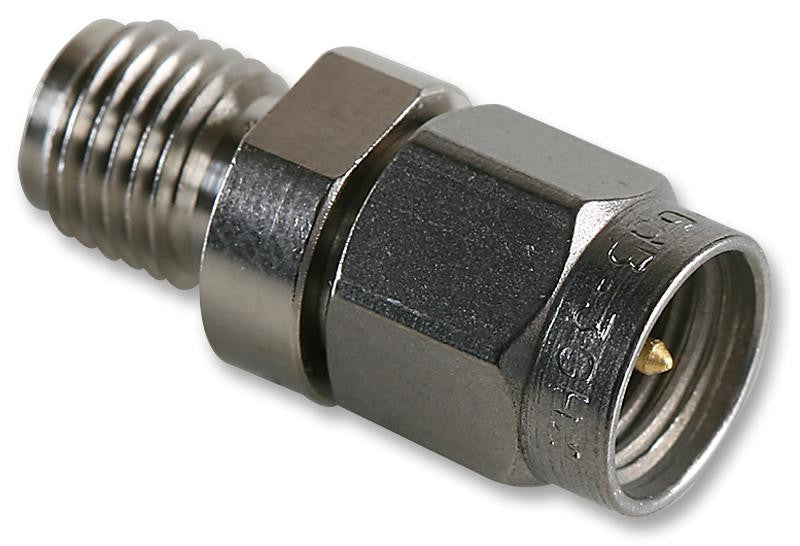

The R411806124. is a 6GHz 6dB SMA Attenuator with gold over nickel plated beryllium copper female center contact, gold over nickel plated brass male center contact and nickel-plated brass body. This attenuator has PTFE insulation, cable mounting, thick film resistor, sub miniature coaxial connectors, screw-on coupling and high RF performance.
- Wide hermetically sealed range
- Meets MIL-C-39012, EC 169-1, CECC 22110, CECC 22111 - 801 to 808 and BS 9210 N006 standards
- 50R Nominal impedance
- 100W Peak power
- 1W Average power
- -40 to 85�C Temperature range
Applications
Communications & Networking, Test & Measurement, Aerospace, Defence, Military
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | SMA Coaxial |
| Coaxial Termination | - |
| Connector Mounting | Cable Mount |
| Connector Body Style | - |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 6GHz |
Other details
| Brand | RADIALL |
| Part Number | R411806124 |
| Quantity | Each |
| Technical Data Sheet EN |  |
