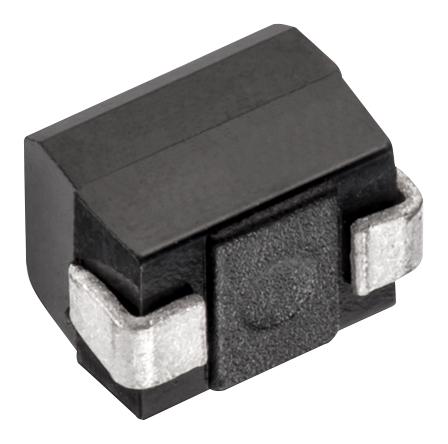

Wurth Elektronik 7447669115 7447669115 Wirewound Inductor 15 µH 0.535 ohm 27 MHz 800 mA 1812 [4532 Metric] WE-GFH

The WE-GFH series from Wurth Elektronik are high frequency wire wound chip inductors. Typical applications of these inductors are acoustic filtering, HF filtering circuits.

• 4532 case style
• Inductance value range from 1µH to 220µH
• Rated current range from 200mA to 1.9A
• DC resistance value range from 81mohm to 7.2ohm
• Q factor is 35 and self resonant frequency is 27MHz
• Operating temperature range from -40°C to 125°C
• High rated current with low DC resistance

Other details

Brand	WURTH ELEKTRONIK
Part Number	7447669115
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
