BGSA149MN10 is an ultra small antenna tuning SP4T with resonance stoppers. It is single-pole four throws (SP4T) antenna tuning switch optimized for RF applications up to 7.125GHz. It is made of 4 low ON resistance / low OFF capacitance series switches and 4 shunt to ground switches enabling on-demand open-reflective or short-reflective OFF ports behaviour. This last feature is of great value to reduce antenna engineer development time in case of unwanted antenna resonance or to improve antenna efficiency with less component tuning effort. Potential applications includes impedance, antenna and Inductance tuning, tenable filters.
- Low RON resistance of 1.5ohm in ON state
- Low COFF capacitance of 80fF in OFF state
- RF operating voltage handling 50V in OFF state
- MIPI RFFE 2.1 control interface
- Support both 1.8V and 1.2V VIO operation
- External USID-SEL pin enabling 4 default USID addresses
- Small form factor 0.95 mm x 1.3 mm (260 °C per JEDEC J-STD-020)

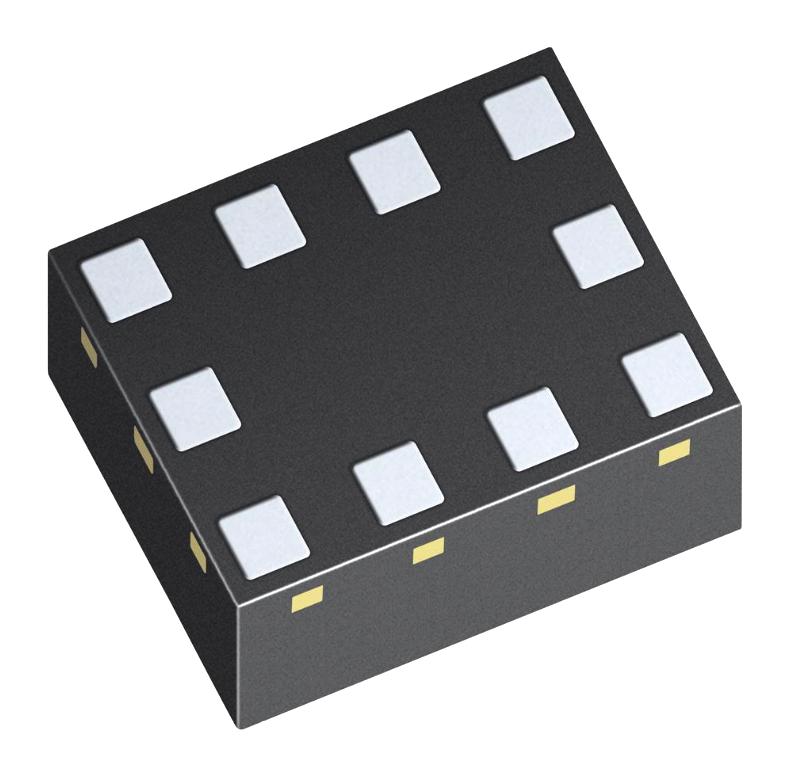

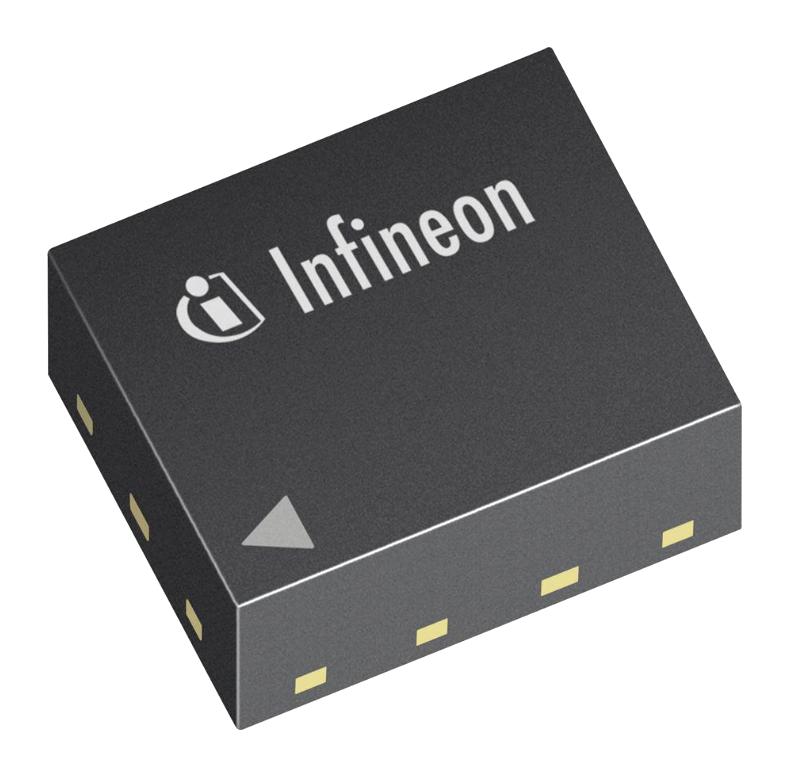

- TSNP-10-9 package
Product details
| Frequency Min:
-
|
| Frequency Max:
7.125GHz
|
| RF IC Case Style:
TSNP
|
| No. of Pins:
10Pins
|
| Supply Voltage Min:
-
|
| Supply Voltage Max:
-
|
| Operating Temperature Min:
-
|
| Operating Temperature Max:
-
|
| Product Range:
-
|
| Automotive Qualification Standard:
-
|
Other details
| Brand |
INFINEON |
| Part Number |
BGSA149MN10E6327XTSA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
