ASK single conversion receiver version 3.0 suitable for keyless entry systems, remote control systems, alarm systems and low bitrate communication systems application.
- Low supply current (Is = 4.8mA typ. at 868MHz, Is = 4.6mA typ. at 434MHz)
- Power down mode with very low supply current (50 nA typ)
- Fully integrated VCO and PLL synthesizer
- RF input sensitivity < - 107dBm
- Selectable frequency ranges around 868-870MHz and 433-435MHz
- Selectable reference frequency
- Limiter with RSSI generation, operating at 10.7MHz
- 2nd order low pass data filter with external capacitors
- Data slicer with self-adjusting threshold
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
TDA5200XUMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| EOL Notices EN |
|

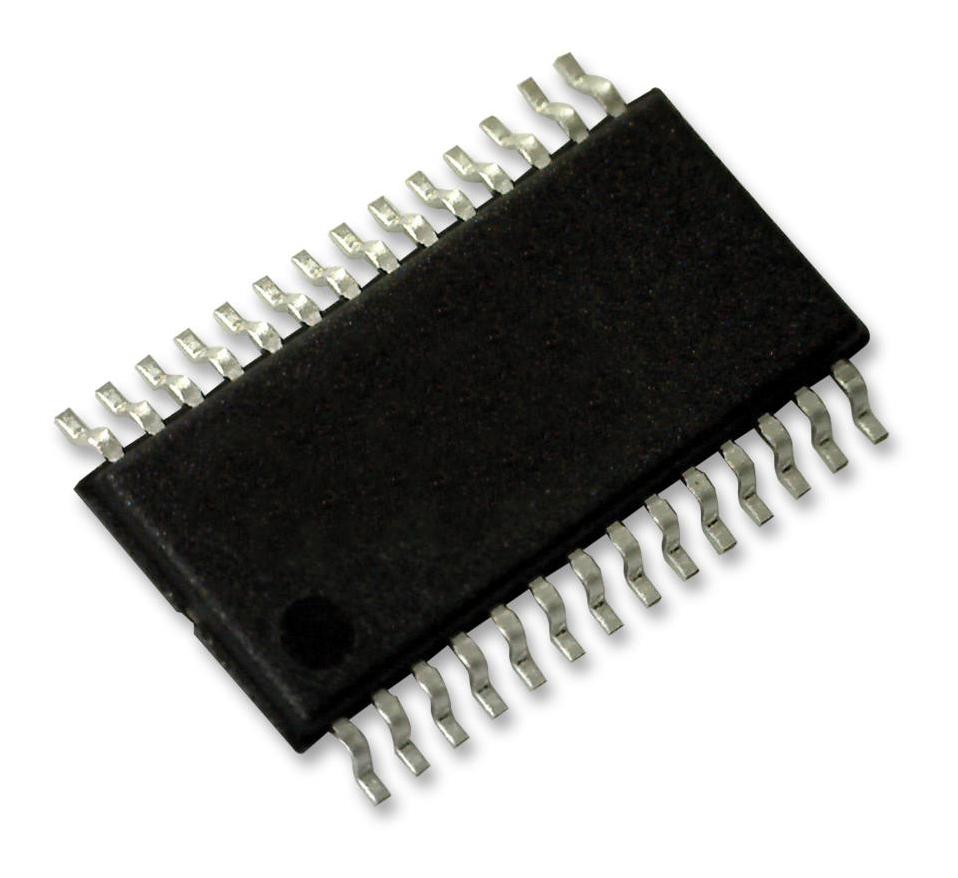

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
