Description

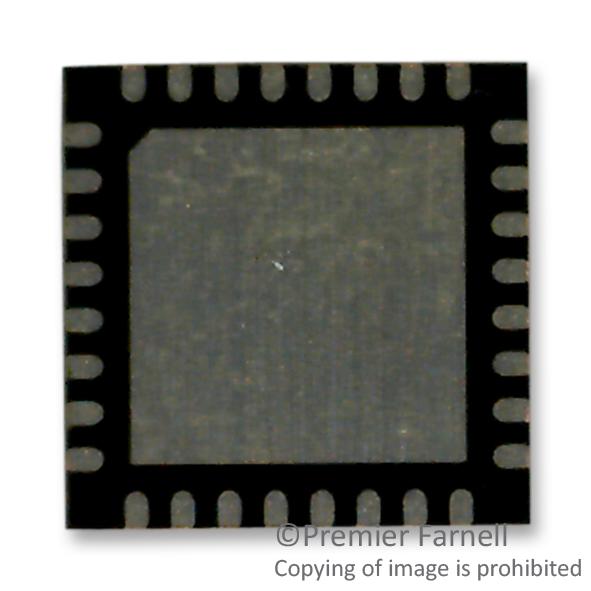

This is a RF Transceiver, 769MHz to 935MHz, BPSK, O-QPSK, 1Mbps, 10dBm Out/-110dBm In, 1.8V to 3.6V, QFN-32 product from MICROCHIP with the model number AT86RF212B-ZU
Product details
| Frequency Min | 769MHz |
| Frequency Max | 935MHz |
| RF / IF Modulation | BPSK, O-QPSK |
| Data Rate | 1Mbps |
| Receiving Current | 9.2mA |
| RF IC Case Style | QFN |
| No. of Pins | 32Pins |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.6V |
| Transmitting Current | 18mA |
| Output Power (dBm) | 10dBm |
| Sensitivity dBm | -110dBm |
| RF Transceiver Applications | Energy Harvesting, Wireless Sensor Network, 6LoWPAN systems, Industrial Control, Health Care |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| RoHS Phthalates Compliant | Yes |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | AT86RF212B-ZU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
