Microchip ATWINC1500B-MU-T RF Transceiver 72.2 Mbps 2.412 to 2.484 GHz 2.7 V 3.6 -95 dBm QFN-40 -40 °C 85

This is a ATWINC1500B-MU-T RF Transceiver , 72.2 Mbps, 2.412 to 2.484 GHz, 2.7 V to 3.6 V, -95 dBm, QFN-40, -40 °C to 85 °C product from MICROCHIP with the model number ATWINC1500B-MU-T

Product details

Data Rate	72.2Mbps
RF / IF Modulation	BPSK, CCK, DBPSK, DQPSK, OFDM, QAM, QPSK
Frequency Min	2.412GHz
Frequency Max	2.484GHz
Receiving Current	61A
RF IC Case Style	QFN
No. of Pins	40Pins
Supply Voltage Min	2.7V
Supply Voltage Max	3.6V
Transmitting Current	265mA
Output Power (dBm)	17dBm
Sensitivity dBm	-95dBm
RF Transceiver Applications	2.4 GHz ISM Band, 802.11 b/g/n, Radio/Baseband/MAC Network Controller
Operating Temperature Min	-40°C
Operating Temperature Max	85°C
Product Range	-
MSL	MSL 3 - 168 hours

Other details

Brand	MICROCHIP
Part Number	ATWINC1500B-MU-T
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

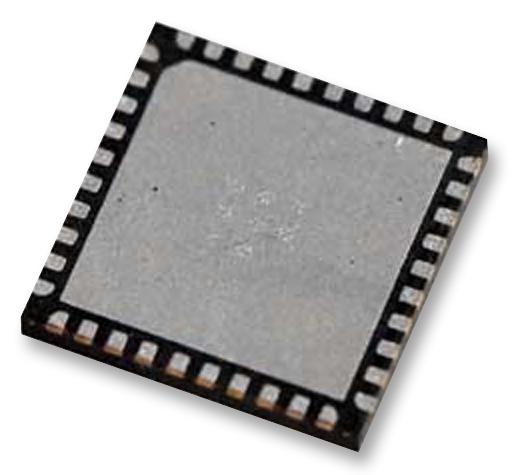

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
