Description

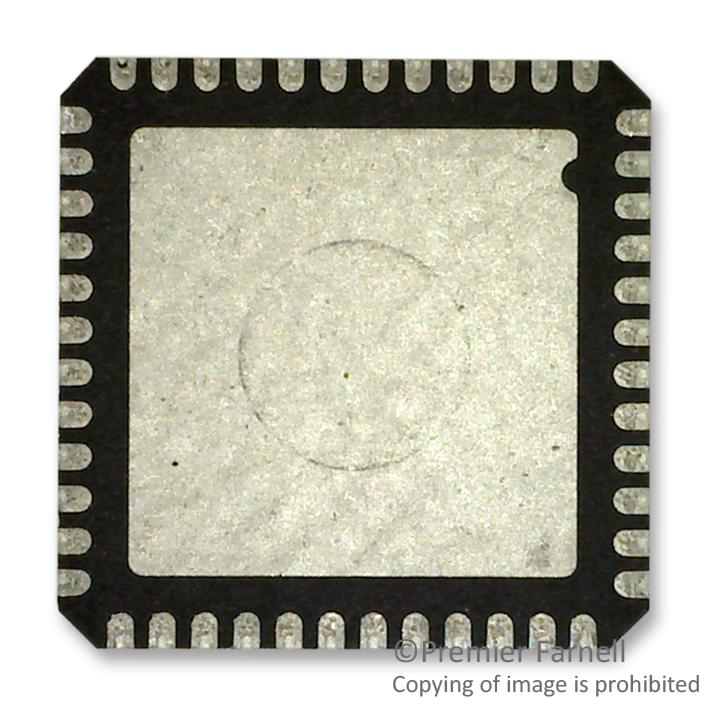

This is a RF Transceiver, 2.4GHz to 2.483GHz, GFSK, 2Mbps, 4dBm out, -85dBm in, 1.8V to 3.6V, QFN-48 product from NORDIC SEMICONDUCTOR with the model number NRF51422-QFAA-R7
Product details
| Frequency Min | 2.4GHz |
| Frequency Max | 2.483GHz |
| RF / IF Modulation | GFSK |
| Data Rate | 2Mbps |
| Receiving Current | 13.4mA |
| RF IC Case Style | QFN |
| No. of Pins | 48Pins |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 3.6V |
| Transmitting Current | 16mA |
| Output Power (dBm) | 4dBm |
| Sensitivity dBm | -85dBm |
| RF Transceiver Applications | Personal Area N/W, Remote Control Toys, Home/Industrial Automation, Environmental Sensor N/W, RFID |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 75°C |
| Product Range | - |
| RoHS Phthalates Compliant | To Be Advised |
| MSL | MSL 2 - 1 year |
Other details
| Brand | NORDIC SEMICONDUCTOR |
| Part Number | NRF51422-QFAA-R7 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
