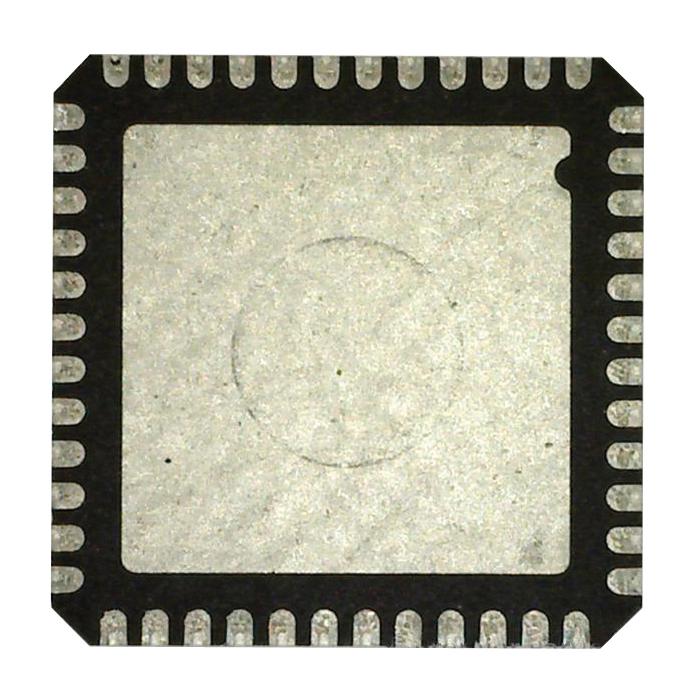

The nRF51422 is an ultra-low power 2.4GHz wireless System on Chip (SoC) integrating the nRF51 series 2.4GHz transceiver, a 32bit ARM® Cortex-M0 CPU, flash memory and analog and digital peripherals. nRF51422 supports ANT, Bluetooth® low energy and a range of proprietary 2. GHz protocols, such as Gazell from Nordic Semiconductor.
- 2.4GHz transceiver
- ARM® Cortex-M0 32bit processor
- S200 and S300 series SoftDevice ready
- On-air compatibility with nRF24L series
- Flexible power management
- 8/9/10 bit ADC - 8 configurable channels
- 31 general purpose I/O pins
- One 32 bit and two 16 bit timers with counter mode
- Low power comparator
- Temperature sensor
- I2C compatible
- UART (CTS/RTS)
- CPU independent Programmable Peripheral Interconnect (PPI)
- Quadrature decoder (QDEC)
- AES HW encryption
- Real timer counter (RTC)
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
NORDIC SEMICONDUCTOR |
| Part Number |
NRF51422-QFAC-R7 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
