Description
The AS213-92LF is a MEDIUM power IC FET SPDT Switch features low insertion loss (0.4dB at 2.4GHz) and positive voltage operation with very low DC power consumption. It operates with 1.8V control voltage.
- PHEMT process
- Isolation 22dB at 2.4GHz
Applications
Communications & Networking
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| No. of Pins | 6Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Frequency Max | 3GHz |
| Supply Voltage Min | 1.8V |

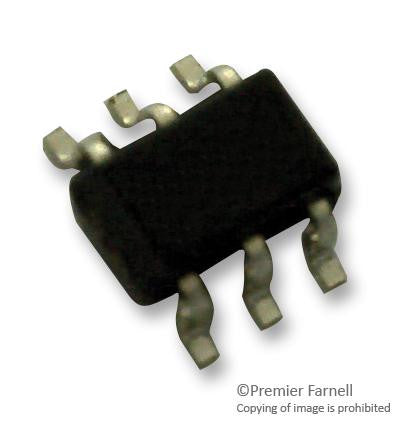

| RF IC Case Style | SC-70 |
| Packaging | Cut Tape |
| Frequency Min | 100MHz |
| Supply Voltage Max | 5V |
| MSL | - |
Other details
| Brand | SKYWORKS SOLUTIONS |
| Part Number | AS213-92LF |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
