Texas Instruments CC115LRGPR CC115LRGPR IF Transmitter 300MHz to 928MHz 2FSK 4FSK Gfsk OOK 600Kbps 12dBm 1.8V 3.6V QFN-20

The CC115LRGPR is a sub-1GHz RF Value Line Transmitter for the 300 to 348, 387 to 464 and 779 to 928MHz frequency bands. The circuit is based on the popular CC1101 RF transceiver and RF performance characteristics are identical. Two CC110L transceivers together enable a bidirectional RF link. The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 600kbps. The CC110L provides extensive hardware support for packet handling, data buffering and burst transmissions. The main operating parameters and the 64bytes receive and transmit FIFOs of CC110L can be controlled through a serial peripheral interface (SPI). In a typical system, the CC110L will be used together with a microcontroller and a few additional passive components.

• Programmable output power up to +12dBm
• Receive sensitivity down to -116dBm at 0.6kbps
• Programmable data rate from 0.6 to 600kbps
• Flexible support for packet oriented systems
• 200nA Sleep mode current consumption
• Fast startup time, 240µs from sleep to RX or TX mode
• 64bytes RX and TX FIFO
• High sensitivity
• 20dBm Output power at 868MHz
• 26dBm Output power at 915MHz
• Support for asynchronous and synchronous serial transmit mode for backward compatibility

Applications

RF Communications, Wireless, Security, Industrial, Automation & Process Control, Motor Drive & Control

Other details

Brand	TEXAS INSTRUMENTS
Part Number	CC115LRGPR
Quantity	Each (Supplied on Cut Tape)

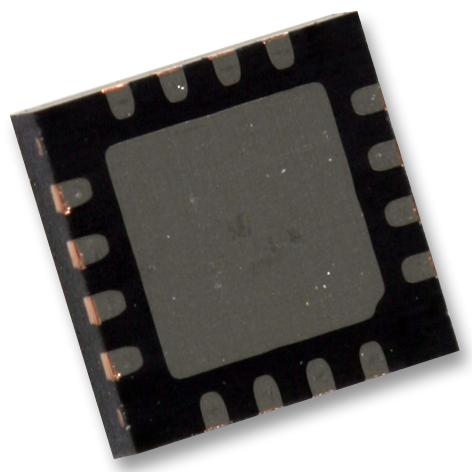

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
