Texas Instruments CC2590RGVT IF Transmitter ISM 2.4GHz to 2.4835GHz 22.1mA/14dBm Output 2V 3.6V Supply QFN-16

The CC2590RGVT is a 2.4GHz Range Extender for use with all ISM band systems. CC2590 is a cost-effective and high performance RF Front End for low-power and low-voltage 2.4GHz wireless applications. CC2590 is a range extender for all existing and future 2.4GHz low-power RF transceivers, transmitters and system-on-chip products from Texas Instruments. CC2590 increases the link budget by providing a power amplifier for increased output power and an LNA with low noise figure for improved receiver sensitivity. CC2590 contains PA, LNA, switches, RF-matching and balun for simple design of high performance wireless applications.

• Up to +14dBm (25mW) output power
• 6dB typical improved sensitivity on CC24xx and CC2500, CC2510 and CC2511
• Digital control of LNA gain by HGM pin
• 100nA in Ppower down
• 22mA at 3V for 12dBm, PAE = 23% low transmit current consumption
• 3.4mA for High gain mode, 1.8mA for low gain mode low receive current consumption
• 4.6dB LNA Noise figure, including T/R switch and external antenna match

Applications

RF Communications, Wireless, Industrial, Audio, Consumer Electronics

Other details

Brand	TEXAS INSTRUMENTS
Part Number	CC2590RGVT
Quantity	Each (Supplied on Cut Tape)

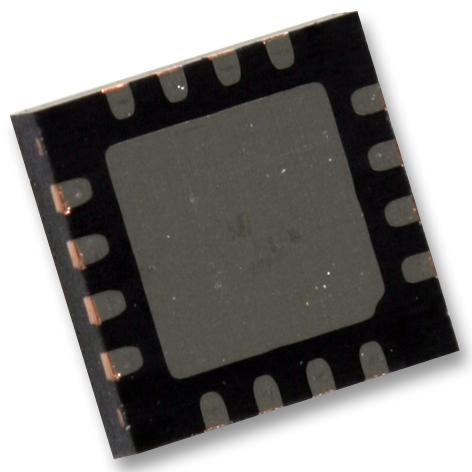

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
